SpecterOS 3.0 3X Combat Optical Sight ATOS3 w/"Rapid Aiming Feature" Reticle


bullet

- Eye relief (Cheekweld) and bore sighting remain constant

bullet

- Large, low light exit pupil remains constant

bullet

- High efficiency coatings for extended low light performance

bullet

- Integrated lever-lock mount for optimum weight reduction

bullet

- Rugged, Reliable Performance

bullet

- Shock Protected Precision Optics

bullet

- One Year Warranty

    An affordable Weapon Sight designed specifically for Military, Homeland Security, Police and Security Professionals. Built to the same legendary rugged standards as other ELCAN® weapon sighting systems, the SpecterOS is a shock and water-resistant sight that will withstand the forces generated by repeated recoil.

ATOS3.0A 5.56 Ballistic RAF Reticle w/M16 Handle Mount

ATOS3.0A2
5.56 Ballistic RAF Reticle w/Picatinny "Flat Top" Mount


ATOS3.0B 5.56 Ext. Ballistic Adj. RAF Reticle w/M16 Handle Mount

ATOS3.0B2
5.56 Ext. Ballistic Adj. RAF Reticle w/Picatinny "Flat Top" Mount

We accept Gov't Credit Cards and can submit invoices online Law Enf./Gov't: Call for Quote

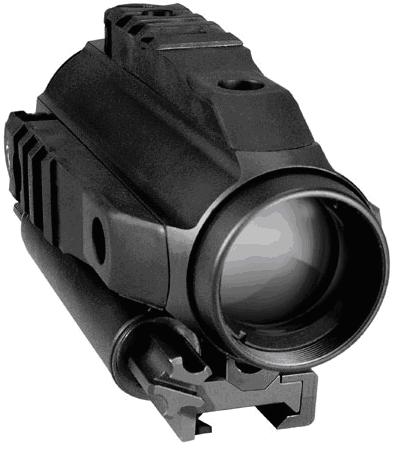

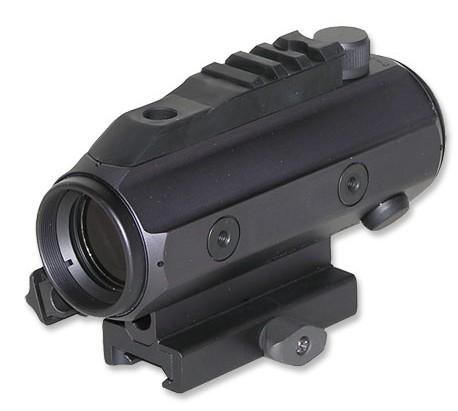

Click to enlargeThe SpecterOS3.0 family of 3X Optical Combat Rifle Sights is also marketed as ATOS3.0 in certain markets. Designed as a lighter and more compact replacement for the 3.4x series of rifle sights, the SpecterOS features internal zeroing adjustment (in the optical assembly, rather than in the mount assembly) and models are supplied with either a M16 Handle Mount or Picatinny "Flat Top" Mount.


     All ATOS3.0 sights feature rubber bumpers as well as the proprietary RAF Rapid Aiming Feature Ballistic Reticle that provides ideal accommodation for both long range and CQB applications. Reticles are illuminated with a battery-powered LED and may be user adjusted through a broad range of visible and Night Vision compatible settings.
The 'B' series features 'marksman' elevation and windage adjustments calibrated for popular NATO 5.56 military cartridges. All are available with an optional Anti-Reflection Device (ARD). Comes with one-year warranty.

The SpecterOS 3.0 is a lightweight and rugged 3x Optical Sight designed for modern military and security applications. Incorporating an illuminated reticle with a range finder, the SpecterOS 3.0 has the unique ability to offer rapid engagement in CQB applications while providing precise aiming at distant targets. A one-piece aluminum housing coupled with shock-absorbing rubber bumpers enable the sight to withstand the severe stresses of modern combat operations. Supplied with either a Ballistically Calibrated Reticle or External Elevation & Windage adjustments, and may be mounted directly to flat-top receivers or M16/AR15 handles. Optional MIL-STD-1913 auxiliary mounting rails enable flexible mounting solutions for other accessories.

     Once sighted-in to a particular weapon, the sight may be interchanged with other ELCAN® optical and electro-optical sights zeroed for the same weapon in a matter of seconds and without noticeable change in point of impact.

The SpecterOS 3.0 is built to stringent quality assurance standards in Canada’s most advanced optical manufacturing facility and is specifically designed for use by the most demanding customers.

System Technical Specifications

Optics

Eye Relief
  66mm
FOV
  6º
Exit Pupil   8mm
Fixed Focus Range
 20m to infinity (≈ 21 yards)
Adjustment Range
 120 Minutes of Angle
Adj. Resolution
 0.5 MOA (Minute of Angle)
Magnification
 3.1X Nominal

Reticle

 Weapon Types: 5.56
 M4, M16, MK46, M249
Ballistic Calibration
 200 to 600m for 5.56 NATO (in reticle)
Models A & A2
 5.56 NATO (in Reticle)
Models B & B2
 100m-600m external adjustment for 5.56 or 7.62  (others available)
Reticle
 Dual-Thickness crosshair w/RAF Rapid Aiming Feature
Illumination Source
 Battery Powered LED
Illumination Settings
 11 Visible, 3 Night Vision

Physical Characteristics

Weight
 lbs. (415g), oz.
Size in mm
 135mm x  65mm w/bumpers x 77mm w/bumpers
Size in inches
 L=5.3" x W=2.56" x H=3.03"
Internal Battery
 CR123, 3V Lithium
Base Requirement
 MIL-STD-1913 "Picatinny Rail" or AR15/M16 Carry Handle
Attachment
 Single wing nut w/return to zero repeatability
Battery Life
 3.1 Years, typical
Exterior Finish
 Black Anodized Aluminum
Operating Temp
 -50°F to +120°F
Waterproof
 66' for 2 hours
Shockproof
 450 g's
Options
 Rubber Bumpers, MIL-STD-1913 Rails, Lens Covers, ARD

ELCAN is proud of its reputation as a one-stop solution provider to defense and homeland security customers.  In addition to the SpecterOS, SpecterIR, SpecterRD, SpecterDR, SpecterCT, and PhantomIR products listed on our site, ELCAN is also able to design and manufacture custom rifle sights and “next-generation” fire control systems for our military and commercial customers.  Their experience in merging the best minds with the latest technologies makes ELCAN the best mission partner for developing advanced, cost-effective sighting systems.

Specter sighting systems by Elcan employ the highest precision optics, rugged mechanical designs and battle-tested electronics to provide the modern soldier with rapid target acquisition and engagement for "first sight/first action" capabilities. Professionals entrusted with the security of industrial and nuclear facilities, border patrol, or base security can also count of Specter sights for a superior advantage in protecting homeland security.

NOTE: Specter and PhantomIR sighting systems are advanced technologies that are subject to export licensing and International Traffic in Arms Regulations (ITAR). Please contact your ELCAN Sales Manager for further information on technology restrictions and product availability.

 As an integrated component of the next generation of advanced observation and civil defense requirements, the SpecterOS exemplifies the commitment to ongoing product development and optical excellence at ELCAN Optical Technologies. ELCAN is part of the Raytheon Commercial Electronics group of companies.

  In "High-Risk" security applications (Nuclear Plants, Oil Refineries and Pipelines, Water Treatment Plants, Port Authorities, Penitentiary Facilities), government law enforcement agencies can more effectively locate, identify and neutralize hostile threats with reduced risk.
