CS PVS-7   Night Vision Goggle     Gen 3   SKU# 45013 / Gen 2+  SKU# 45012

3 Years Tube Warranty/5 Year System Warranty ***Best Warranty on the market***

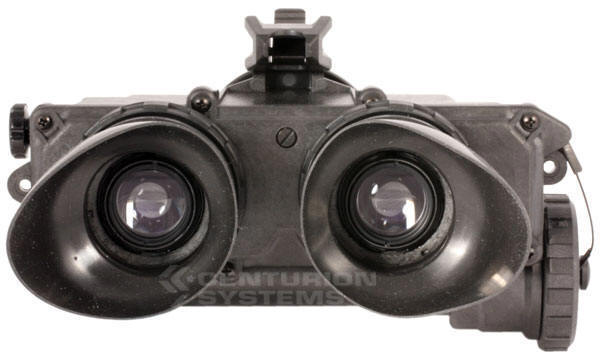

     The Centurion Systems CS-PVS-7
    ...is
engineered to meet MIL-SPEC requirements and standards. The rugged and reliable design ideally accommodates users for extended wear and superior surveillance functions. This NV goggle has an integrated IR illuminator with an IR “on” indicator, low battery indicator, excess light exposure cut-off sensor and other features. The model is based on the most advanced image intensifiers, with 64-72 lp/mm and a Figure of Merit of no less than 1600.

The  CS PVS-7 (ITT5001 Series PVS-7B) uses a MILSPEC PVS-7 housing and incorporates the new GEN III image intensifier tube. With the use of a single  image tube (2 Grades to choose from) and a dual eye configuration, the CSPVS-7 provides outstanding Night Vision performance without the high cost of the Dual tube configuration.

     It features simple user controls and fully automated image tube protection. This system allows the user to have complete freedom of movement while maintaining equilibrium and balance in a hands free application. The CSPVS-7  also incorporates an infrared illuminator with a momentary and continuous on switching function. Infrared operation and low battery indicators are displayed within the user‘s field of view.

     Interpupillary adjustment (distance between eyes) can be made as well as an Objective Lens Focus. With the separate Diopter adjustment rings (left/right eye focus) users get unparalled comfort and optimum vision. Intricate tasks "close work" such as reading and repair are facilitated using the infrared LED on the body of the goggle.

     Optional accessories include a 3x or 5x magnifier lens to facilitate field conversion for long-range observation/surveillance. Infrared Spot Lights covertly illuminate large areas for the Night Vision, just as regular Spotlights do for visible enhancement. Flashing Beacons create an infrared/visible signal to mark shorelines for Boaters  or campsites for Hikers & Hunters. For Security Details, the Beacons can be carried in a pocket to keep your client covertly marked, even in large crowds at night.  The slip-on Magnetic Compass provides directional information in the field of view.

   These are the choice for many Law Enforcement Agencies, Homeland Security Teams, Fire Departments  and Private Security Firms because of their battle proven effectiveness with our own US Military.

The Centurion Systems CS-PVS-7 is engineered to meet MIL-SPEC requirements and standards. The rugged and reliable design ideally accommodates users for extended wear and superior surveillance functions. This NV goggle has an integrated IR illuminator with an IR “on” indicator, low battery indicator, excess light exposure cut-off sensor and other features. The model is based on the most advanced image intensifiers, with 64-72 lp/mm and a Figure of Merit of no less than 1600. Optional 3x or 5x magnifier lenses available.

bullet

Lightweight & Waterproof

bullet

Rugged Design & Easy to Operate

bullet

Automatic Brightness Control

bullet

Head or Helmet Mountable for "Hands-Free" Operation

bullet

100% US Made Components

bullet

Interpupillary Adjustments between 55 - 71mm

bullet

Automatic Highlight (Bright Source) Protection

bullet

Integrated IR illuminator


Magnification, х

1

Field of view, deg

  40

Lens system

27mm F/1.2

Interpupillary Distance, mm

55 – 71 mm

Focus range, in

10” to infinity

Eye relief, mm

15mm

Diopter setting, D

+2 to -6

Overall dimensions, in

7.4” x 4” x 6”

Weight, oz

18 oz

Battery type / Feed voltage

(2) AA battery or (1) BA-5567 (3V)

Battery life, hour

up to 40

Image Intensifier

GEN III US

GEN II US

Resolution, typical, lp/mm

64

up to 64

Photocathode sensitivity, min, uA/Lm

1600−2000

600−800

Tube reliability standard, hour

10000

5000

Warranty, year

2

Detection range, ~ m / yard − quarter moon / − cloud cover

325/360 & 225/245

200/220 & 125/140

Recognition range, ~ m / yard  − quarter moon / − cloud cover

225/245  & 150/165

175/195 & 100/110

Operating temperature, °C / °F

−50 to +55 / −58 to +131

Storage temperature, °C / °F

0 to +60 / +32 to +140




Accessories   NSN
274424 Mich Helmet Front clip for A3256368
274897-1 Front Bracket Kit, (Mich Helmet)
274479-1 Face Mask Assembly, Headmount (accepts Flip-Up Helmet Mount
275131-1 Helmet Mount RBR, Flip-Up, Front & Rear Clips, Adjustable Straps
275306-1 Helmet Mount MICH, Flip-Up, Front & Rear Clips, Adjustable Straps
275418-1 Floating Neck Strap (USCG)
3144263-1 Demist Shield PVS-7(each)
5009737 Filter, Light Interference 5855-01-379-1410
A3144264 Sacrificial Filter (PVS-7) 5855-01-240-8271
A3144268 Headmount Assembly 5855-01-246-8266
A3144318 Objective Cap
A3144422 Eyeshield
A3187430 Compass, Magnetic (PVS-14, PVS-7, Envis)
A3187441 IR Spot/Flood Lens  (50yds) (PVS-7)
A3256368 PASGT Helmet Mnt, w/chin strap(PVS-7,PVS-14) strapped or bolted 5855-01-457-2953
A3256369 Helmet Mnt, Flip-Up Bracket Only), Attach to NVD
HC-7 Hard Case, Ship/Store
ML-3 Afocal, 3X Lens, (f/1.5) 13deg FOV 5855-01-461-2741
ML-5  Afocal, 5X Lens, (f/2.4) 7.7deg FOV (550-1503-001) 5855-01-391-7026
