AR-2A MSRP: $1,763.00 - $4,002.00
LE/Govt.: $1,414.00 - $3,197.35
We will beat ANY advertised price!
Dual Beam Aiming LASER

The third generation DBAL-A³ is equipped with an infrared pointer, an infrared pointer/illuminator and your choice of a Red Super Power Point or Green Ultra Power point visible pointer, which is FIVE times more visible than traditional red lasers.

The DBAL-A³ provides the same overall functionality as its predecessor, the DBAL-A², but with enhancements that include dual remote cable ports that incorporate the OPERATIVE OV-2 tactical light by plugging the supplied Y-cable into both the light and the visible override port on the back of the laser housing. Pressing the Y-cable pressure pad will simultaneously activate the tactical and the visible laser. The second pressure pad, plugged into the standard port, will activate the infrared laser functions. This unique feature allows for immediate transition from low light to daylight operations by simply choosing which pressure pad to activate.

Designed to meet MIL-STD-810G requirements for extreme environmental conditions, the DBAL-A³ provides users with the utmost advantage in ever-changing battlefield conditions.

This lightweight, waterproof unit is equipped with your choice of Red or Green LASER. The Green Ultra Power Point LASER is designed for maximum daytime visibility and clear, crisp visibility at night. The Green LASER offers faster target acquisition and is FIVE times more visible than traditional Red LASER's. A third option involves an Infrared pointer, which meets MIL-STD-810G for reliability under harsh environmental conditions, is available to Law Enforcement and Military agencies only.

Manufactured in the USA using the finest quality materials, with a 1 Year Warranty.

EXPORT LICENSE REQUIRED.
Infrared lasers are restricted to Military & Law Enforcement agencies only.

Features

* Available in Black, Foliage Green or Desert Sand
* Rugged aerospace aluminum housing, MIL-SPEC Type III Hardcoat anodized
* Hi-Power and Lo-Power modes of operation
* ESD Compliant for air worthiness
* Fully adjustable for Windage and Elevation
* Single adjustment mechanism for both Visible and IR pointers
* Meets MIL-STD-810G for adverse environmental conditions
* Activation/Low Battery indicator light (123A Battery only)
* Dual remote cable ports incorporate the OV-2 Tactical Lights
        ◊ Override remote cable switch activates the visible laser and tactical light simultaneously
        ◊ Standard remote cable switch activates the infrared functions
        ◊ Single tap for momentary activation,
        ◊ Double tap for Continuous ON mode for 5 minutes or until pressed again
* Optional Optical Diffuser and Neutral Density Filter Available
* Waterproof to 20 Meters

Supplied with:
* Quick-Release Mount,
* 7" Remote Cable Pressure Pad Switch (Specify length if different)
* Dual Remote Cable Pressure Pad Switch
* Optical Pattern Generators NSN: 1240-01-537-0496
* Nylon Pouch
* (1) 3-Volt 123A Lithium Battery (Optional 1.5-Volt AA Battery available on some models

DBAL-A³

* IR Pointer (<50mW)

* Choice of
* IR Pointer/Illuminator (<50mW)
* IR Pointer/Illuminator (<200mW)

* Choice of

* Red Visible Pointer 635nm (<5mW)

* Red Visible Pointer 642nm (65mW)
* Green Visible Pointer (<5mW, <30mW or <50mW)

Part#	Description	MSRP	Gov't Price
40095 Black	DBAL-A³ - w/Visible Red Pointer (<5mW) IR Pointer (<50mW) & IR Pointer/Illuminator (<50mW), Black, 3-Volt 123A Lithium Battery	~~$1,763.00~~	$1,414.00
40095A Black	DBAL-A³ - w/Visible Red Pointer (<5mW) IR Pointer (<50mW) & IR Pointer/Illuminator (<50mW), Black, AA Battery	~~$1,763.00~~	$1,414.00
40095F Foliage Green	DBAL-A³ - w/Visible Red Pointer (<5mW) IR Pointer (<50mW) & IR Pointer/Illuminator (<50mW), Foliage Green, 3-Volt 123A Lithium Battery	~~$1,763.00~~	$1,414.00
40095FA Foliage Green	DBAL-A³ - w/Visible Red Pointer (<5mW) IR Pointer (<50mW) & IR Pointer/Illuminator (<50mW), Foliage Green, AA Battery	~~$1,763.00~~	$1,414.00
40095D Desert Sand	DBAL-A³ - w/Visible Red Pointer (<5mW) IR Pointer (<50mW) & IR Pointer/Illuminator (<50mW), Desert Sand, 3-Volt 123A Lithium Battery	~~$1,763.00~~	$1,414.00
40095DA Desert Sand	DBAL-A³ - w/Visible Red Pointer (<5mW) IR Pointer (<50mW) & IR Pointer/Illuminator (<50mW), Desert Sand, AA Battery	~~$1,763.00~~	$1,414.00

50300 Black	DBAL-A³ - w/Visible Red Pointer (<5mW) IR Pointer (<50mW) & IR Pointer/Illuminator (<200mW), Black, 3-Volt 123A Lithium Battery	~~$2,315.00~~	$1,854.10
50300F Foliage Green	DBAL-A³ - w/Visible Red Pointer (<5mW) IR Pointer (<50mW) & IR Pointer/Illuminator (<200mW), Foliage Green, 3-Volt 123A Lithium Battery	~~$2,315.00~~	$1,854.10
50300D Desert Sand	DBAL-A³ - w/Visible Red Pointer (<5mW) IR Pointer (<50mW) & IR Pointer/Illuminator (<200mW), Desert Sand, 3-Volt 123A Lithium Battery	~~$2,315.00~~	$1,854.10

50301 Black	DBAL-A³ - w/Visible Red Pointer (642nm)(<65mW) IR Pointer (<50mW) and IR Pointer/Illuminator (<50mW), Black, 3-Volt 123A Lithium Battery	~~$2,331.00~~	$1,866.25
50301F Foliage Green	DBAL-A³ - w/Visible Red Pointer (642nm)(<65mW) IR Pointer (<50mW) and IR Pointer/Illuminator (<50mW), Foliage Green, 3-Volt 123A Lithium Battery	~~$2,331.00~~	$1,866.25
50301D Desert Sand	DBAL-A³ - w/Visible Red Pointer (642nm)(<65mW) IR Pointer (<50mW) and IR Pointer/Illuminator (<50mW), Desert Sand, 3-Volt 123A Lithium Battery	~~$2,331.00~~	$1,866.25

50302 Black	DBAL-A³ - w/Visible Red Pointer (642nm)(<65mW) IR Pointer (<50mW) and IR Pointer/Illuminator (<200mW), Black, 3-Volt 123A Lithium Battery	~~$2,883.00~~	$2,306.35
50302F Foliage Green	DBAL-A³ - w/Visible Red Pointer (642nm)(<65mW) IR Pointer (<50mW) and IR Pointer/Illuminator (<200mW), Foliage Green, 3-Volt 123A Lithium Battery	~~$2,883.00~~	$2,306.35
50302D Desert Sand	DBAL-A³ - w/Visible Red Pointer (642nm)(<65mW) IR Pointer (<50mW) and IR Pointer/Illuminator (<200mW), Desert Sand, 3-Volt 123A Lithium Battery	~~$2,883.00~~	$2,306.35

50303 Black	DBAL-A³ - w/Visible Green Pointer (<5mW) IR Pointer (<50mW) & IR Pointer/Illuminator (<50mW), Black, 3-Volt 123A Lithium Battery	~~$2,043.00~~	$1,636.75
50303F Foliage Green	DBAL-A³ - w/Visible Green Pointer (<5mW) IR Pointer (<50mW) & IR Pointer/Illuminator (<50mW), Foliage Green, 3-Volt 123A Lithium Battery	~~$2,043.00~~	$1,636.75
50303D Desert Sand	DBAL-A³ - w/Visible Green Pointer (<5mW) IR Pointer (<50mW) & IR Pointer/Illuminator (<50mW), Desert Sand, 3-Volt 123A Lithium Battery	~~$2,043.00~~	$1,636.75

50304 Black	DBAL-A³ - w/Visible Green Pointer (<5mW) IR Pointer (<50mW) & IR Pointer/Illuminator (<200mW), Black, 3-Volt 123A Lithium Battery	~~$2,604.00~~	$2,083.60
50304F Foliage Green	DBAL-A³ - w/Visible Green Pointer (<5mW) IR Pointer (<50mW) & IR Pointer/Illuminator (<200mW), Foliage Green, 3-Volt 123A Lithium Battery	~~$2,604.00~~	$2,083.60
50304D Desert Sand	DBAL-A³ - w/Visible Green Pointer (<5mW) IR Pointer (<50mW) & IR Pointer/Illuminator (<200mW), Desert Sand, 3-Volt 123A Lithium Battery	~~$2,604.00~~	$2,083.60

50305 Black	DBAL-A³ - w/Visible Green Pointer (<30mW) IR Pointer (<50mW) & IR Pointer/Illuminator (<50mW), Black, 3-Volt 123A Lithium Battery	~~$2,373.00~~	$1,900.00
50305F Foliage Green	DBAL-A³ - w/Visible Green Pointer (<30mW) IR Pointer (<50mW) & IR Pointer/Illuminator (<50mW), Foliage Green, 3-Volt 123A Lithium Battery	~~$2,373.00~~	$1,900.00
50305D Desert Sand	DBAL-A³ - w/Visible Green Pointer (<30mW) IR Pointer (<50mW) & IR Pointer/Illuminator (<50mW), Desert Sand, 3-Volt 123A Lithium Battery	~~$2,373.00~~	$1,900.00

50306 Black	DBAL-A³ - w/Visible Green Pointer (<30mW) IR Pointer (<50mW) & IR Pointer/Illuminator (<200mW), Black, 3-Volt 123A Lithium Battery	~~$2,966.00~~	$2,372.50
50306F Foliage Green	DBAL-A³ - w/Visible Green Pointer (<30mW) IR Pointer (<50mW) & IR Pointer/Illuminator (<200mW), Foliage Green, 3-Volt 123A Lithium Battery	~~$2,966.00~~	$2,372.50
50306D Desert Sand	DBAL-A³ - w/Visible Green Pointer (<30mW) IR Pointer (<50mW) & IR Pointer/Illuminator (<200mW), Desert Sand, 3-Volt 123A Lithium Battery	~~$2,966.00~~	$2,372.50

50307 Black	DBAL-A³ - w/Visible Green Pointer (<50mW) IR Pointer (<50mW) & IR Pointer/Illuminator (<50mW), Black, 3-Volt 123A Lithium Battery	~~$3,449.00~~	$2,757.25
50307F Foliage Green	DBAL-A³ - w/Visible Green Pointer (<50mW) IR Pointer (<50mW) & IR Pointer/Illuminator (<50mW), Foliage Green, 3-Volt 123A Lithium Battery	~~$3,449.00~~	$2,757.25
50307D Desert Sand	DBAL-A³ - w/Visible Green Pointer (<50mW) IR Pointer (<50mW) & IR Pointer/Illuminator (<50mW), Desert Sand, 3-Volt 123A Lithium Battery	~~$3,449.00~~	$2,757.25

50308 Black	DBAL-A³ - w/Visible Green Pointer (<50mW) IR Pointer (<50mW) & IR Pointer/Illuminator (<200mW), Black, 3-Volt 123A Lithium Battery	~~$4,002.00~~	$3,197.35
50308F Foliage Green	DBAL-A³ - w/Visible Green Pointer (<50mW) IR Pointer (<50mW) & IR Pointer/Illuminator (<200mW), Foliage Green, 3-Volt 123A Lithium Battery	~~$4,002.00~~	$3,197.35
50308D Desert Sand	DBAL-A³ - w/Visible Green Pointer (<50mW) IR Pointer (<50mW) & IR Pointer/Illuminator (<200mW), Desert Sand, 3-Volt 123A Lithium Battery	~~$4,002.00~~	$3,197.35
Gov't Only	Green = (532nm) Red = (635nm) IR = (835nm) unless otherwise specified
Military Only

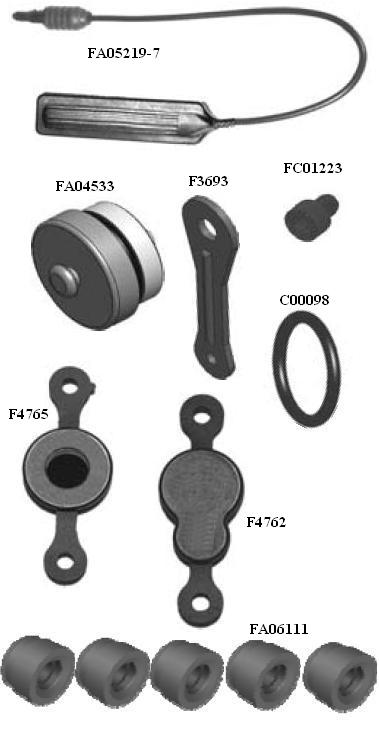

Accessories

Part#	Description	MSRP	Gov't Price
FA05219-7	Remote Cable Switch - 7" Black	$ 68.00	$54.00
FA04533-01	Battery Cap, Black	$ 31.00	$24.30
FA04533-02	Battery Cap, Foliage Green	$ 31.00	$24.30
FA04533-03	Battery Cap, Desert Sand	$ 31.00	$24.30
F3693-01	Battery Cap Strap, Black	$ 5.00	$4.05
F3693-02	Battery Cap Strap, Foliage Green	$ 5.00	$4.05
F3693-03	Battery Cap Strap, Desert Sand	$ 5.00	$4.05
FC01223	Safety Screw - Hexagon Head, Blue	$ 5.00	$4.05
C00098	O-Ring, Black	$ 3.00	$2.70
F4765-01	Exit Port Cover Single Beam, Black	$ 7.00	$5.40
F4765-02	Exit Port Cover Single Beam, Foliage Green	$ 7.00	$5.40
F4765-03	Exit Port Cover Single Beam, Desert Sand	$ 7.00	$5.40
F4762-01	Exit Port Cover Dual Beam, Black	$ 7.00	$5.40
F4762-02	Exit Port Cover Dual Beam, Foliage Green	$ 7.00	$5.40
F4762-03	Exit Port Cover Dual Beam, Desert Sand	$ 7.00	$5.40
FA05233-01	Pattern Generators (Set of 5), Black	$34.00	$27.00
FA05233-02	Pattern Generators (Set of 5), Foliage Green	$34.00	$27.00
FA05233-03	Pattern Generators (Set of 5), Desert Green	$34.00	$27.00
FA06111-01	DBAL-A2 Repair Parts Complete Kit, Black	$181.00	$144.45
FA06111-02	DBAL-A2 Repair Parts Complete Kit, Foliage Green	$181.00	$144.45
FA06111-03	DBAL-A2 Repair Parts Complete Kit, Desert Sand	$181.00	$144.45

Part#	Description	MSRP	Gov't Price
FA04461	Laser Attenuator Assembly with Key. Fits LAS/TAC, AR-2A, DBAL-Classic, ITAL-Classic & OTAL-Classic	$ 68.00	$54.00

Part#	Description	MSRP	Gov't Price
FA05233-01	Optical Pattern Generators, Black (Set of 5) for IR Pointer Fits DBAL-A² & DBAL-A³	$ 34.00	$27.00
FA05233-02	Optical Pattern Generators, Foliage Green (Set of 5) for IR Pointer Fits DBAL-A² & DBAL-A³	$ 34.00	$27.00
FA05233-03	Optical Pattern Generators, Desert Sand (Set of 5) for IR Pointer Fits DBAL-A² & DBAL-A³	$ 34.00	$27.00

Part#	Description	MSRP	Gov't Price
FA05238-01	80˚ Optical Diffuser, Black for IR Illuminator, Fits DBAL-A², DBAL-A³, DBAL-I², EOLAD-2, ITAL-A, ITAL-HP, OTAL-A, OTAL-HP	$ 14.00	$11.00
FA05238-02	80˚ Optical Diffuser, Foliage Green for IR Illuminator, Fits DBAL-A², DBAL-A³, DBAL-I², EOLAD-2, ITAL-A, ITAL-HP, OTAL-A, OTAL-HP	$ 14.00	$11.00
FA05238-03	80˚ Optical Diffuser, Desert Sand for IR Illuminator, Fits DBAL-A², DBAL-A³, DBAL-I², EOLAD-2, ITAL-A, ITAL-HP, OTAL-A, OTAL-HP	$ 14.00	$11.00

Part#	Description	MSRP	Gov't Price
FA05349-01	Neutral Density Filter, Black , for IR Pointer Fits DBAL-A² & DBAL-A³	$ 10.00	$8.50
FA05349-02	Neutral Density Filter, Foliage Green (Set of 5) for IR Pointer Fits DBAL-A² & DBAL-A³	$ 10.00	$8.50
FA05349-03	Neutral Density Filter, Desert Sand (Set of 5) for IR Pointer Fits DBAL-A² & DBAL-A³	$ 10.00	$8.50
