The
MILSPEC

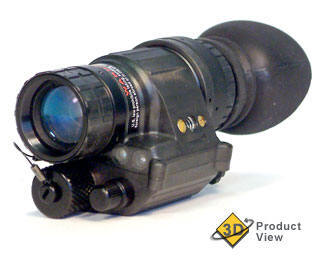

AN/PVS-14D Night Vision Monocular is the highest quality
available on the market today.
The
PVS-14D
is a hand-held pocket scope or can be head-mounted using either
left or right eye. Optional Accessories allow the monocular to
be Helmet-Mounted, Camera or Camcorder Mounted or even Weapon
Mounted.
When used with an Aimpoint or ATN Red Dot Sight, you
increase aiming accuracy. Either
mount the monocular directly behind the Red Dot Sight or Head
mount for continual visual enhancement and approach the sight
as necessary. Laser Aiming Systems offer the greatest sighting
accuracy by showing up as a straight white line to the target.
Tests showed significant clarity and sturdiness even
using Military .50 cal Sniper Rifles. This versatile Night
Vision System enables walking, driving, weapon firing,
short-range surveillance and map reading in both moonlight or
starlight conditions. IR illuminators and Spotlights greatly increase
your detection and recognition abilities for longer range surveillance
needs.
Each unit allows for vertical adjustment (by using
Headstraps), fore-and-aft adjustment, objective lens focus and
eyepiece focus for various levels of vision enhancement.
Automatic Brightness Control and Bright Source Protection are
standard.
The device is also equipped with an infrared
light-emitting source and the variable gain control allows the
user to increase or decrease image brightness for best
possible contrast. Higher magnification lenses (3X or 5X Afocal)
can be attached for even greater range. This device is also available
in other tube classifications and configurations, but if
versatility is what you are looking for, then
look no further.
Large Agency Orders and Bid Requests/Estimates,
please contact us for special price discounts.
*Mounting directly onto large caliber weapons (up to
.50 cal) is only recommended for the full MILSPEC PVS-14D. Recoil may
cause blooming spots to appear in lesser grades.
We also carry a large variety of:
 Infrared
Flashlights, Floodlights and Spotlights
Handheld
for covert tactical applications
 Aimpoint
Red Dot Aiming Sights
Crimson
Trace Laser Grips
|
|
hand held |
head mount |
camera mount |
1 eye |
2 eyes |
weapon mount |
short range |
medium range |
long range |
|
Am. Eagle III |
X |
|
X |
X |
|
|
X |
|
|
|
AN/PVS-7 |
X |
X |
|
|
X |
|
X |
|
|
|
AN/PVS-5 |
|
X |
|
|
X |
|
X |
|
|
|
4X RAPTOR |
|
|
|
X |
|
X |
|
X |
|
|
6X RAPTOR |
|
|
|
X |
|
X |
|
|
X |
|
AN/PVS-14 |
X |
X |
X |
X |
|
X |
X |
|
|
|
5X
BINOCULAR |
X |
|
|
|
X |
|
|
|
X |
|
PVS-7 w/ 3X |
X |
X |
|
|
X |
|
|
X |
|
|
PVS-7 w/ 5X |
X |
|
|
|
X |
|
|
|
X |
|
AN/PVS-14 variable gain
monocular |
|
Includes: |
Head mount assembly,
brow pads, sacrificial filter, demist shield, soft carry case,
shoulder strap, eye cup & lens paper. |
|
207117-1 |
F6015C - AN/PVS-14,
Omni-3 |
|
207117-2 |
F6015J - AN/PVS-14,
FOM1250 |
|
A3256337 |
F6015K - AN/PVS-14,
Omni-4 MILSPEC (Includes Helmet Mount-A3256368) |
|
A3256337-5 |
F6015L - AN/PVS-14,
Omni-5 MILSPEC |
|
270609 |
F6015P - AN/PVS-14, FOM 1600 |
|
A3256337-8 |
F6015UG -
AN/PVS-14, Pinnacle,
Thin-filmed, Gated P.S. |
|
274769-1 |
F6015JA -
AN/PVS-14, FOM 1250
Single Battery |
|
274769-2 |
F6015PA -
AN/PVS-14, FOM 1600
Single Battery |
|
Commercial |
PVS-14/6015 Monoculars |
|
Includes: |
Headmount Assy, MILSPEC 27mm Obj. Lens, (2) AA
Batteries, Soft Case, Eye cup, Day Cover, IR LED & OP Man |
|
FS-PVS-14 |
PVS-14 GEN III, 64lp/mm, Variable Gain |
|
FS-6015 |
6015 GEN III, 64 lp/mm |
|
AN/PVS-14 |
Accessories |
|
274897-1 |
Front Bracket Kit, (Mich Helmet) |
|
A3256368 |
Helmet Mount, w/chin strap(PVS-7,PVS-14) |
|
A3256347 |
Head/Helmet Mount Adapter (PVS-7/PVS-14/6015) |
|
ML-3 |
Afocal, 3X Lens, (f/1.5) 13deg FOV |
|
ML-5 |
Afocal, 5X Lens, (f/2.4) 7.7deg FOV
(550-1503-001) |
|
A3187430 |
Azimuth Indicator, Compass, Magnetic
(PVS-14/6015) |
|
M69 |
Picatinny Weapon Mount Adapter(PVS-14/6015) Adj.
Height |
|
A3256348 |
Weapons Mount, Fixed Height, PVS-14/6015 |
|
274049-1 |
Camera Adapter assy, 46mm to PVS-14 eye piece |
|
A3144422 |
Eyeshield |
|
A3256345 |
Eyeguard, Compress Star Opening |
|
A3256353 |
Demist Shield (PVS-14) |
|
A3144264 |
Sacrificial Filter |
|
ARMS#29 |
Picatinny Weapon Mount Adapter, 2 Height
Settings, Quick Detach |
|
SFK-14 |
Monocular Kit |
|
SFK-14 |
AN/PVS-14 kit
Headmount Assembly, 2 AA, OP Man, Soft Carry Case, Lens Cover,
Shipping Case, Sac Filter, Demist, LIF, Weapon Mount Assy,
Eyeguard, Compass, Helmet Mnt, IFF-980S & IR-14. |
|
5009737 |
Filter, Light
Interference |
|
SFK-14(V2) |
AN/PVS-14 kit plus
VITAL-2 |
|
SFK-14(V100) |
AN/PVS-14 kit plus
VITAL-100 |
 Enhanced PVS-14D Kit plus:
3X Magnifier
Helmet Mount
Weapon Mount
Phoenix Jr. IR Beacon
Shuttered Eyeguard
IFF-980S (Military Only)
Light Interference Filter (LIF) (Military Only) |
 |
|
|
|
|
System
Technical Specifications |
|
|
 |
|
|
|
|
|
|
Magnification
|
 |
1x
|
|
f-number
|
|
1.23
|
|
Field of View
|
|
40 degrees
|
|
Diopter Adjustment
|
|
-6 to +2
|
|
Eye Relief
|
|
25mm
|
|
Weight
|
|
13 oz.
|
|
Voltage
|
|
3.0 VDC
|
|
Power Source
|
|
(2) AA
|
|
Continuous Operation
|
|
>40 hours
|
|
IR Illuminator Range
|
|
~20 meters
|
|
Dimensions
|
|
2.25" x 2.5" x 5"
|
|
Warranty
|
|
1 Year
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Optional Accessories |
|
|
|
|
 Demist
Shield A3256353
(Prevents eyepiece from fogging)
|
 Sacrificial Filter
A3144264
(Protects Objective Lens) |
 Magnetic Compass
A3187430
Gives a directional display within the Night Vision
Image |
 Camera Adapter
Ring: 274049-1
46mm to PVS14 |

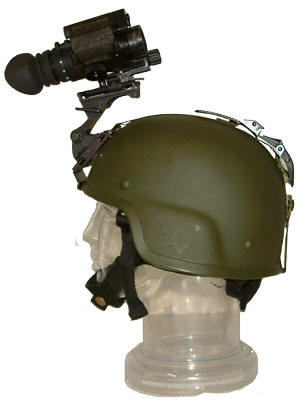

 Flip-up Helmet Mount
A3256368 |
 M69 Picatinny mount
adapter (adj. height) |
 Hard Case -
Large, Commercial
|
 3X
Magnifier Lens f/1.5, FOV:13º
|
 5X
Magnifier Lens f/2.4, FOV:7.7º
|
Aimpoint Red Dot Sights
Night Vision Compatible
10 Brightness Settings (4 Night
Vision / 5 Day + 1 Super Bright) |
 Rubber Eyeguard
(Compress w/Star Opening) |
|
Basic Kit Includes:
Head-Mount
Assembly, MILSPEC 27mm Objective Lens, Eyecup, 2 AA
Batteries, Operator's Manual, Soft Carrying Case, Daylight
Lens Cover, IR LED |
Photography & Surveillance
Kit1
KNV14PSK1
PVS14 + Basic Kit, 3X Afocal Magnifier,
Camera Adapter Assembly, Hard Case, Guardian or Phoenix Jr. IR
Beacon, KNVIR100 IR Spotlight |
Photography &
Surveillance Kit2
KNV14PSK2
PVS14 + Basic Kit, 5X Afocal Magnifier,
Camera Adapter Assembly, Hard Case, Guardian or Phoenix Jr. IR
Beacon, KNVIR100 IR Spotlight |
Photography &
Surveillance Kit3
KNV14PSK3
PVS14 + Basic Kit, 3X and 5X Magnifiers,
Camera Adapter Assembly, Large Hard Case w/foam
insert, Phoenix Jr. IR Beacon and Programmable VIPIR
or Phoenix Beacon |
Custom
Tactical Kits - we can customize a kit to fit
your specific needs, not someone else's
Aimpoint CompM2, CompM3 or other model
Crimson Trace Laser Grips (IR and Visible)
Pelican Hard Cases w/custom foam
Demist Shields and Sacrificial Filters
Slip-on Magnetic Compass
Rubber Eyeguard w/compress
star opening
Visible & IR Beacons and Markers
Visible & IR Spotlights, Flashlights
Weapons Mounts and Bases
PASGT Helmet Mounts
Mich Adapter Clips for Helmet Mounts
Laser Aiming Systems (Military Only)
Camera/Camcorder Adapters
3X or 5X Afocal Magnifiers |
|
|
|
