| System Technical Specifications | ||||||||||||||||||||||||||||||||||||||||||
 |
||||||||||||||||||||||||||||||||||||||||||
|
The PVS-14
Night Vision Monocular is a hand-held pocket scope or can be head-mounted using
either left or right eye. Optional Accessories allow the monocular to be
Helmet-Mounted, Camera or Camcorder Mounted.
When used as a Night Weapon Sight, attaching an
Aimpoint CompM2 or M3 Red Dot Sight
to your rifle adds greater accuracy and versatility by allowing the user
to head mount the Monocular for continual visual enhancement and approach the
sight as necessary. This versatile Night Vision System enables walking,
driving, weapon firing*, short-range surveillance
and map reading. Each unit allows for Vertical & Fore/Aft adjustments (Headstraps),
Objective Lens Focus and Eyepiece Focus for various levels of vision
enhancement.
Automatic Brightness Control and Bright Source
Protection are standard. The device is also equipped with an infrared
light-emitting source and the variable gain control allows the user to increase
or decrease image brightness for best possible contrast. Higher magnification
lenses (3X or 5X Afocal) can be attached for even greater range.
Long range infrared spotlights
offer a significant boost in recognition range without detection.
Model PVS-6015 provides
all the functions of the PVS14 except for variable gain control. This device is
also available in other tube classifications and configurations.
Large
Agency Orders and Bid Requests/Estimates, please contact us for special
price discounts.
*Mounting directly onto large caliber weapons (up to .50 cal) is only recommended for the full MILSPEC PVS-14D. Recoil may cause blooming spots to appear in lesser grades.
We also carry a large variety of:
Infrared
Flashlights, Floodlights and Spotlights
Handheld for covert tactical applications
Aimpoint
Red Dot Aiming Sights
Custom Tactical Kits - customize a kit to fit
your specific needs, not someone else's
Aimpoint
Red Dot or EOTech Holographic Sight
Pelican Hard Cases w/custom foam
Demist Shields and Sacrificial Filters
Slip-on Magnetic Compass
Shuttered Rubber Eyeguard
IR Beacons, Markers, Spotlights & Flashlights
Weapons Mounts, Rings, Rails and Bases
PASGT Helmet Mounts, MICH Adapters
Laser Aiming Systems (Military Only)
Camera/Camcorder Adapters
3X or 5X Afocal Magnifiers
| AN/PVS-14 variable gain monocular | |
| Includes: | Head mount assembly, brow pads, sacrificial filter, demist shield, soft carry case, shoulder strap, eye cup & lens paper. |
| 207117-1 | F6015C - AN/PVS-14, Omni-3 |
| 207117-2 | F6015J - AN/PVS-14, FOM1250 |
| A3256337 | F6015K - AN/PVS-14, Omni-4 MILSPEC (Includes Helmet Mount-A3256368) |
| A3256337-5 | F6015L - AN/PVS-14, Omni-5 MILSPEC |
| 270609 | F6015P - AN/PVS-14, FOM 1600 |
| A3256337-8 | F6015UG - AN/PVS-14, Pinnacle, Thin-filmed, Gated P.S. |
| 274769-1 | F6015JA - AN/PVS-14, FOM 1250 Single Battery |
| 274769-2 | F6015PA - AN/PVS-14, FOM 1600 Single Battery |
| Commercial | PVS-14/6015 Monoculars |
| Includes: | Headmount Assy, MILSPEC 27mm Obj. Lens, (2) AA Batteries, Soft Case, Eye cup, Day Cover, IR LED & OP Man |
| FS-PVS-14 | PVS-14 GEN III, 64lp/mm, Variable Gain |
| FS-6015 | 6015 GEN III, 64 lp/mm |
| AN/PVS-14 | Accessories |
| 274897-1 | Front Bracket Kit, (Mich Helmet) |
| A3256368 | Helmet Mount, w/chin strap(PVS-7,PVS-14) |
| A3256347 | Head/Helmet Mount Adapter (PVS-7/PVS-14/6015) |
| ML-3 | Afocal, 3X Lens, (f/1.5) 13deg FOV |
| ML-5 | Afocal, 5X Lens, (f/2.4) 7.7deg FOV (550-1503-001) |
| A3187430 | Azimuth Indicator, Compass, Magnetic (PVS-14/6015) |
| M69 | Picatinny Weapon Mount Adapter(PVS-14/6015) Adj. Height |
| A3256348 | Weapons Mount, Fixed Height, PVS-14/6015 |
| 274049-1 | Camera Adapter assy, 46mm to PVS-14 eye piece |
| A3144422 | Eyeshield |
| A3256345 | Eyeguard, Compress Star Opening |
| A3256353 | Demist Shield (PVS-14) |
| A3144264 | Sacrificial Filter |
| ARMS#29 | Picatinny Weapon Mount Adapter, 2 Height Settings, Quick Detach |
| SFK-14 | Monocular Kit |
| SFK-14 | AN/PVS-14 kit Headmount Assembly, 2 AA, OP Man, Soft Carry Case, Lens Cover, Shipping Case, Sac Filter, Demist, LIF, Weapon Mount Assy, Eyeguard, Compass, Helmet Mnt, IFF-980S & IR-14. |
| 5009737 | Filter, Light Interference |
| SFK-14(V2) | AN/PVS-14 kit plus VITAL-2 |
| SFK-14(V100) | AN/PVS-14 kit plus VITAL-100 |
| New Item |
| Military Only |
| Optional Accessories |
|
|
 Demist
Shield A3256353(Prevents eyepiece from fogging) |
 Sacrificial
Filter A3144264(Protects Objective Lens) |
 Magnetic
Compass A3187430Gives a directional display within the Night Vision Image |
 Camera
Adapter Ring: 274049-1
46mm to PVS14 |
 Flip-up
Helmet Mount A3256368 |
 M69
Picatinny mount adapter (adj. height) |
 Hard
Case - Large, Commercial
|
 3X
Magnifier Lens f/1.5, FOV:13º |
 5X
Magnifier Lens f/2.4, FOV:7.7º |
 Aimpoint Red Dot Sights Night Vision Compatible 10 Brightness Settings (4 Night Vision / 5 Day + 1 Super Bright) |

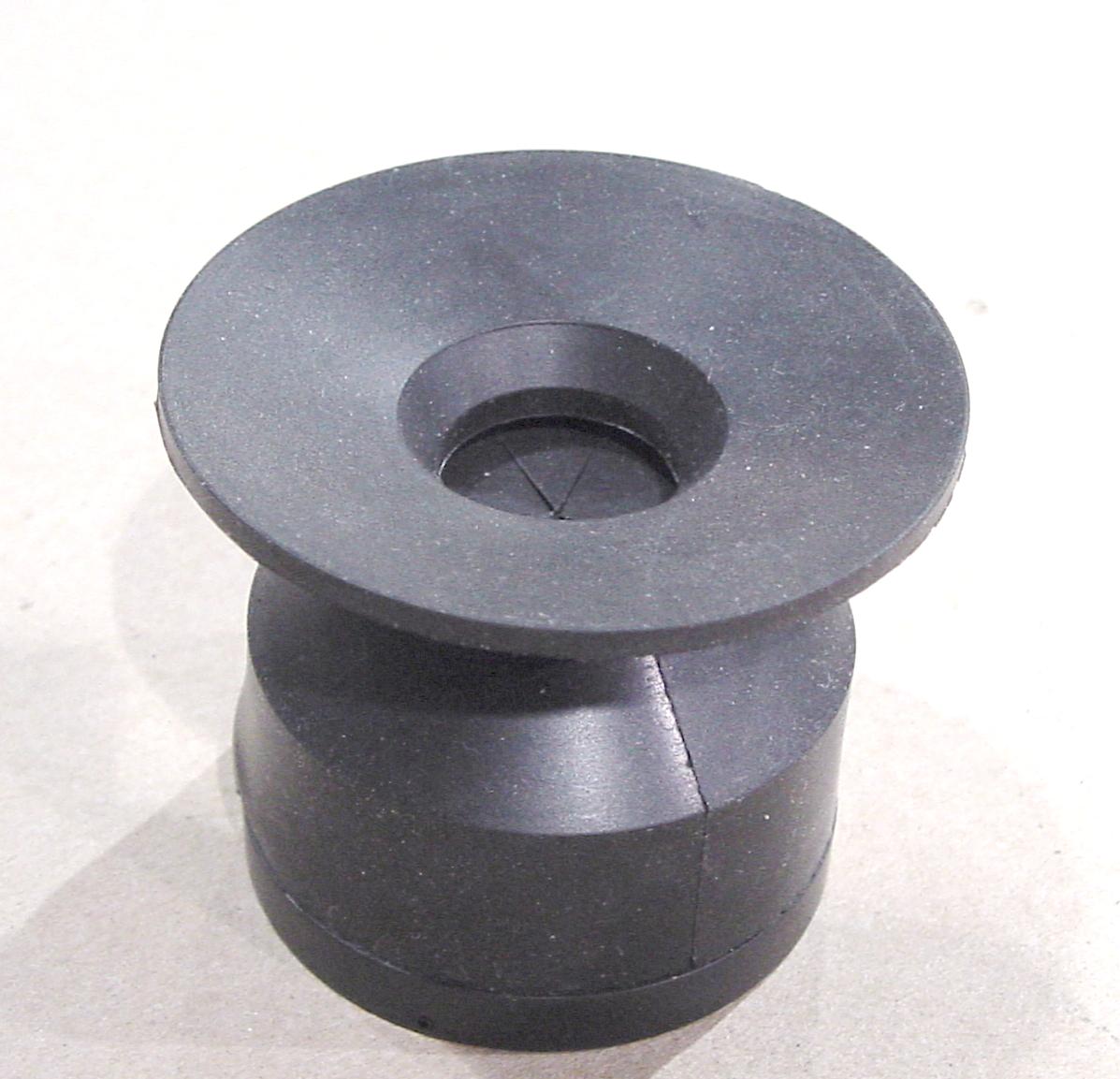

 Rubber
Eyeguard
(Compress w/Star Opening) |
| Basic Kit Includes: Head-Mount Assembly, MILSPEC 27mm Objective Lens, Eyecup, 2 AA Batteries, Operator's Manual, Soft Carrying Case, Daylight Lens Cover, IR LED |
|
Photography
& Surveillance
Kit1
KNV14PSK1 PVS14 + Basic Kit, 3X Afocal Magnifier, Camera Adapter Assembly, Hard Case, Guardian or Phoenix Jr. IR Beacon, KNVIR100 IR Spotlight |
|
Photography
&
Surveillance
Kit2
KNV14PSK2 PVS14 + Basic Kit, 5X Afocal Magnifier, Camera Adapter Assembly, Hard Case, Guardian or Phoenix Jr. IR Beacon, KNVIR100 IR Spotlight |
|
Photography
&
Surveillance
Kit3
KNV14PSK3 PVS14 + Basic Kit, 3X and 5X Magnifiers, Camera Adapter Assembly, Large Hard Case w/foam insert, Phoenix Jr. IR Beacon and Programmable VIPIR or Phoenix Beacon |
