SFK-7D Kit, Single Tube Goggle Kit, Includes: AN/PVS-7 OMNI-V MILSPEC Grade Night Vision Monocular, 64lp/mm, Hard Shipping & Storage Case, Soft Carry Case, Headmount Assembly, Helmet Mount, Slip-On Magnetic Compass, Sacrificial Filter, Demist Shields, Day Light Lens Cover, Rubber Eyecups, Lens Cleaning Paper, OP Manual, 3X Afocal Magnifier, Phoenix Jr (IR-14) IR Beacon, LIF, (2) AA Batteries and Slip-On Infrared Spot/Flood illuminator

  The  SFK-7D (PVS-7D) series uses a MILSPEC PVS-7 housing and incorporates a GEN III MILSPEC OMNI-V image intensifier tubes. With the use of a single  image tube and a dual eye configuration, the PVS-7 provides outstanding night vision performance without the high cost of the Dual tube configuration.

     With simple user controls and fully automated image tube protection, this system allows the user to have complete freedom of movement while maintaining equilibrium and balance in a hands free application. The PVS-7 also incorporates an infrared illuminator with a momentary and continuous on switching function. Infrared operation and low battery indicators are displayed within the user‘s field of view.


     Interpupillary adjustment (distance between eyes) can be made as well as an Objective Lens Focus. With the separate Diopter adjustment rings (left/right eye focus) users get Unparalled comfort and optimum vision. Intricate tasks "close work" such as reading and repair are facilitated using the Built-in IR illuminator.  For complete darkness situations the Slip-on IR Spot/Flood greatly enhances the image and brightens the room. Optional Infrared Spot Lights covertly illuminate larger areas, just as regular Spotlights do for visible enhancement.

     Included accessories include a Slip-On 3x Afocal Magnifier lens to facilitate field conversion for long-range observation & surveillance. Flashing Beacons create an Infrared signal to mark shorelines for Boaters  or campsites for Hikers & Hunters. For Security Details, the Beacons can be carried in a pocket to keep your client covertly marked, even in large crowds at night.  The slip-on Magnetic Compass provides directional information in the field of view.

   These are the choice for many Law Enforcement Agencies, Homeland Security Teams, Fire Departments  and Private Security Firms because of their battle proven effectiveness with our own US Military.

Optional 3 & 5-power magnifier lenses facilitate field conversion for long-range observation.


The Magnetic Compass slips onto the objective lens and provides directional information within the field of view.




These  "Top-Of-The-Shelf"   Night Vision Goggles include the Headmount Assembly and are used by Military, Law Enforcement, Government Agencies, Covert Security & Surveillance Teams.


IR Lighting greatly increases recognition ranges

*Larger Department Orders and Bid Requests/Estimates, please contact us for special price discounts.



Accessories   NSN
274424 Mich Helmet Front clip for A3256368
274897-1 Front Bracket Kit, (Mich Helmet)
274479-1 Face Mask Assy, Headmount (accepts Flip-Up Helmet Mount
275131-1 Helmet Mount RBR, Flip-Up, Front & Rear Clips, Adj. Straps
275306-1 Helmet Mount MICH, Flip-Up, Front & Rear Clips, Adj. Straps
275418-1 Floating Neck Strap (USCG)
3144263-1 Demist Shield PVS-7(each)
5009737 Filter, Light Interference 5855-01-379-1410
A3144264 Sacrificial Filter (PVS-7) 5855-01-240-8271
A3144268 Headmount Assembly 5855-01-246-8266
A3144318 Objective Cap
A3144422 Eyeshield
A3187430 Compass, Magnetic (PVS-14, PVS-7, ENVIS)
A3187441 IR Spot/Flood Lens  (50yds) (PVS-7)
A3256368 PASGT Helmet Mount, w/chin strap (PVS-7,PVS-14) 5855-01-457-2953
A3256369 Helmet Mount, Flip-Up Bracket Only), Attach to NVD

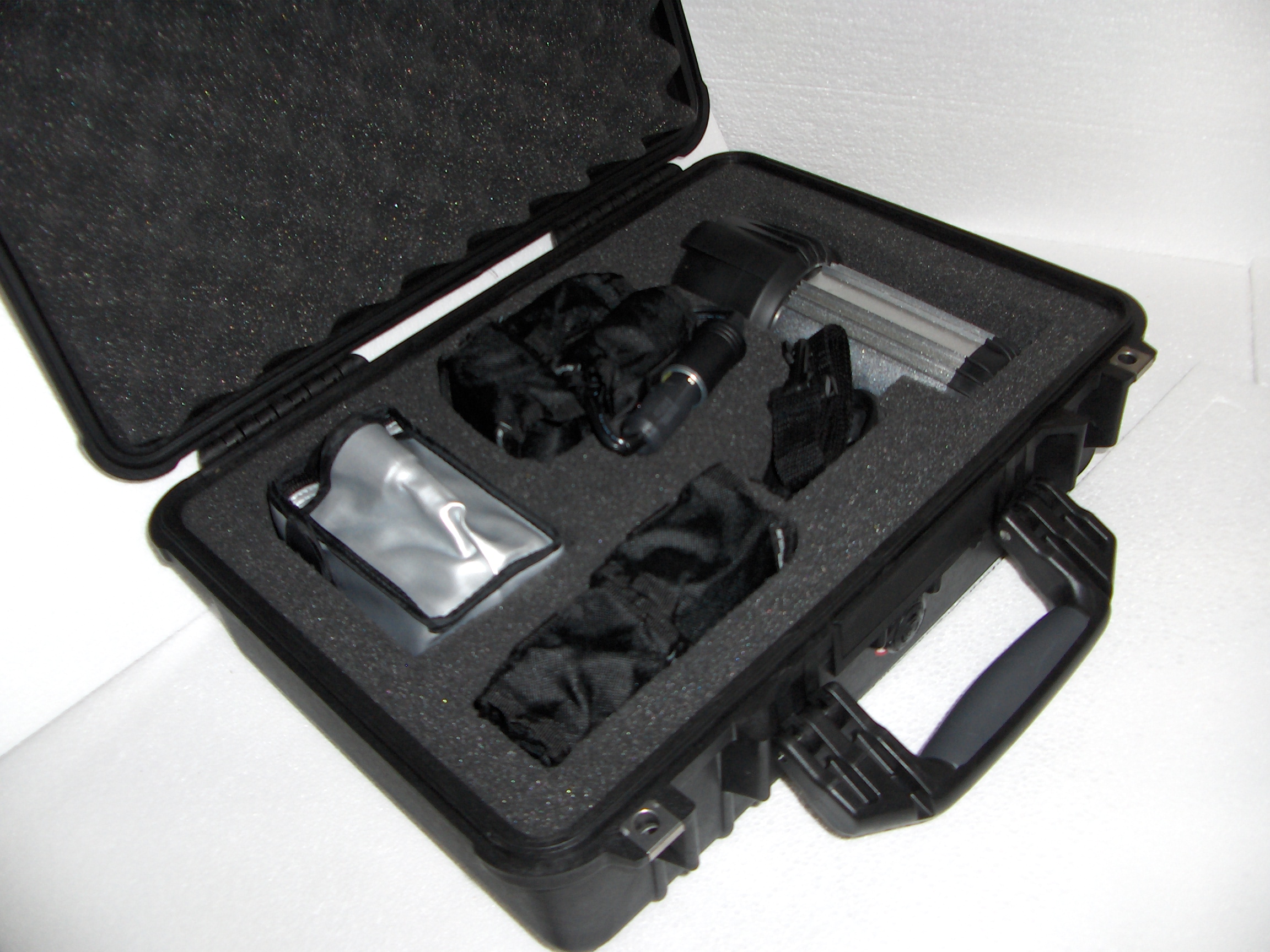

HC-7 Hard Case, Ship/Store
ML-3 Afocal, 3X Lens, (f/1.5) 13deg FOV 5855-01-461-2741
ML-5  Afocal, 5X Lens, (f/2.4) 7.7deg FOV (550-1503-001) 5855-01-391-7026

Home   Contact Us   Export Regulations   Order

KERIF Night Vision
829 Antelope Way
Las Vegas, NV 89145-6156

(702) 324-6463  /  (702) 869-8451 FAX

sales@nitevis.com or kerifnightvision@earthlink.net




Available Tube Grades

SFK-7D Kit GEN III MILSPEC
NSN: 5855-01-461-8169

LE/Govt. $Call




System Technical Specifications

Generation
3
Resolution
64+lp min.
Objective Lens
27mm, f/1.2, T/1.3
Focus Range
9.8"(20cm) to infinity
Magnification
Unity (1X)
Field Of View
40°
Diopter Adj
+2 to -6
Weight
24 oz. (680g)
Size
6" x 8.25" x 3.5"
Battery
2 AA Lithium
Battery Life
55 hrs.


COMSPEC PVS-7 Options

Optional Accessories
  Front Bracket Kit (MICH Helmet)
274897-1
  Operator Manual

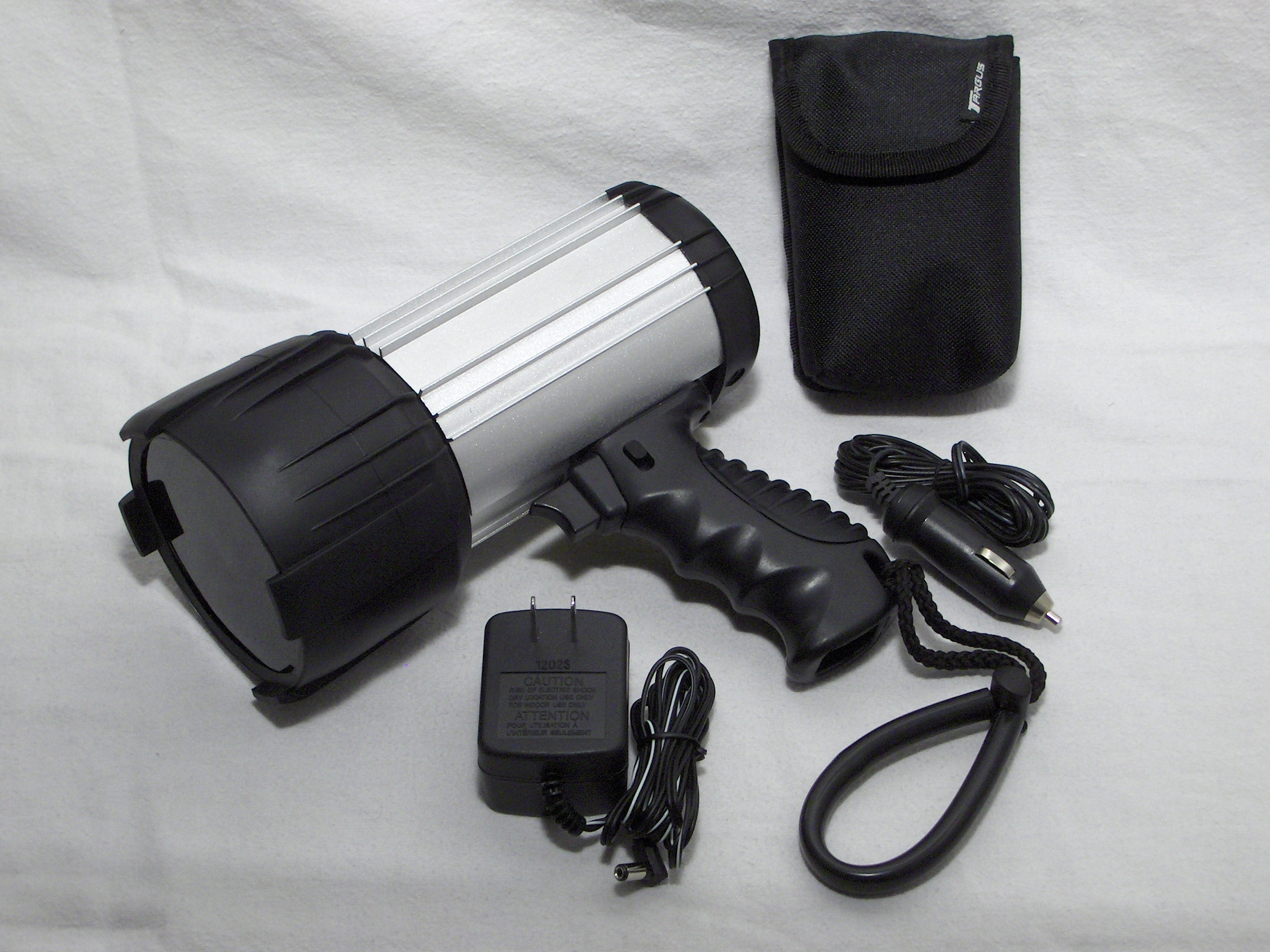

IR Spotlights


  Helmet Mount Assembly
A3256368



MICH Clip Adapter
274424 (for A3256368)


  Slip-on IR Spot/Flood (50yds) A3187441

  Magnetic Compass

  Sacrificial Filter

  3x Military Lens

5855-01-461-2741

  5x Military Lens

5855-01-391-7026

  Hard Case PVS/7 & 14
