Thermal

	Attaches to Helmet using Standard NVG Helmet Mount
	Hands-Free Operation
	Small (3" x 3" x 3") and Lightweight (16 oz.)
	White Hot Polarity, True "See-in-the-Dark" Technology
	Fully Maneuverable Eyepiece (Monocular)
	Raised One-Button On/Off Control (For Gloved Operation)
	Mil-Hardened to Endure Extreme Conditions
	Fixed Eyepiece & Objective Lens Focus
	Flip-Up Capability, Flexible Eyepiece
	Manual Brightness Control
	Operates over 7 Hours on (2) AA Batteries
	Amorphous Silicon Microbolometer
	160 x 120 Uncooled Focal Plane Array

Raytheon 4000B

HelmetIR-50: Discontinued

Ships with: A3256368 Helmet Mount (Mich or PASGT), Eyecup Assembly, Objective Lens Cover, Display Lens Cover, Soft Carry Case,
Hard Case, (4) AA Lithium Batteries, Operator's Manual, Lens Paper

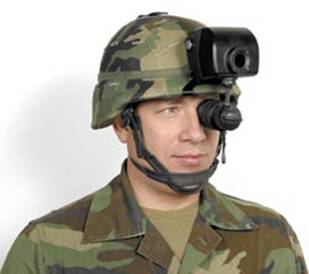

The HelmetIR is a Small, Lightweight, "Top-of-the-Shelf" military helmet mounted Thermal Imager. Unlike image intensified night observation devices, this thermal imager can see in total darkness, through battlefield obscurants and foliage. It incorporates Digital Signal Processing with Integrated Compact Optics and rugged packaging with attention to ergonomic detail.

The HelmetIR quickly attaches to the Standard Flip-up Helmet Mount (A3256368) (Specify whether Mich or PASGT) used with Standard Night Vision Goggles. This system can be easily interchanged between team members equipped with Helmet-Mounted NVGs.

Fire and Safety

Hot-Spot Detection

Search and Rescue

Area Sweeps

Border Patrol

Fugitive Search

Nighttime Navigation & Patrol

Covert Operations

System Technical Specifications


Detector Type		Amorphous Silicon Microbolometer
Spectral Response		7 - 14 microns
Detector Resolution		160 x 120
Size		3" x 3" x 3"
Weight		16 oz.
Power Source		(2) AA Lithium
Infrared Polarity		White-Hot

NSN: 5855-01-501-9520
