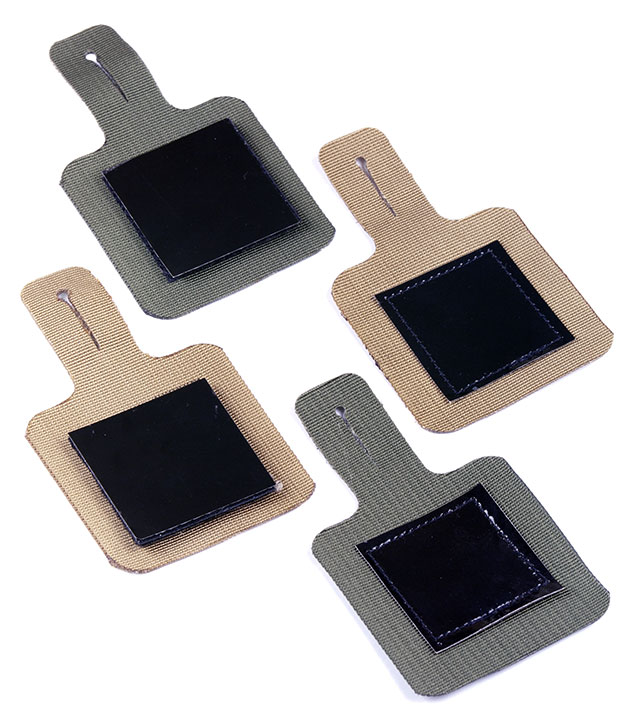

The Warrior GloTape Marine IFF Button-ON marker, uses a 2”x2” specially-formulated reflective patch that only reflects infrared (IR) wavelengths when illuminated by light sources such as targeting lasers. When viewed with military night vision IR systems, the reflected IR light provides a simple marking method that identifies friendly persons to team members at distances up to 800 meters.
     The Marine IFF Button-ON Marker is supplied on OD Green or Tan CORDURA® fabric backing and can be fastened to the shoulder pockets buttons or the breast pockets buttons of the US Marine combat utility uniform. The markers are durable and an easy to use IFF solution. Each kit contains two markers; one for each shoulder or breast pocket.

     Two versions of the Marine IFF Button-ON Marker are available. The traditional Marker (912111), where the infrared reflective patch is Sewn-ON to the fabric backing and the Velcro® Marine IFF Button-ON Marker (912211) where the infrared reflective patch is attached with hook and loop Velcro® allowing for easy replacement of the 2” x 2” reflective patch on the battlefield. The Velcro Marker provides a lower cost solution over a deployment, since only the reflective patch would need to be replaced, rather than replacing the complete Button-ON Marker.

All materials are US Made and Berry Compliant. US Marine Approved.

Specifications

Weight (912111 - Marine IFF Button-ON Marker): 0.2 Ounces | 6 Grams
Weight (912211 - Velcro® Marine IFF Button-ON Marker): 0.4 Ounces | 11 Grams
Size: 5.0" x 3" | 127mm x 76 mm
Reflective Angle (IR Square): 5 Degree Cone
Color Options:

Marine IFF Button-ON Marker Desert Tan (912111DT)

Marine IFF Button-ON Marker Olive Drab (912111OD)

Price includes Free Shipping & Handling to US Addresses ONLY
(APO/FPO Addresses OK)

Velcro® Marine IFF Button-ON Marker Desert Tan (912211DT)

Velcro® Marine IFF Button-ON Marker Olive Drab (912211OD)







IFF 980 MC22 - Replacement Black IR Reflective 2"x2" Squares, Velcro Hook (50 Pack)

IFF 980 MC22-10 - Replacement Black IR Reflective 2"x2" Squares, Velcro Hook (10 Pack)

IFF 980 MC22-01 - Replacement Black IR Reflective 2"x2" Squares, Velcro Hook (1 each)

Price includes Free Shipping & Handling to US Addresses ONLY
(APO/FPO Addresses OK)

Warrior GloTape Infrared (IR) Reflective Markers and Tapes are manufactured from specially-formulated material that only reflects infrared (IR) wavelengths when illuminated by light sources such as targeting lasers for covert marking of troops. When viewed with NVD\'s, the reflected IR light provides a simple marking method that identifies friendly persons to team members at distances up to 800 meters. To the naked eye, GloTape appears to be similar to black duct tape in both texture and finish. Available w/Velcro hook, peel-and-stick or sew-on backing.

Durable and requires no power - yet effective at over 800 feet.

Warrior GloTape relies on the simple principle that selected light wavelengths can be either reflected or absorbed. This simple principle, translated into Warrior GloTape, is becoming the standard equipment for the future warrior.


OPERATION... In the same way that coatings on modern combat fighter jets are tuned to absorb radar wavelengths, Warrior GloTape uses a specially-formulated coating to catch select visible light bands and only reflect IR wavelengths. While it is true that some visible light is reflected back from the surface, reflection in low-light conditions is considered to be almost zero. The reflected IR light amount is substantial, and coupled with military night vision IR systems creates a beacon of light which marks a friendly unit to team members.


Reflected high-frequency light (IR) can come from ambient light, illuminated ENVIS gear, or lasers. Targeted lasers provide the greatest infrared return while viewed through ENVIS equipment.



CONSTRUCTION... Products made from the Warrior GloTape materials are durable and easy to care for. Much of this is owed to the technology behind the patch and construction techniques. 3M reflective material provides the basic reflective qualities for Warrior GloTape. Familiar in construction and highway use, the 3M layer is pliant and extremely durable. A masking is applied to the surface of the 3M material, effectively turning the layer black and non reflective to all but infrared light.


All layers, plus any design art, are permanently adhered to a hook-and-loop substrate using Warrior GloTape exclusive Fused Edge technology. Fused Edge patches and labels will not separate, tear, or fray.



USAGE... Warrior GloTape technology is extremely application flexible. Currently it is being used to protect soldiers with Patches, Armbands, and Helmet SCHIMS. The same protection is offered to heavy and light vehicles in the form of side markers.





Product Highlights... INCREASED TROOP SURVIVABILITY


     Will not reveal unit location to combatants - To the naked eye, Warrior GloTape looks like black duct tape, yet with NVG equipment, it provides a stealth method for teams to identify specific units.

     Limited field of IR reflection - Infrared light is only reflected back to the viewer in a 5 degree cone from center. Only those meant to identify troops or vehicles will be able to do so.

     Long-range effectiveness - When illuminated with military ENVIS equipment, Warrior GloTape markers are visible at up to 800 meters. Military teams are given enough time to identify and react to ground movement.



SIMPLE AND DURABLE



     Nothing to break - Warrior GloTape is not powered internally, has no light-emitting elements and needs no batteries.

     Cost effective - Troops and vehicles can be outfitted and thus protected with smaller cost per unit as compared to other identification systems.

     Long life-span - Patches & Labels have a 7-Year weather exposure life.

     Fused Edge™ Technology - Patches do not have seams or stitching to tear or wear down.



ULTIMATE FLEXIBILITY AND SECURITY



     Exclusive distribution - Warrior GloTape products are only supplied to approved military and civil organizations.

     Full range of uses - Protects both individual troops and vehicles in combat situations.

     Added personalization - Custom unit markings can be created for approved military and civil organizations.


     Warrior GloTape is an infrared (IR) reflective material intended for the covert combat identification of troops, vehicles and equipment. It is most commonly used to prevent fratricide (the inadvertent killing of friendly forces). To the naked eye, GloTape appears to be similar to black duct tape in both texture and finish without a visible reflective glow. When illuminated with the infrared diode on standard Night Vision Goggles (NVG\'s), the GloTape gives a bright reflection that is clearly visible up to 70 meters away. The bright reflection from an infrared laser can be seen up to 900 meters using a 6-power night vision scope. GloTape is available in a variety of sizes and cuts to fit the individual needs of the user.
