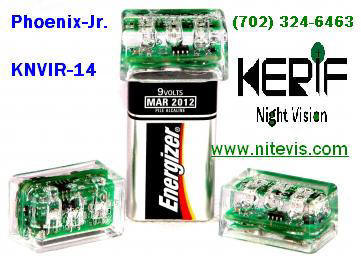

Phoenix Jr. Features:

                  Fixed Flash Rate

                  Common 9V Battery operation

                  Optional Trip Wire Device

                  Optional Vehicle Power Supply

                  Covert Marker for use with Night Vision

                  240˚ x 360˚coverage

                  Available in Red, Green or Infrared

                  Weighs only 8.5 grams (0.3oz)

The KNVIR-14 Phoenix Jr. MPN: 902111IR is an extremely rugged and low-cost marker beacon. It is used in conjunction with Night Vision goggles (NVG) and other Night Vision devices (NVD), at night, as a covert position marker. The Phoenix Jr.  (Firefly) was originally designed as a combat identification marker to minimize fratricide (the inadvertent killing of friendly forces, by friendly forces), and has been widely fielded by American and coalition forces for combat identification.

     The beacon has many uses in combat and other covert operations for marking personnel, vehicles, safe pathways, or locations. It incorporates a flash rate that was specified to prevent confusion with small arms-fire. Use the Phoenix Jr. to identify friendly force positions, demarcation lines or perimeters. Since its introduction in 1984, the Phoenix Jr. is the most widely used electronic Combat ID system in the world.

Phoenix Jr. and the war on terrorism.

The Phoenix Jr. (Firefly) beacon has been utilized by American and coalition forces for combat identification in theatres of operation such as Kosovo, Bosnia, Somalia, Afghanistan and Iraq. The beacon has many uses in combat and other operations for marking personnel, vehicles, pathways or locations. It incorporates a flash rate that was specified to prevent confusion with small arms fire. Use the Phoenix Jr. to identify friendly force positions, demarcation lines or perimeters.

Phoenix Jr. is the world standard for covert signaling and identification of military, law enforcement, SWAT and homeland security assets.

SPECIFICATIONS
Weight: 0.3 Ounce | 8.5 Grams
Size: 1.19” x 0.9” x 0.574" | 31mm x 22.5mm x 14.6mm
Flash Repeat Cycle: 1.3 Seconds (Fixed)
Flash Duration: 20 Milliseconds (Fixed)
Battery: Common 9 volt
Configuration: 3 Light Emitting Diodes (LED), 880nm
Coverage: 240 degrees x 360 degrees

Operating depth: The Poseidon — Phoenix / Pegasus Mounting Clip (902801) provides a water tight casing for the beacon and battery assembly. If immersed without the Poseidon case, the unit will continue to operate until the contacts fail due to water and electrolytic corrosion. Given these conditions the depth limitation is solely determined by the battery’s ability to withstand depth.

Light Output Frequency and Ordering Information:
KNV-902111IR:  Infrared - 880 nm (830nm available on special order - 100 piece minimum)
KNV-902111R: Visible Red - 640 nm (For Unit Training or Visible Applications)
KNV-902111G: Visible NV Green - 565nm  (For Unit Training or Visible Applications)
Alternate frequencies available on request

OPTIONS
KNV-902611, Vehicle Auxiliary Power Supply
KNV-902801, Poseidon Mounting Clip for Phoenix/Pegasus Series beacons

The Pegasus/Phoenix Jr. beacons are the world standard for covert signaling and identification of Military, Law Enforcement, SWAT and Homeland Security Agencies.

These Beacons are proudly manufactured in the USA

 EXPORT LICENSE REQUIRED.
Infrared Beacons are ITAR Controlled and cannot be exported without written authorization from the US State Department
