5X NV Binocular

* PVS-7 STYLE GOGGLE, SINGLE TUBE OPERATION

* GENERATION 2 or 3 IMAGE INTENSIFIED (I2)

* LONG-RANGE NIGHT OBSERVATION

* 5X POWER VIEWING WITH CATADIOPTRIC LENS

* AA BATTERY OPERATION (40Hrs)

* BRIGHT SOURCE PROTECTION

* AUTOMATIC BRIGHTNESS CONTROL

* PASSIVE OPERATION


Ships with 135mm Astronomy Grade Catadioptric Lens, Neck Cord, (2) Rubber Eyecups, (2) AA Batteries, OPMAN, Lens Cleaning Kit, Soft Carry Case, Demist Shields, Shoulder Strap, and Lens Cover

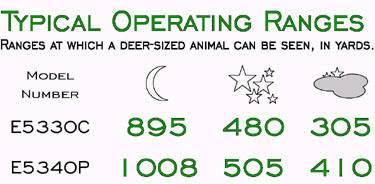

     The 5X has elevated Night Vision Binoculars to a whole new plane. The Long-Range and Image Clarity of this Dedicated 5X Power PVS-7 Type Night Vision Goggle would be astonishing in daylight conditions, but imagine the results you will achieve at night, when everyone else is seeing blurs. Even on a cloudy night, you could expect to see a man sized object over 300-400 yards, and a clear moonlit night extends the detection range to over 1000 yards!*see chart below If you need to know what\'s going on around you at night, this unit solves your problem. This long range Night Vision Binocular incorporates the body of an AN/PVS-7B and a High Quality five-power (5X) Catadioptric objective lens. Utilizing Gen 2, Gen 3 Commercial or top quality, State-of-the-Art MILSPEC Generation 3 NV Image Tubes, safely secured within a (MILSPEC) PVS-7 type housing, these 5X Binoculars are the envy of the industry.

     The PVS-7 was designed for US ground forces and you have a choice of new GEN 2 or GEN III Commercial or Catalog Spec (MILSPEC) grade image intensifier tubes from ITT or L-3. This versatile system delivers extraordinary gain and resolution on the darkest of nights, and this dedicated binocular offers technically superior long-range Night Vision viewing that is a dramatic improvement over Afocal conversions. The Gen 3 units offer Automatic Brightness Control, EMI-RFI Protection, built-in IR illuminator w/ON-indicator and low battery indicator.

These NVG\'s are built in the USA and have ergonomically designed interface controls that comprise of Focus Adjustments, Diopter Adjustments, and Interpupillary Eyepiece Adjustments. Interpupillary adjustments, or the distance between your eyes can be made to optimize the viewing scene in addition to separate Diopter adjustment rings (left/right eye focus) for eyeglass wearer\'s, offer unparalled comfort and optimum vision for most users.

     A detector located on the goggle\'s body called the High-Light Cutoff will automatically shut off after 70 (+/- 30) seconds of operation in daylight or bright room light to protect the image intensifier tube. Headlights, flashlights or other concentrated light sources will not actuate the High-Light Cutoff unless focused directly on the detector.

 Application Comparison of Night Vision Devices


hand held
head mount
camera mount
1 eye
2 eyes
weapon mount
short range
med range
long range
ENVIS
X

X
X

X

AN/PVS-7
X
X

X

X

AN/PVS-5
X

X

X

4X RAPTOR
X

X

X

6X RAPTOR
X

X

X
AN/PVS-14
X
X
X
X

X
X

5X BINOCULAR
X

X

X
PVS-7 w/ 3X
X
X

X

X

PVS-7 w/ 5X
X


X



X



System Technical Specifications
Eye relief
  25mm (min)
Resolution
51+lp/mm to 64+lp/mm minimum
Objective Lens
135mm, f/1.6 Catadioptric
Lens Diameter   3.9 inches
Focus Range
8\' to infinity
Magnification
5.1 Power  (6°FOV)
Center Resolution
46+lp/mm min
Diopter Adjust
+2 to -6
Interpupillary Adj.   2" to 2.75"
Weight
32 oz.
Size
8" x 4" x 6.25"
Photo Response
1000 minimum
Luminance Gain
25,000 minimum
Signal-to-Noise
16:1 to 21:1 minimum



EXPORT LICENSE REQUIRED
Export of the commodities herein described are strictly prohibited without a valid export license issued by the US Dept of State, Office of Defense Trade Controls, prescribed in the International Traffic in Arms Regulation ITAR, Title 22, Code of Federal Regulations, Parts 120-130

Night Vision Sights are restricted to domestic U.S. sales to U.S. Citizens only. Export licenses are required for any foreign sales. Please be prepared to provide paperwork when ordering.



Binocular Image Tube Specification

Image Intensifier, 18 mm, Gen III, Models N9810-4, N9810-5, N9810-6

The N9810 Series Gen III 18 mm image intensifier consists of a high-efficiency GaAs photocathode bonded to a glass input window, a microchannel plate (MCP) current amplifier, and a P-43 phosphor screen deposited on an inverting fiber-optic output window.

 The Gen III photocathode is very sensitive to low-radiation levels of visible and, especially, near infrared light. It also provides very high signal-to-noise ratio (SNR) for extended detection ranges at very low light levels. The 6-micron channel spacing in the MCP provides exceptional resolution and extended detection ranges in low-light conditions. The MCP has a thin ion-barrier film that preserves photocathode sensitivity during operation, thereby greatly extending the life of Gen III tubes compared to Gen II.

Continued improvements to the Gen III N9810 image intensifier tubes  increases operational range and situational awareness for the user.  Some L-3 units are equipped with a Thin-Filmed Gated Power Supply, or if they are made by ITT it is called the Pinnacle™ version, provide truly outstanding performances in high-light or light-polluted areas, such as urban environments.  In addition, the Pinnacle or Auto-Gated tubes provide clearer resolution and a much reduced halo.

Differences Between Models

 This image intensifier is available in a wide range of performance levels to meet customer requirements.

Performance Levels

System Model

M-534

M-535

M-536

Tube Model

N9810-4

N9810-5

N9810-6

Resolution (lp/mm) (typical)

57

51 - 64

64

Halo (maximum)

1.25

1.25

1.25

Signal to Noise (minimum)

20

22

22

EBI  (maximum)

5

5

5

Photocathode Sensitivity (minimum)

1000

1500

1800

System Gain (minimum)

2500

2500

3000

Blemishes
(# allowed in each zone, maximum)

ZONE

ZONE

ZONE

        Spot Size (in)

1

2

3

1

2

3

1

2

3

        .012 - .015

0

0

0

0

0

0

0

0

0

        .009 - .012

0

1

1

0

1

1

0

2

1

        .006 - .009

0

2

2

0

2

2

0

1

2

        .003 - .006

1

2

2

1

2

2

1

2

2

        Bright Spots / Emission Points

0

0

0

0

0

0

0

0

0

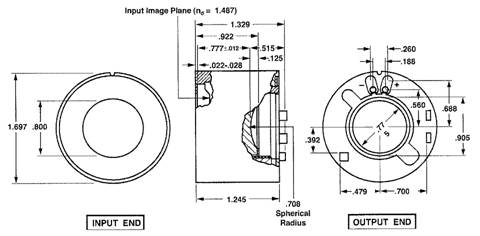

Tube Dimensions (inches)

E
