MSRP: = $3,799.00 List = $3,499.00 Call for Discount or email
P/N: 5002012-1 X320, Handheld Thermal Imager, 320x240 Detector, 30Hz, NTSC
     KERIF Night Vision adheres to a Minimum Advertised Price (MAP) set by the manufacturer, and anyone not listing MAP is: 1) Breaking the rules; 2) Not an Authorized Dealer; 3) Selling Used, Damaged or Surplus Equipment or 4) Is selling inferior "Knock-Offs".  If you find a better advertised price, please let us know and we will try to meet or beat that price!
Thermal-Eye Kits Include: Drawstring Pouch, Integrated Eyecup, (2) AA Batteries, Operators Manual & Quick Reference Card, Custom Foam Fitted Plastic Shipping/Storage Case, GUI Software CD, Video Cable, Lens Cleaning Cloth, Tethered Lens Cover, Neck & Wrist Strap, and Warranty Card

Raytheon 4000B
































* Enhanced DSP Image Processing, Color LCD 320 x 240 pixels

* On-Screen Battery Level Indicator

* Small enough to stow in BDU pocket

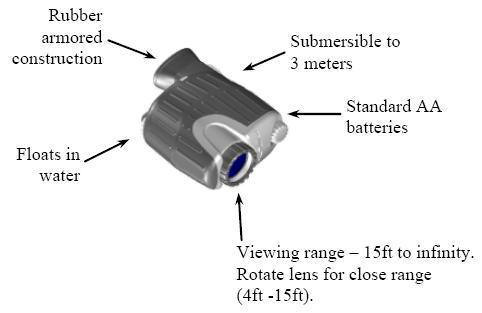

* Shock Resistant up to 6' drop - Waterproof to 9' - Buoyant

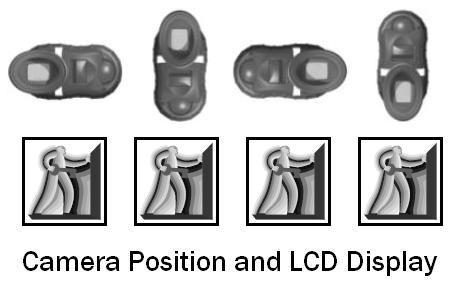

* Left or Right Hand Operation w/rugged slip-resistant grip

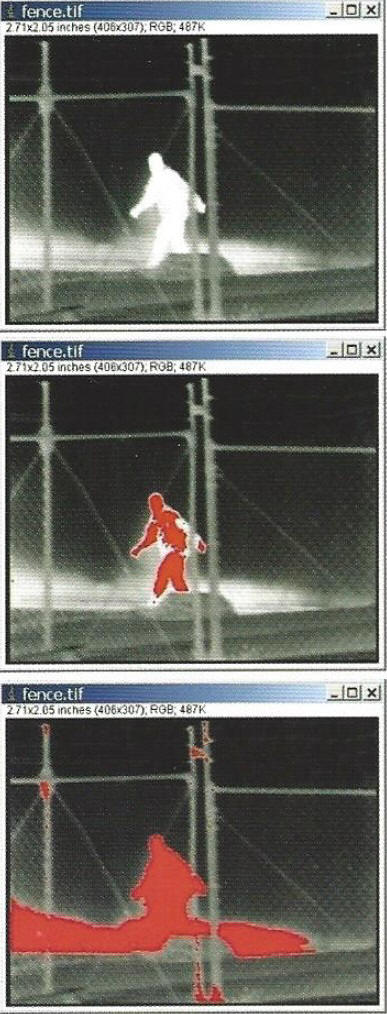

* White Hot or Black Hot Polarity, HTL I, HTL II as well as Custom Color Palette

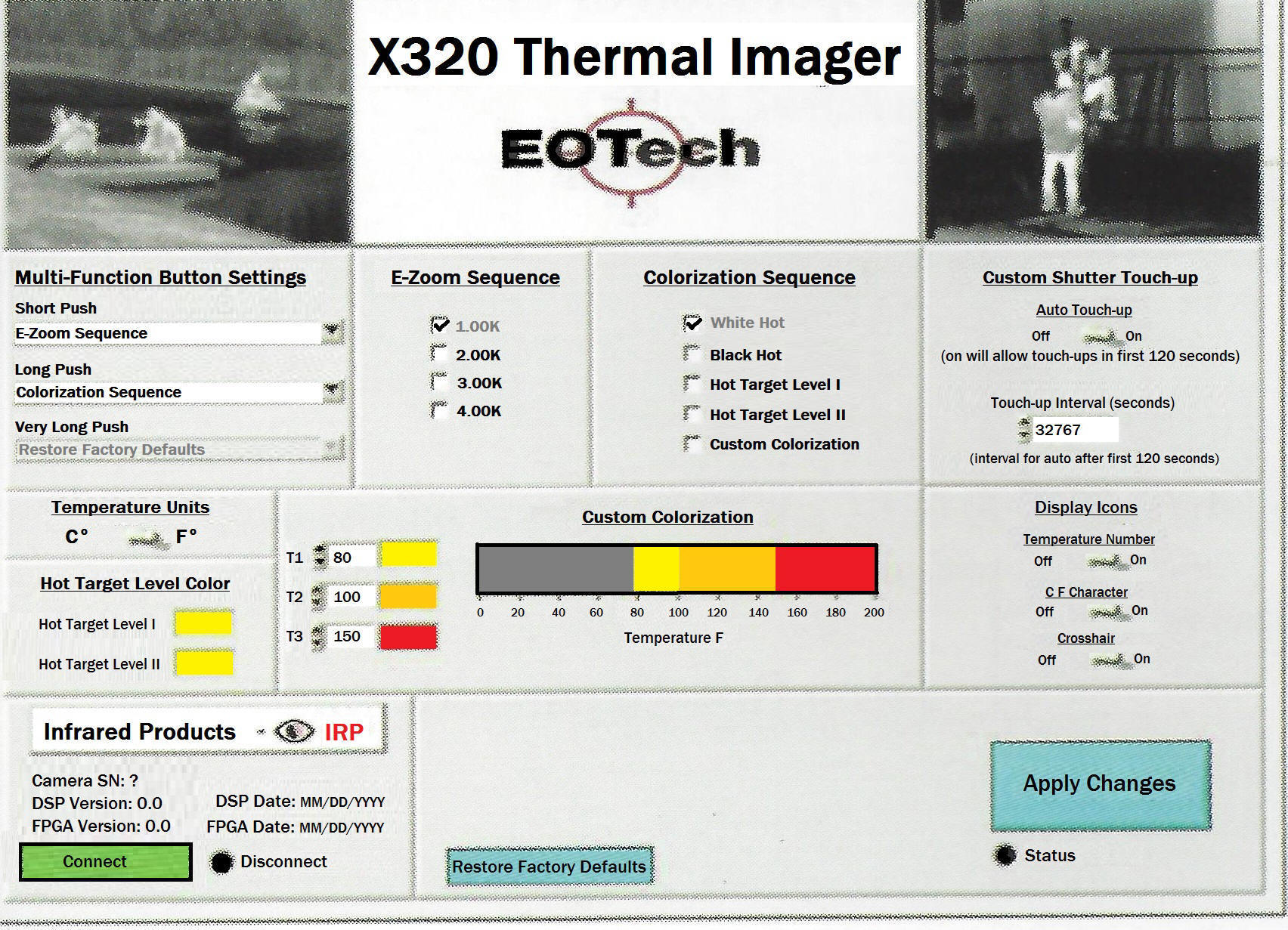

* Color set points selection via GUI Software
* True "See-in-the-Dark" Technology

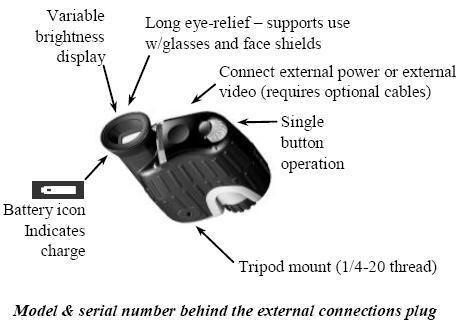

* External 12VDC input and NTSC Video Output

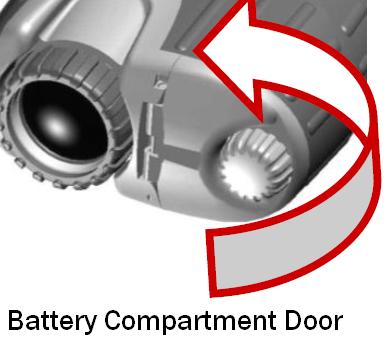

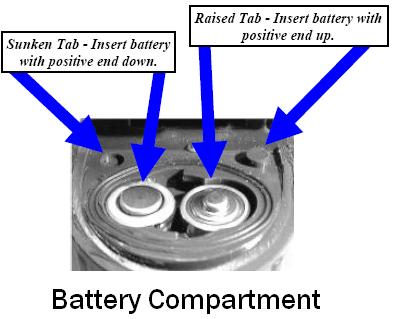

* Tactile Battery Loading feature for Stealth Night Operations
* Integral Viewfinder Dimming on On/Off Switch

* Long Eye Relief Viewfinder for facemasks, glasses etc.
* Pushbutton control; Features selectable via provided GUI Software

* Tripod-Mount w/¼-20Thread
* 3 Year Warranty

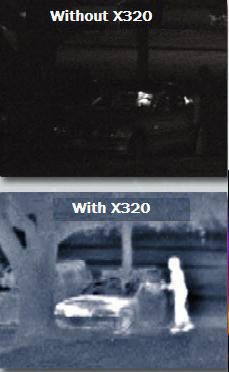

     Even with the best Image Enhanced Night Vision Scopes, it's difficult to spot your targets if they aren't moving or hidden in the brush. Well, with the x320 Thermal-Eye Imager, the heat signature makes your target stand out with a bright white glow or with a color palette of your choosing. Find Feral Hogs wherever they are without much effort because they literally glow with heat. Once you know where they are (Day or Night) you can put the scope on them and take them out.






































The Thermal-Eye X320 is the smallest and lightest handheld thermal imaging camera available on the market today and has advanced significantly beyond its X50xp, X100xp, X150xp, and even the X200 predecessors, which has performed with accolades in both Afghanistan and Iraq. This new unit offers a greater stand-off-range than the previous generation’s unit and can detect human activity at up to 750 meters (1,500 feet), more than the length of four football fields.  With a 30 Hertz 30µm detector, the X200 offers a fast turn-on time and real-time video imaging that is fully dimmable to minimize night blindness.



     The Thermal-Eye X320 incorporates digital signal processing with integrated compact optics and rugged packaging with attention to ergonomic detail. It has been designed for our Military, Law Enforcement, and Public Safety officials to endure the rigors of outdoor use, occasional rough handling, and accidental submersion for a few minutes in shallow water. Even with its small design, the image quality is not compromised and maintains high performance at an unparalleled value.


     The Thermal-Eye X320 provides the Firefighter or Security Officer with Thermal Detection capabilities just by reaching into a pocket. Your hands have better things to do than carry large cameras. Easily find your way through the thickest of smoke, render fog useless and see through camouflage and shadows.


     The "Top-of-the-Shelf" Amorphous Silicon Microbolometer Technology found inside the Thermal-Eye X320 is what permits the imager to be so small and light. Measuring only 5 inches across and weighing only 13 ounces with the battery, it easily fits into the palm of a hand or pocket, perfect for covert operations or convenience.



     L-3 Communications Infrared Products delivers superior, high-performance Infrared Technology solutions and camera systems for a wide variety of Thermal Imaging applications. Whether performing critical missions, gathering intelligence or conducting situation analysis, L-3 products perform when the stakes are high. Their Infrared products support reconnaissance and surveillance efforts executed by police officers, military troops, SWAT teams and others performing critical missions.




     L-3 Communications Infrared Products offers high-performing cameras to aid in tracking enemy targets, information-gathering and visual observation. With covert detection and long-range capabilities, L-3 Infrared Products has a portfolio of invaluable, high-tech, thermal imaging cameras. For nighttime patrols and search and rescue missions, L-3 Communications Infrared Products provides advanced, turnkey surveillance and detection solutions. Choose between our fixed-mounted and “pan and tilt” offerings to monitor, while in motion, your surroundings.


     L-3 Communications Infrared Products helps security professionals overcome many of the vulnerabilities of conventional surveillance technologies. If integrated within a pre-existing surveillance infrastructure, our cameras detect suspicious activity at night and through challenging weather conditions. This full-time, around-the-clock surveillance capability is ideal for protecting facility perimeters, critical infrastructure and high-value assets.



System Technical Specifications
Detector Type
Uncooled Amorphous Silicon Microbolometer
Spectral Response
7 - 14 microns
Thermal Sensitivity
40 mK
Cold Start Time
~4 seconds (Includes 2 Seconds of Start-up Logo)
Detector Resolution
320 x 240
Detection Range
<735 meters (2,400')
Focus Range
3 ft (1m)  to ∞ (infinity)
Focal Length
25mm
Field of View
12º x 9º
Eye Relief
3 inches
Frame Rate
30Hz NTSC
Size
5.25" x 4.5" x 2"
Weight
13 oz. w/batteries
Power Source
(2) AA Lithium Batteries
Infrared Polarity
White/Black, HTL I, HTL II, Custom Color

     The X320 incorporates digital signal processing, compact optics and a rubberized exterior case with attention to ergonomic detail. It was designed to sense differing amounts of long wavelength infrared while enduring the rigors of outdoor use, occasional rough handling, and accidental submersion for a few minutes in shallow water. If you drop it in the water, it floats!

     Even with its small design, the image quality is not compromised and maintains high performance at an unparalleled value. The Thermal-Eye X320 offers advanced amorphous silicon Microbolometer technology in a rugged and compact design. The X320 was developed for challenging field conditions to see through dust, smoke, and complete darkness.

     The ambidextrous shape and simplified design make it easy to use. With 320x240 resolution & 2x zoom, the X320 allows you to detect human activity up to 2400 ft (735m) with impressive scene detail and excellent image clarity. The 30-hertz, 30-µm detector provides military-grade performance for reconnaissance, surveillance, or first-response missions.



 FEATURES  THERMAL-EYE™ X320

 Focal Plane Array

Type & Material  Amorphous Silicon Microbolometer
Detector Resolution  320 x 240
Spectral Response  7-14 μm (filter bandwidth)
Thermal Sensitivity  ≤40 mK


 Thermal Imaging Performance

Startup Time  ~ 4 sec
Detection Range for Human Activity  Up to 2,400 Feet (735 meters)
Contrast / Brightness  Fully Automatic
Susceptibility to Blinding Visible Light  None
Infrared Polarity  White/Black Hot, HTL I, HTL II, Custom Color

 Optics Lens Focal Length  25mm
Field of View  12° x 9°
Minimum Focus Distance  ~ 3 ft. (1 meters)
Focus Method  Manual

 Video Output Format - rear outlet jack  Analog: NTSC
Viewfinder Display  Color LCD (320 x 240 pixels)
Viewfinder Dimming  Integral to power on/off switch

 Power Power Source  Two (2) AA Lithium Batteries
Operating Time  ~ 2.5 Hours w/Alkaline
 ~ 6 Hours w/Lithium
Auxiliary Power  12 VDC input on rear outlet jack

 Environmental Characteristics Operating Temperature  -4°F to 140°F (-20°C to 60°C)
Storage Temperature  -4°F to 176°F (-20°C to 80°C)
Water & Shock Resistance
Will float when dropped in fresh water
 Waterproof to 3ft (1m) submersion, buoyant in fresh water Shockproof to 6 ft (2m) drop
EMC Compliance  FCC: Part 15, class B, CE Mark
 EN61000-6-1 & EN61000-6-3

 Physical Characteristics Size  5.25” L x 4.5” W x 2” H
 (13.4 x 11.4 x 5.1 cm)
Weight  13 oz (381g), batteries installed
Eye Cup  Integral to camera body w/2” eye relief





3X Magnifier Lens for Thermal-Eye X320
Applicable to the X320, X200xp, X150xp, and X50xp, these 3X Magnifier lenses increase the focal length of your camera. No electrical or mechanical adjustments are necessary to the core of the system. Shock and vibration tested. Made of Germanium Oxide which is the same optical material as the Thermal-Eye camera itself.



Applicable to:
Thermal-Eye X320        Thermal-Eye X200xp        Thermal-Eye X150xp         Thermal-Eye X50xp


bulletPerfect for detecting Feral Hogs in the brush
bulletCrime Scene Investigation
bulletFire, Safety & Hot-Spot Detection
bulletSearch and Rescue
bulletOfficer Safety
bulletArea Sweeps & Border Patrol
bulletFugitive Search & Pursuit
bulletCovert Surveillance Operations
bulletRoutine Patrols (Day or Night)
bulletNavigation

L-3 Communications Infrared Products

Warranty

Products will conform to L-3 IP’s current drawings and specifications at the time of delivery and be free from defects in material and workmanship under normal use and service for (36) months, beginning on the date the product is delivered to the customer, or beginning on the date product is placed into service; collectively whichever is the shorter period of time, but in no event shall the period become greater than eighteen months (the “warranty”). L-3 IP’s sole obligation, buyer’s exclusive remedy, under the warranty is for L-3 IP, at its option, to repair or replace any part of the product which fails to meet the warranty or refund buyer’s purchase price, in the form of credit. For warranty repairs/replacements, at L-3 IP’s cost for shipping, buyer shall return products to L-3 IP’s facility designated by L-3 IP, with a written explanation of failure.




The warranty shall not apply to products;
(i) used for purposes for which they are not designated or intended, or
(ii) which have been repaired or altered without L-3 IP’s prior written consent, or
(iii) which have been subjected to misuse, negligence, accident or improper maintenance or installation, or
(iv) upon L-3 IP’s examination, do not disclose to L-3 IP’s satisfaction nonconformance to the warranty.
In the event the product ‘warranty card” is not returned to L-3 IP, proof of purchase shall be required to effectuate the warranty provisions stated herein above.

NO OTHER WARRANTIES, EXPRESS OR IMPLIED, ARE MADE WITH RESPECT TO THIS PRODUCT INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTY OF MERCHANTABILITY, NON-INFRINGENT OR FITNESS FOR A PARTICULAR PURPOSE.

Press Release View

Little Camera, Giant Results With L-3 Thermal-Eye X320

Thermal imaging camera from L-3 Communications Infrared Products offers improved image quality

DALLAS - Big things often come in small packages. Such is the case with L-3 Communications Infrared Products' next generation thermal imaging camera, the X320. The 13-ounce X320, designed for use in military and law enforcement applications, offers advanced overall image quality in a conveniently sized, rugged and cost-effective, package.

"L-3's Thermal-Eye cameras have proven to be immensely powerful tools for numerous law enforcement officials," Executive Director of LETA and Retired DEA Agent, Charles A. Stowell said. "The improved clarity, sharpness and ability to not only see well in total darkness, but also through smoke, dust and fog, make the X320 the ideal tool for everything from target detection and fugitive pursuits to search and rescue missions."

The camera's petite frame is stored easily in pockets for quick extraction and covert operation in the field and on the run, a must for law-enforcement and military officials. The unit's unique rugged design includes an integral rubber eyecup and can survive accidental drops. In addition, the X320 also can withstand underwater submersion up to nine feet. All of this on just two AA lithium batteries.

L-3 Communications Infrared Products, based in Dallas, designs, manufactures and sells a wide range of thermal imaging products and solutions serving the security, fire and rescue, public safety, law enforcement, transportation, industrial, utilities and Homeland Security markets. Product applications include search and rescue, perimeter surveillance, investigation, industrial process monitoring, preventive maintenance, automotive and truck night vision and much more.
