Light Weight
Submersible to 66 Feet
Head Mount Included
Single AA or 3V Battery
Free Weapons Mount

ANV-20B
Accessories Aimpoint Binoculars Contact Us Crimson Trace
FAQ's Goggles Hand Held Head Mounted
Monoculars Mounts & Bases Tactical Gear
Thermal Eq. Weaponscopes
Home
Prices subject to change without notice. Please call prior to ordering.

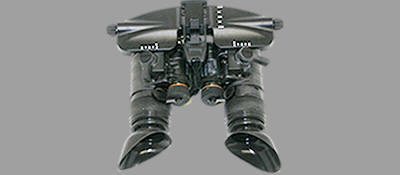

The ANV-20B utilizes two US Made Generation 3 (64lp) image intensifier tubes to provide crisp, clear images under the darkest conditions. The same high quality tube as the ITT6015 but with a higher resolution. Utilizing the most advanced Mil. Spec. housing, this system is built to handle the toughest of environments.

A dual tube binocular design offers greater performance than a single tube design; improved depth perception is an important benefit when it comes to operating vehicles or working on equipment at night. Perfect for any situation.

The ANV-20B can be hand held, or attached to a standard PVS-7 head-mount or helmet mount. Because the ANV-20B is built from two independent Monoculars, it can be easily separated to create two separated night vision Monoculars, or can be attached to a weapon to provide maximum flexibility. When used as a Monocular, the included weapons mount and the included head mount can be attached AT THE SAME TIME! This allows for quick interchangeability between uses without removing or installing anything.

The ANV-20B is smaller and lighter then the any other dual tube system available AND is fully submersible to a depth of 66 feet (20 Meters). The ANV-20B will work with either a single AA or 3.5 volt lithium battery offering more flexibility and longer battery life. The integrated IR illuminator enhances the ability of the user to read maps, and operate in confined spaces.

Available as a monocular ANV-20 (click for details)


System Technical Specifications
Magnification
1x
f-number
1.2
Field of View
40 degrees
Diopter Adjustment
-4+6
Eye Relief
27mm
Weight
9.6 oz.
Voltage
3.0 VDC
Power Source
(1) AA or 3V Lithium
Continuous Operation
>40 hours
IR Illuminator Range
~20 meters
Dimensions
4.2 x 2.0 x 2.5

Optional Accessories
PVS-7/14 Helmet Assembly
Hard Case PVS/7 & 14
Spot Flood IR
EOTech 552 w/ AA Battery
