The
Clip-on Thermal Imager, is the most versatile thermal system. Use alone as a
hand, head or weapon mounted thermal system or ‘clip’ onto an existing night
vision device to create a fused image of night vision and thermal together.

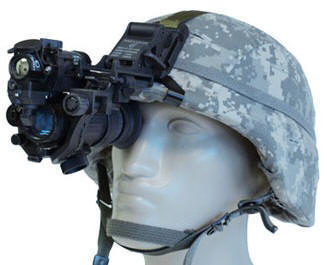

The imager
slides over the objective lens of your existing night vision goggles,
binoculars, or weapon sights, such as:
PVS-14/7B
BNVD/G
PVS-15
PVS-18
PVS-22
PVS-23
PVS-24
PVS-26

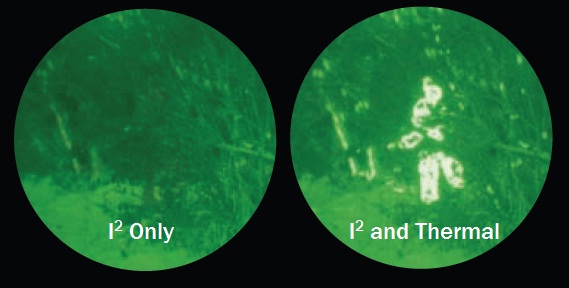

The imager
enhances the user’s current night vision capabilities by adding a thermal
overlay or ‘fused’ image without changing equipment. This helps the user
identify if a vehicle was just used or if people were in a room. This system
can also see into dark openings such as doorways or windows and help perform
search and rescue missions.
Power on with your night vision device (1 CR123A battery) and it enables you to detect heat sources to greatly improve situational awareness. Its lightweight design can be utilized for extended periods of time without adding much weight for the user. Able to detect heat signals up to 500m even with no natural light, thick dense fog, smoke and other environmental conditions, the imager is designed to withstand those harsh environments and waterproof up to 66 feet.

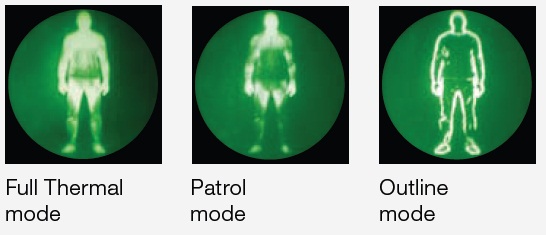

There are multiple modes of thermal. Full thermal mode, patrol mode, and outline mode. Conveniently changeable with easy to use functions.
All Units Include: Mounting Bracket (PVS-7, 14, 23, 15, or 18), CR 123A Batteries, Lens Cleaner, Storage Pouch, Operator’s Manual and Quick Guide.
Optional Accessories: Picatinny Mounting Bracket (PVS-22, 24, or 26), Eyepiece Adaptor for Conversion to Handheld Imager, Auxiliary Battery Pack, Battery Pack Helmet Adaptor, and Custom Menu Configuration.
| System Specifications | |
|
Resolution |
320 x 240 pixels |
|
Field of View |
20º circular, centered |
|
Objective |
Fixed Focus |
|
Magnification |
1X optical unity |
|
Aperture |
f/1.15 |
|
Sensor Type |
Uncooled LWIR Microbolometer |
|
Wavelength |
8-12 µm |
|
Display |
Micro Display |
|
Polarity |
White Hot/Black Hot |
|
Brightness |
Adjustable |
|
Dimensions |
5.5"L x 1.5"W x 3"H |
|
Weight |
150 grams w/battery |
|
Range Performance
|
||
|
Thermal Range |
Clear |
Obscured |
|
Detection |
>500m |
>500m |
|
Recognition |
>300m |
>300m |
|
|
|
|
|
Power Supply
|
||
|
Battery |
(1) 3VDC Lithium, CR123A |
|
|
Operating Time
|
||
|
One Battery |
>3.0 h @23ºC |
|
|
Auxiliary Battery Pack |
>8.0 h @23ºC |
|
|
Combine |
>11.0 h @23ºC |
|
Single CR123A
Battery Usage or Helmet Mounted AA Battery Pack
Submersible
to 20 Meters (66 Feet)
Clip on to Existing NVD's or Use as Stand Alone Thermal Imaging
Device
Detect Through Thick Environments (Fog & Smoke)
90 Day Warranty
| Clip-On Thermal Imager | List | ||
| Kit: Soft Case, Lens Cloth, OPMAN, Batteries, and Mounting Bracket (Specify when ordering) | |||
| Clip-On Night Vision Thermal + Kit |
$Call |
||
| COTI Accessories | List | ||
| EP1 | Eyepiece Adapter |
$Call |
|
| BP1 | Battery Pack Kit |
$Call |
|
| B1 | Mount Bracket BNVD, PVS-7, PVS-14, PVS-23 |
$Call |
|
| B2 | Mount Bracket PVS-15, PVS-18 |
$Call |
|
| B3 | Mount Bracket UNS-SR |
$Call |
|
| PM1 | Picatinny Mount Bracket, PVS-24 |
$Call |
|
