ThermoSight T-50 Thermal Weapon Sight
| Model # | Description | Laser | |
| 26857-200 |
ThermoSight T-50 Thermal Weapon Sight *Government only. No private sales |
IR | |
| 26857-201 | ThermoSight T-50 Thermal Weapon Sight | Visible | |
| 26857-202 | ThermoSight T-50 Thermal Weapon Sight | No |
Standard Accessories: Soft Case, Operators Manual, Quick Reference Card, Battery Cartridge, (3) CR 123 Lithium Batteries, Lens Cloth, Light Shroud/Eye Relief and Video Output Cable.
Product Description

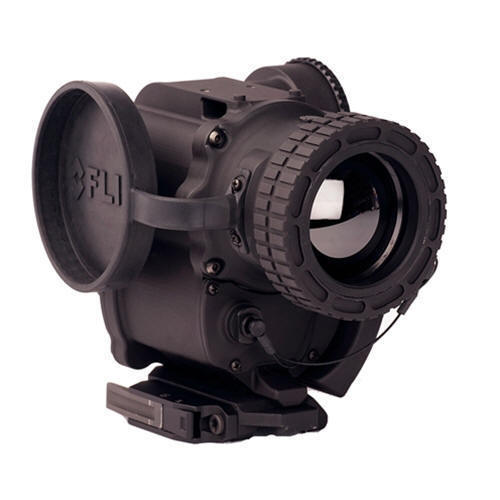

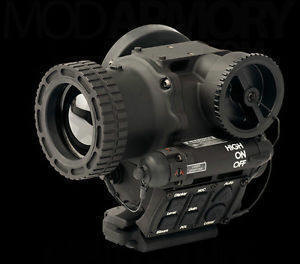

The FLIR ThermoSight® T50 is a Clip-on Thermal Weapon Sight that provides outstanding images in many environmental conditions day or night: fog, smoke, or dust. The T50 sits seamlessly on a standard Picatinny rail and is designed to work with day sights such as an ELCAN or ACOG while maintaining effective boresight. The unique peri-scope design allows the shooter to have a higher than rail sight picture which gives an unobstructed aiming point to the target.
There are many features of the ThermoSight® T50: reticles 3 different internal options which allow it to be used as a standalone weapon sight, on/off, display gain/brightness, polarity, eZoom 2X or 4X, and Stace digital enhancements. STACE technology is a high contrast and image sharpening enhancement software program which improves resolution and identification. The T50 is powered by (3) CR123 batteries for an operation run time of 9 hours.
The ThermoSight® T50 Thermal Weapon Sight has customized options for choice of laser (None, IR or Visible Red laser pointer). It is a US manufactured system and comes with a one year warranty.
Specifications
| Resolution | 320X240 |
| Frame Rate | 30 Hz |
| Spectral Response | 7-14 um |
| Thermal Sensitivity | 1mK |
| Field of View | 9.33 x 7 |
| Magnification | 1X, 2x, 4X |
| Image Display | 800x600 Mono OLED |
| Polarity Control | White Hot/Black Hot |
| Battery Type | 3 x CR123 Batteries |
| Weight | 23 oz (652 g) |
| Dimensions | 5.3" x 3.5" x 4.0" |
*Compatible with standard day optic. Designed to interface with day sights such as Trijicon Advanced Combat Optical Gunsight (ACOG) Model TA31, 4×32 presenting the soldier with the same field of view, keeps reticles calibrated, maintaining boresight.
*Longwave thermal imaging sensor. Provides crisp imagery through total darkness, fog, smoke, dust, and many other obscurants.
*Multi-use design. Offers mission flexibility for use as a thermal weapon sight and as a rugged hand held imager for a variety of scouting, surveillance, and covert operations.
*Rubber shroud. Ensures covert operation by eliminating illumination of the operator from the viewfinder.
*Small and lightweight. Highly portable design reduces operator fatigue.
*Simple operation. Large, rugged, single button controls for basic image adjustment, no complicated menus to navigate.
*No special batteries required. Runs on CR123 photo cells.
*Its all FLIR inside. FLIR controls the entire supply chain on the critical technology inside the ACTS ensuring fast service and long term support.
