MX-2 A1110 - Rugged Thermal Imager NSN: 5855-01-538-7994

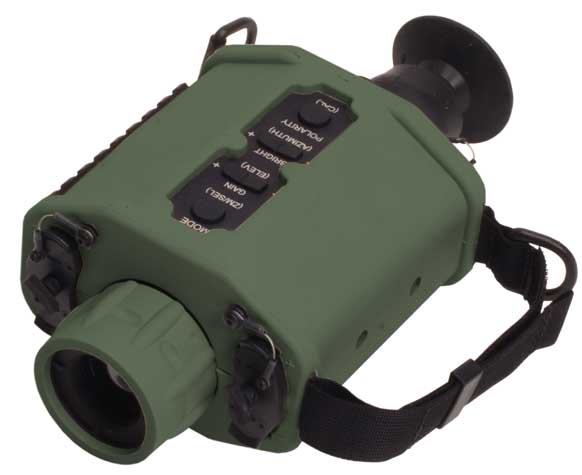

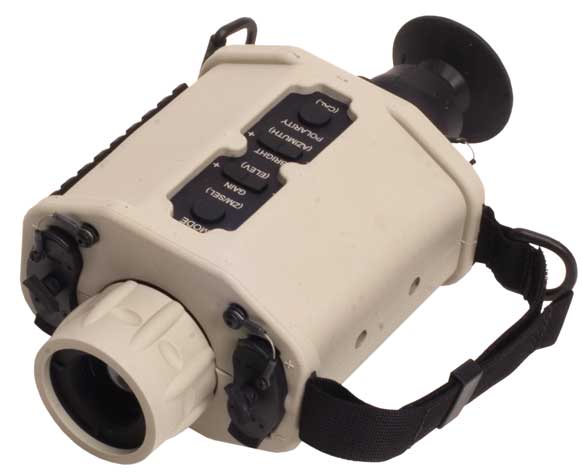

The MX-2A is a portable, lightweight, versatile thermal imaging camera
ideal for general reconnaissance, surveillance and routine patrol in the
field. It can be utilized as a handheld imager, for tripod mounted
surveillance or as a weapons mounted sight to meet the specific needs of
the mission.
Other units available are;
MX2A1210 25 mm lens AA batteries
MX2A2110 52 mm lens 123 batteries
MX2A2210 52 mm lens AA batteries
* 25 mm lens
* CR123 batteries (4)
* VOx Microbolometer - Vandium Oxide
* 320 x 240, 25 micron pitch
* Spectral Response 8 - 12 μm
* Thermal Sensitivity <50 mK
* Magnification 1X w/ 2X Digital Zoom
* FOV (H X V) 18˚ x 13.5˚ (at 1X)

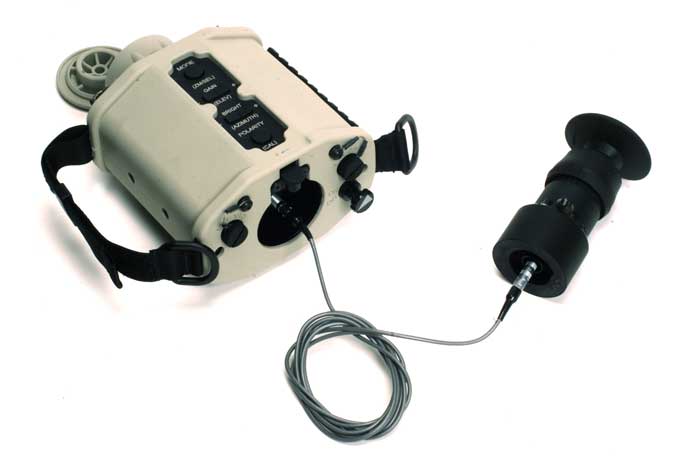

The rugged, exterior rubber boot gives the MX-2A a subdued, non-reflective exterior finish while protecting both the lens and imaging body from scratches, bangs, and rough use. The MX-2A is equipped with a removable eyepiece for remote and covert viewing over or around obstacles and hazards. Powered by (4) CR123 batteries or (4) AA batteries, the MX-2A uses the same thermal detector and objective lens as the US ARMY's Lightweight Thermal Weaponsight (LTWS).
