MSRP:
= $2,495.00 - $3,295.00
Gov't:
Call or
email for Discount
We
are required to adhere to a Minimum Advertised Price (MAP) by the
manufacturer, and anyone not listing this minimum price is breaking the
rules, so if you find a better price advertised anywhere, please let us
know and we will try to meet or beat that price!

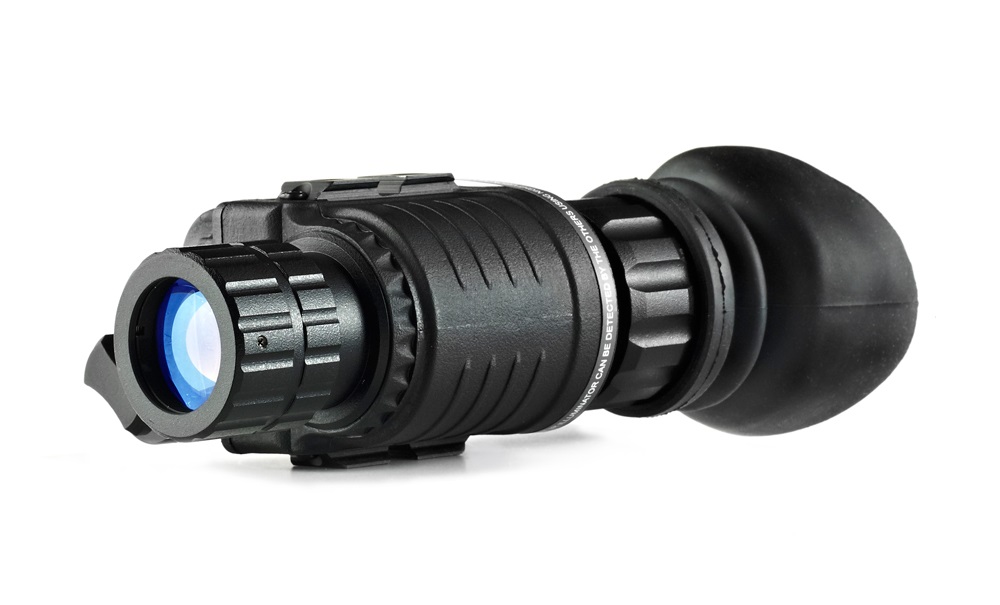

The ruggedly designed Ocelot 1.0x24 night vision monocular comes with many
useful features and it rivals well its pricier competition. The monocular is
extremely versatile, assembled with a selectable grade Gen 3 tube, and can be
operated as a handheld device, head, helmet or weapon mounted.
The Ocelot is operated by a single AA or CR-123 battery. This system has
Automatic Brightness Control and a built in 5MW IR Illuminator. There is also

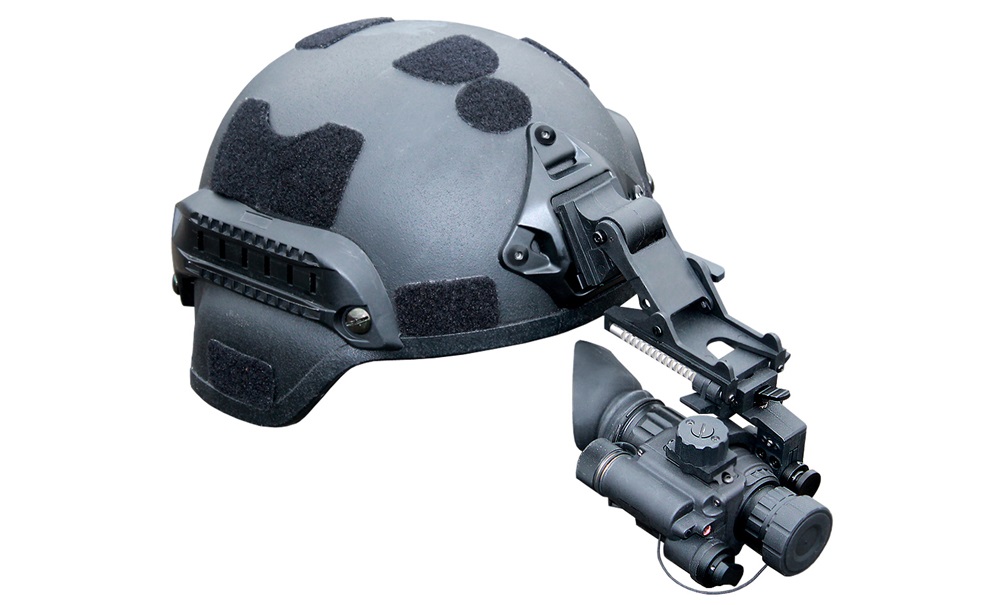

an internal “Low Battery” and “IR-ON” Indicators. The Ocelot will work with
the PASGT or MICH style helmet mount with the NV Mount Adapter.
The Ocelot may be assembled with 3.0x, 4.0x, 5.0x, 6.6x, 8.0x or 9.6x
magnifier lenses (sold separately) to further extend the viewing capability.

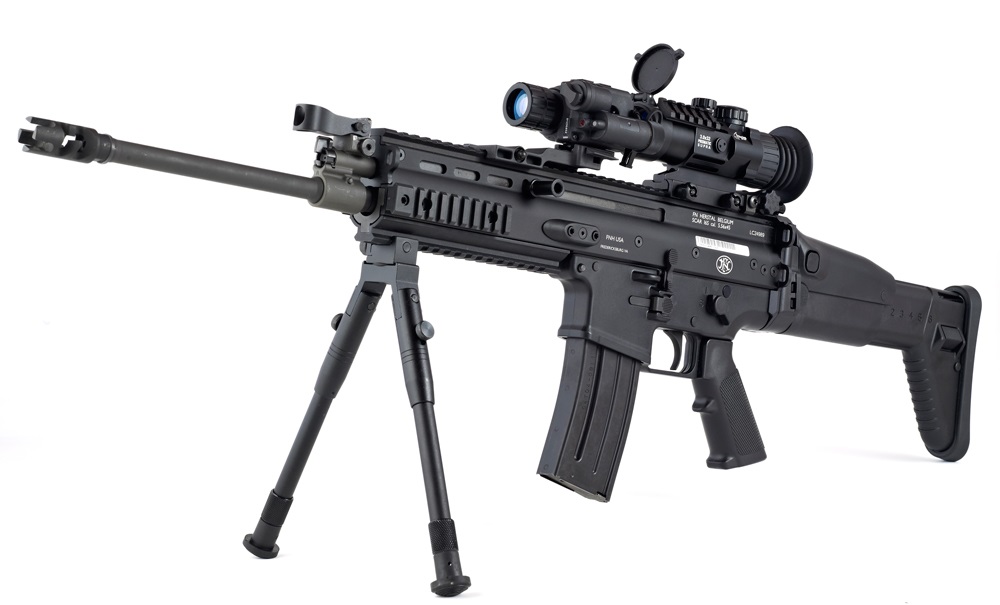

Other optional accessories include a Universal Head Gear, Helmet Gear, Weapon
Mount, Sacrificial Window, and Day Scope Coupler. Price and Part Numbers to
come.
|
SPECIFICATIONS |
||
|
Field of View |
40˚ |
|
|
Magnification |
Unity one power (1X) |
|
|
Diopter Adjustment |
+5 to -5 Diopters |
|
|
Eye Relief |
30mm |
|
|
Water Intrusion |
Meets IPX6 rating |
|
|
Objective Lens |
24mm |
|
|
Focus Range |
9.8" to ∞ (infinity) |
|
|
Power Source |
(1) AA or CR123 Battery |
|
|
Operation Time |
80 hrs (CR123) or 40 hrs (AA) |
|
|
Weight (w/o batteries) |
13.4 oz (380 g) |
|
|
Size |
4.5"L x 2.4"W x 1.7"H |
|
|
Warranty |
2 Years |
|
|
PART NUMBER |
DESCRIPTION |
|
|
OCELOT-ULT |
Pinnacle Ultra MIL-Spec Image Tube |
|
|
OCELOT-VG |
Pinnacle VG MIL-Spec Image Tube |
|
|
OCELOT-YG |
Pinnacle YG MIL-Spec Image Tube |
|
|
OCELOT-HP+ |
Pinnacle High Performance Tube |
|
|
OCELOT-P+ |
Pinnacle P+ Spec Tube |
|
|
OCELOT-P |
Pinnacle P Spec Tube |
|
|
OCELOT-WP |
Pinnacle White Phosphor Tube |
|
|
OCELOT-WHP |
Pinnacle High Performance White Phosphor Tube |
|
|
OCELOT-XLS-1 |
Non Gated Tube |
|
|
OCELOT-XLS-2 |
Non Gated Tube and Small Spot in Zone One |
|
| TUBE EXPECTATIONS - MAX & MIN SPECS | ||||||
|
GEN III |
OCELOT |
OCELOT |
OCELOT |
OCELOT MIL GRADE HP+ |
OCELOT |
OCELOT |
|
Power Supply: |
Pinnacle |
Pinnacle |
Pinnacle |
Pinnacle |
Pinnacle |
Pinnacle |
|
Signal to Noise Ratio: |
30.0 min. |
28.0 min. |
25.0 min. |
25.0 min. |
20.0 min. |
16.2 min. |
|
Photocathode Response: |
2400 min. |
2200 min. |
1800 min. |
2200 min. |
1750 min. |
1350 min. |
|
Halo: |
n/a ** |
n/a ** |
n/a ** |
n/a ** |
n/a ** |
n/a ** |
|
Electronic Background Input: |
2.5 max. |
2.5 max. |
2.5 max. |
2.5 max. |
2.5 max. |
2.5 max. |
|
Resolution: |
64 lp/mm min. |
64 lp/mm min. |
64 lp/mm min. |
64 lp/mm min. |
64 lp/mm min. |
57 lp/mm min. |
|
Max Spots Allowed in Each Zone, Spot Size (in.) |
ZONE |
ZONE |
ZONE |
ZONE |
ZONE |
ZONE |
|
...........>.012 - .015 |
0___0___0 |
0___0___0 |
0___0___0 |
0___0___0 |
0___0___0 |
0___0___0 |
|
...........>.009 - .012 |
0___0___0 |
0___0___0 |
0___0___0 |
0___0___0 |
0___0___0 |
0___0___1 |
|
...........>.006 - .009 |
0___0___1 |
0___0___1 |
0___1___1 |
0___0___1 |
0___1___1 |
0___2___2 |
|
...........>.003 - .006 |
0___0___2 |
0___0___2 |
0___2___2 |
0___0___2 |
0___2___2 |
0___2___3 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
WHITE PHOSPHOR |
OCELOT |
OCELOT |
|
|
OCELOT |
OCELOT |
|
Power Supply: |
Pinnacle |
Pinnacle |
|
|
Non Gated |
Non Gated |
|
Signal to Noise Ratio: |
25.0 min. |
16.2 min. |
|
|
16.2 min. |
16.2 min. |
|
Photocathode Response |
2200 min. |
1350 min. |
|
|
1350 min. |
1350 min. |
|
Halo: |
n/a ** |
n/a ** |
|
|
n/a ** |
n/a ** |
|
Electronic Background Input: |
2.5 max. |
2.5 max. |
|
|
2.5 max. |
2.5 max. |
|
Resolution: |
64 lp/mm min. |
57 lp/mm min. |
|
|
57 lp/mm min. |
57 lp/mm min. |
|
Max Spots Allowed in Each Zone, Spot Size (in.) |
ZONE |
ZONE |
|
|
ZONE |
ZONE |
|
...........>.012 - .015 |
0___0___0 |
0___0___0 |
|
|
0___0___0 |
0___0___0 |
|
...........>.009 - .012 |
0___0___0 |
0___0___1 |
|
|
0___0___1 |
0___0___1 |
|
...........>.006 - .009 |
0___1___1 |
0___2___2 |
|
|
0___2___2 |
0___2___2 |
|
...........>.003 - .006 |
0___2___2 |
0___2___3 |
|
|
0___2___3 |
1___2___3 |
|
|
|
|
|
|
|
small spot in Zone 1 |
