L3 Series G10

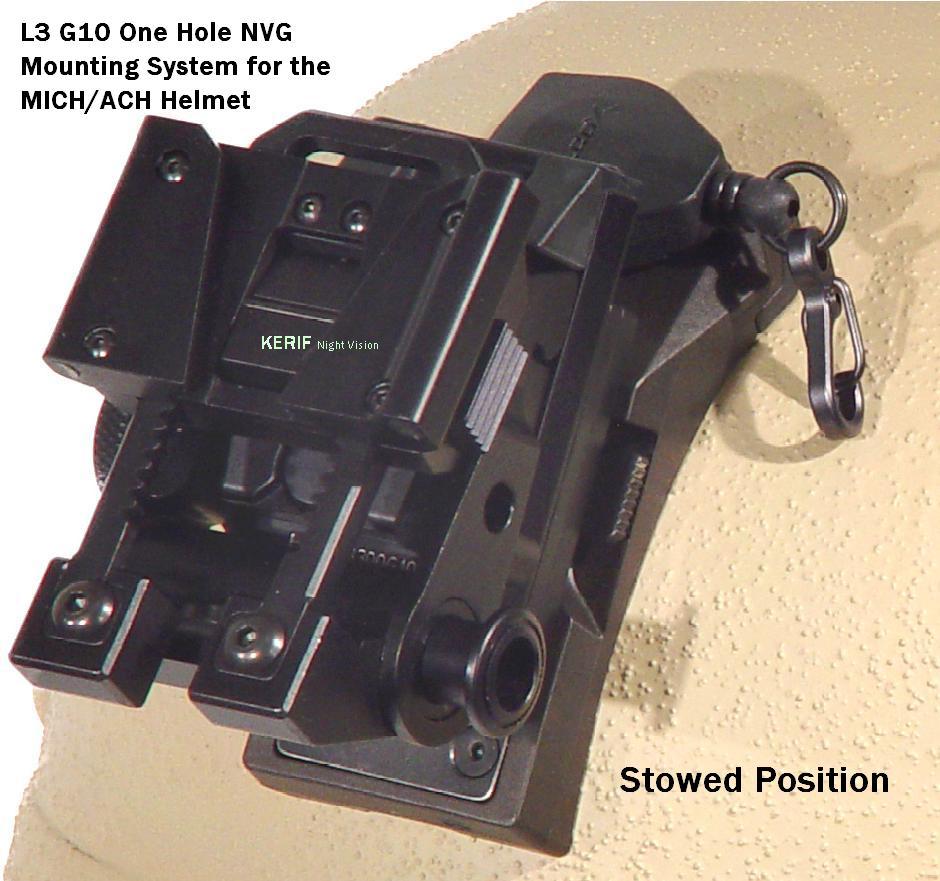

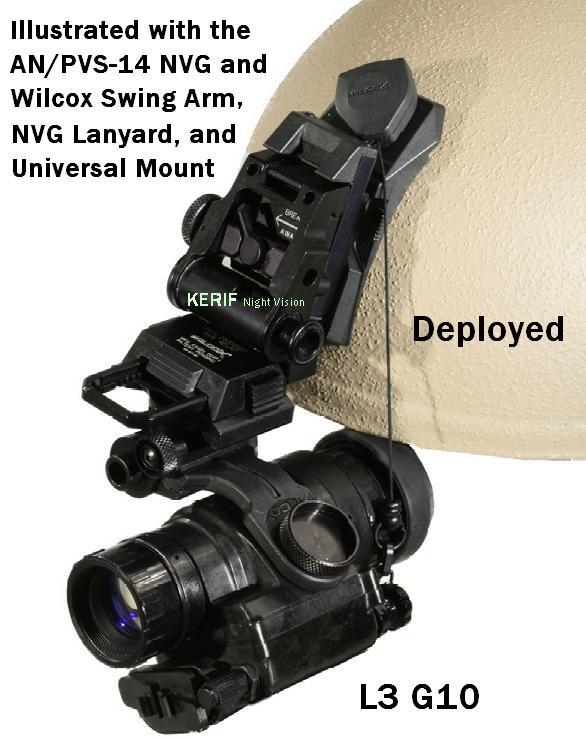

One Hole NVG Mounting Systems for MICH/ACH
The Wilcox L3 G10 One Hole Bracket with Integrated Breakaway Interface, NVG Lanyard, and Universal NVG Mount allows firm attachment to a MICH/ACH helmet drilled with the standard one-hole pattern. This NVG Mounting System is unique in that it provides three modes of operation. The first mode allows the Mount to “break away” from the base under a stressed condition, such as when prompted by interference during fast roping, maritime operations, hard impact or when entering or exiting mobility platforms. Without the Wilcox breakaway feature, the potential for induced neck injury and NVG breakage are increased. The second mode allows the Universal NVG Mount to securely lock the mount to the base. A third mode allows the Breakaway Base to pivot away from the Helmet Bracket by means of a locking bayonet interface when the NVG is not in use, further reducing weight and profile.
The L3 G10 One Hole Bracket with Integrated Breakaway Interface, NVG Lanyard, and Universal NVG Mount
|Weight||6.29 oz (180g) / 2.88 oz (80g) Universal NVG Mnt|
|Material Construction||Light Weight Aerospace Grade Metal|
|Accommodates NVG Suite||AN/PVS-7A, 7B & 7C, AN/PVS-14, 15, and 18|
|Vertical Height Adjustment||.900" Total Travel|
|Viewing to Stowed Position||117˚ of Travel|
|Finite Tilt Adjustment||0˚ to 20˚ Tilt|
|Fore/Aft Travel||1.100" Total Travel|
|Auto On-Off Feature||Applicable w/Wilcox AN/PVS Metal Interface Shoes|
The Wilcox NVG Mounting Systems Product Line is featured with a wide range of adjustments to customize the position of the Night Vision Goggle for proper eye position and relief.

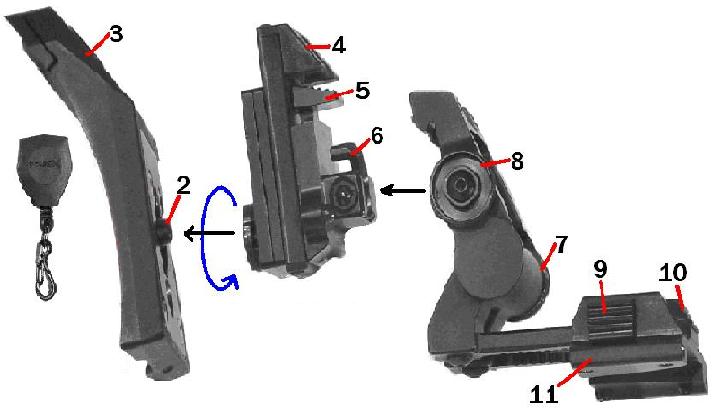

L3 G10 One Hole Bracket Components (See Above):
1) Secured to the MICH/ACH Helmet by one screw assembled from the inside of the helmet out (not shown).
2)A Locking Bayonet Interface allows the Breakaway Interface (Assembly 4, 5 & 6) to be dismounted from the Bracket for reduced snag.
3)A Lanyard Interface allows snap-on mounting of the Wilcox NVG Lanyard.
Integrated Breakaway Interface Components (See Above):
4)A NVG Mount Alignment Guide assists the operator in directing the Universal NVG Mount into place while wearing the MICH Helmet.
5) A unique Vertical Height Adjustment Button easily facilitates positioning NVG height up or down with a simple push of the button. No longer is it necessary to manually rotate a thumb screw to perform this function.
6)The Breakaway Switch allows the operator to easily set which mode (breakaway or locked) is desirable, depending upon operating conditions.
Universal NVG Mount Components (See Above):
7)An ergonomically placed Flip Button allows the Mount to “flip up” to a very low profile when stowed. This pivot mechanism is simple and robust by design and will not loosen over time.
8)A sleek, low profile Tilt Adjustment Knob allows for finite tilt adjustment of the NVG by the operator, then lock the position in place with a simple turn of the knob.
9)Two coinciding Fore/Aft Travel Release Buttons provide Fore/Aft NVG travel.
10) An ergonomically placed NVG Release Button allows for one handed release of the NVG.
11) A Magnet Switch is featured to facilitate the “Automatic Function” of the NVG.
• Breakaway Feature
allows Mount to Break Away under Stress, or to Securely Lock in Place by Means
of a Breakaway Switch
• Locking Bayonet Interface Allows the L3 Series Breakaway Base to be Fully Removed from the Bracket
• Detachable WilcoxNVG Lanyard (see TDS078) provides a Secure Attachment to an Array of NVG Devices Preventing Loss of the NVG and Breakaway of the Wilcox Universal NVG Mount from the Helmet Mount Base
• Each Mechanical
Adjustment is Durable and Ergonomically Positioned for Easy One-Handed
Operation While Handling a Weapon
• Maintains a Very Low
Profile Stance on the Helmet
• Flat Matte Finish
for Covertness in Combat Conditions
• Thousands of Mounts
of this Type Fielded to Date
• Combat Proven by the
US Special Operations Community and Domestic Law Enforcement Personnel
• Breakaway Universal
NVG Mount Interfaces with the Entire L2 Series of NVG Mounting Systems to
Include the NVG Three Hole MICH Helmet Bracket and NVG Skull/Head Mounting
• Design Approach Cuts Down on Logistics and Overall System Cost
28300G10 L3 G10 One Hole Bracket with Integrated Breakaway Base, NVG Lanyard and Universal NVG Mount for the MICH/ACH Helmet
28300G10AL3 G10 One Hole Bracket with Integrated Breakaway Base and NVG Lanyard for the MICH/ACH Helmet
28300G10BL3 G10 One Hole Bracket Only
28300G01Universal NVG Mount Only
