     Close and medium range engagements require lightweight, quick-to-point sights.  The  M332 provides a compact 32mm Objective with a 3x fixed magnification and illuminated ballistic reticle. A perfect match for any carbine or patrol rifle

    This is the smaller version of the rugged M536, ideal for carbines and patrol rifles in close- to medium-range encounters.

DISCONTINUED - OUT OF STOCK

Part#: 8788-556 3x32 Prism Sight 5.56 Reticle, UPC: 840229101832

Part#: 8788-762 3x32 Prism Sight 7.62 Reticle, UPC: 840229101825

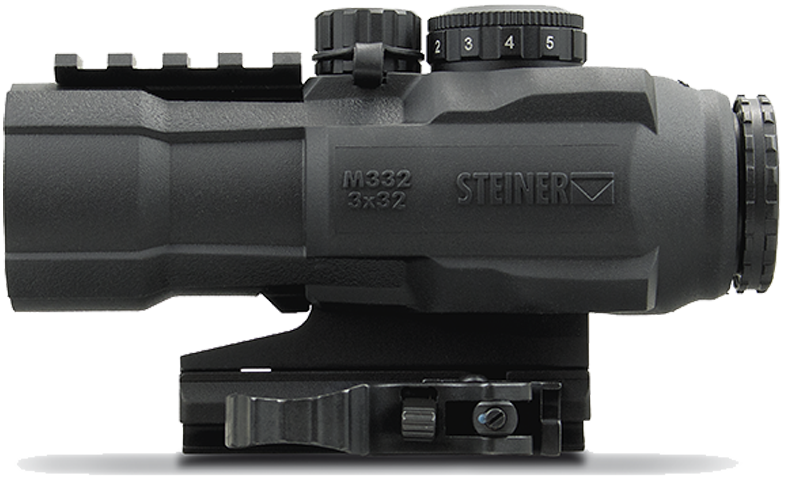

       The Steiner Military 3x32 Battle Sight is a tough, yet compact optic made particularly for assault rifles. With its 3X Magnification and Illuminated STEINER Rapid Dot Reticle, the M332 provides quick target acquisition for close-in or fast moving targets. The 3x32 also has easy to use bullet drop compensation features for when you need accurate shots out to 700m.

This sight delivers a generous 9.57 Degree FOV (Field of View) at 100m. https://www.steiner-optics.com/sites/default/files/m332-a.png      The Military 3x32 Battle Sight is Waterproof to 10 m (33 feet), Shockproof to 1,000 g's of force, Fogproof with fully multi-coated lenses for brightness and clarity. When non-illuminated, the reticle is black and when you need to enhance the brightness, you have 5 Daylight and 5 Night Vision Settings. The reticle can be used in various function areas and multiple brightness settings can be used depending on light conditions; non-illuminated, daylight, lowlight, and Night Vision modes for use with NVG's. The sight also comes with Front and Rear protective Flip-Up (or to the side) Lens Covers. For tactical versatility, the M332 and the M536 comes standard with an integrated Picatinny rail on the top for accessories. The STEINER MRS (Mini Red-Dot Sight) is a perfect fit for this rail as it offers a quick CQB 1X option. https://www.steiner-optics.com/sites/default/files/m332-h.png



https://www.steiner-optics.com/sites/default/files/_LTK5947_0_0.png

SPECIFICATIONS: M5Xi Operators Manual

Ordering Part# 8788-556 8788-762 8786-556 8786-762
Reticle Type Illuminated Ballistic
Magnification

3X

5X
Objective Lens Size

32mm (1.3")

56mm (1.3")
Reticle Color

Red

Finish

Rubberized Exterior, Black

Field of View (FOV) @ 100 yards

9.6 m (28.8')

Eye Relief

76mm (3.0")

Close Focus

Fixed at 100m

Length

140.5mm

Special Feature

Rapid Dot Illuminated Reticle

Weight

460g (16.2 oz)

Mount

MIL-STD-1913

Illuminated Reticle Yes Yes Yes Yes
Illumination Settings

10 Settings (5 Day/3 Medium/2 Night Vision)

Elevation Adj.

±25 MOA

Windage Adj.

±25 MOA

Rubber Armoring

Yes

Nitrogen Filled

Yes

Operating Temp Range

-13 Degrees F to +145 Degrees F

Flip-Up Lens Covers

Included

Waterproof/Fogproof/Shockproof

Submersible to 33'/Nitrogen Filled/Up to 1000g

Battery

CR2032

Battery Usage

200 Hrs @ High Setting/500 Hrs @ Medium Setting

Warranty

Heritage Warranty

Color

Black

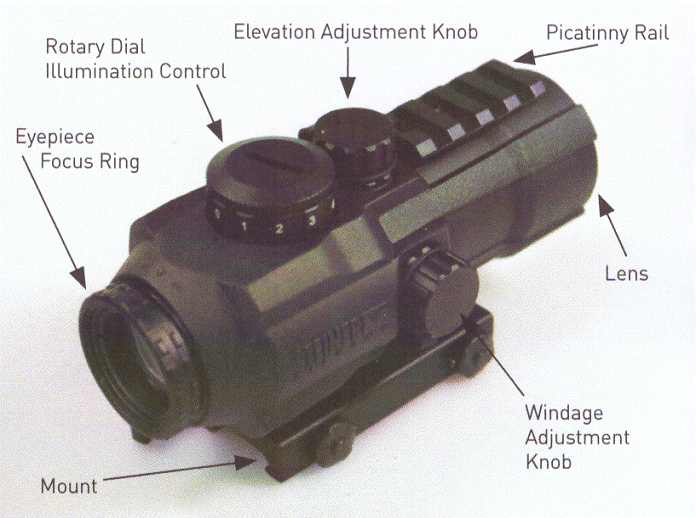

3X  MAGNIFICATION...for targeting out to 700 meters.

MULTI-COATED OBJECTIVE LENS...and Bak4 prism construction for sharp, high-contrast image.

ILLUMINATED BALLISTIC RETICLE...with 10 brightness settings for day/night operation.

FULLY ADJUSTABLE...up to +/- 50 MOA for elevation and windage.

PICATINNY BASE...on the top for mounting of an auxiliary sight for CQB operation.

QUICK DETACH MOUNT...adapts to any MIL-STD 1913 rail

WATERPROOF...submersible to 10 meters.

TESTED...to 1,000 Gs for shock and recoil resistance.

POWERED...by one CR2032 battery.



     The Military 3x32 Battle Sight is powered by a commercially available CR2032 Lithium battery that delivers 200 hours of life at the highest power settings and approximately 500 hours at the medium setting. The battery compartment is located inside the illumination selector knob on top of the sight.

     From the OFF position, there are five (5) daylight adjustment settings that can be chosen by turning the selection knob clockwise. By turning the selector knob counter-clockwise, you have three (3) levels of lowlight, shown as quarter moon icons, and two (2) Night Vision settings labeled NV1/NV2, which is used with Night Vision Devices, such as the AN/PVS-30, MUNS or similar device.

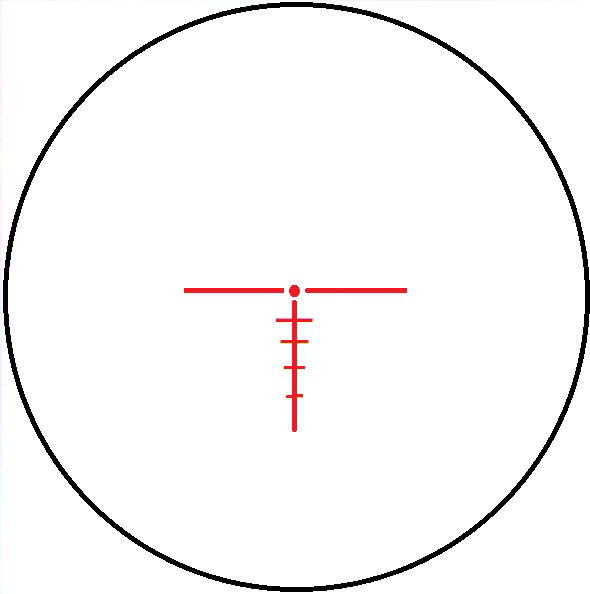

RETICLE

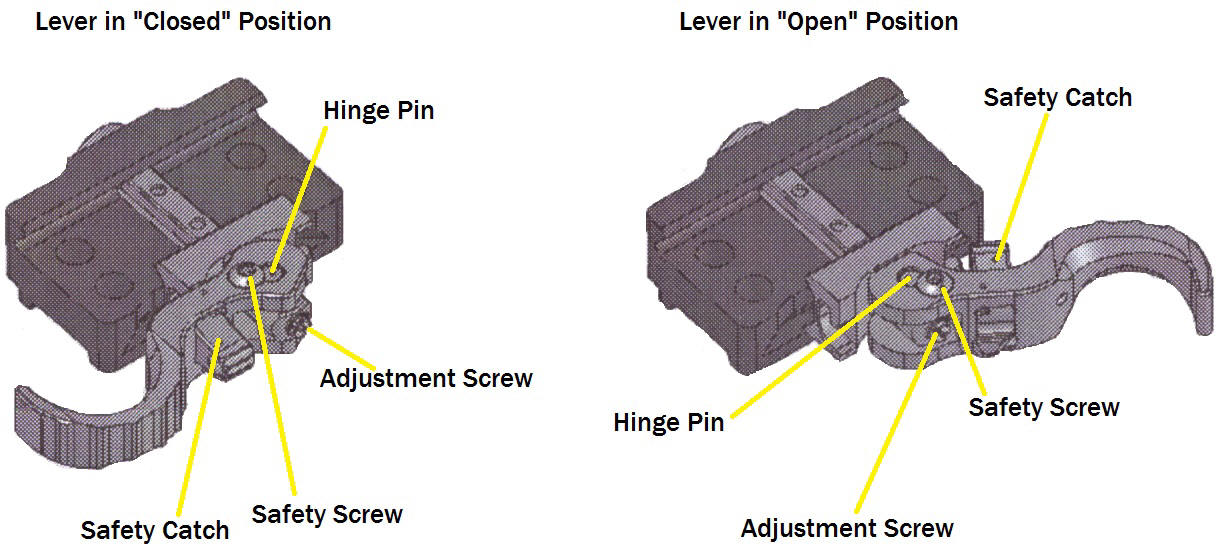

The ERA-TAC self locking levers allow a rifle scope or an accessory device to be mounted on a Picatinny Rail in a quick and easy manner. The adjustable lever allows a secure grip, even on Picatinny Rails which are out of spec. The positioning of the lever can be chosen deliberately.

OPERATION OF THE SELF LOCKING LEVER

  1. Open the lever: By pushing the unlock safety catch and bringing it to the "open" position.

  2. Close the lever: Bring the lever into the "closed" position; the safety catch snaps into place automatically

ADJUSTMENT OF THE SELF LOCKING LEVER

  1. Bring the lever into the "open" position.

  2. Choose the proper position of the mount on the Picatinny Rail and put the mount on

  3. Bring the lever into the "closed" position

  4. Adjust the gripping force by turning the adjustment screw with a screwdriver
    (CAUTION: DO NOT COMPLETELY REMOVE THE ADJUSTMENT SCREW AT ANY TIME!

  5. Check the gripping force of the lever by opening and closing it several times

CHANGING THE POSITION OF THE SELF LOCKING LEVER

  1. Bring the lever into the "open" position.

  2. Remove the Safety Screw with a Torx Key T10

  3. The hinge pin has a smaller and a larger diameter. At the smaller pin end, use a pointed chisel to carefully tap the hinge pin from the bore hole. The lever can now be detached

  4. Should the locking clamp be removed, pay close attention that the springs will properly fit back into the appropriate boreholes of the locking clamp when re-mounting it

  5. The hinge pin is made with a square side which serves as a guide for the cross bolt. It can be re-mounted only when properly aligned

  6. Now choose the desired position of the lever. When re-assembling; keep the lever in the "open" position and pressure it together with the locking clamp - contrary to the spring force - against the mount. In this position, the hinge pin can be re-mounted with the small diameter side going into the large diameter hole. It will only go in one way

  7. Screw in the safety screw with a screwdriver

  8. Check the function. Make sure there is sufficient gripping force of the lever by opening and closing the lever several times

SERVICING THE SELF LOCKING LEVER

As all the functional parts are surface treated; rust-proofness and optimal emergency operating features are given. In order to ensure proper function, all moveable parts must be lubricated from time to time depending on the way of employment of the mount (dust, sand, and moisture). The sliding surfaces of the lever and the claw of the locking clamp must be regularly lubricates with adequate grease. Periodically, dismount the self locking lever as described under "CHANGING THE POSITION OF THE SELF LOCKING LEVER" and clean and lubricate all moveable parts before re-mounting them.

PRACTICAL ADVICE

When using the mount on a Bolt Action Rifle, you must bring the mount to a stop by pushing it in the forward position (in the direction of fire) on the Picatinny Rail.
When using the mount on a Semi-Automatic Rifle, you must bring the mount to a stop by pushing it in the backward position (against the direction of fire) on the Picatinny Rail.






VIDEOS



  Safari
Part# Product Description  MSRP   Sale Price  UPC Code
2040 10x26 Safari (Formally PN: 4477) *NEW*     840229103157
2041 8x42 Safari *NEW*     840229103164
2042 10x42 Safari *NEW*     840229103171
  Marine
Part# Product Description  MSRP   Sale Price  UPC Code
575 7x50 Marine     000381805751
7655 7x50 Navigator Pro     840229100736
7155 7x50 Navigator Pro C     840229100712
2304 7x50 Commander     840229101207
2305 7x50 Commander C     840229101214
4961 7x50 Commander Global      000381849618
  Predator
Part# Product Description  MSRP   Sale Price  UPC Code
2441 8x22 Predator - DISCONTINUED     840229100668
2442 10x26 Predator     840229100675
2443 8x42 Predator      840229100682
2444 10x42 Predator     840229100699
  GS3 Rifle Scopes
Part# Product Description  MSRP   Sale Price  UPC Code
5004 2X-10X42mm S-1 Ret 30mm     000381850041
5005 3X-15X50mm S-1 Ret 30mm     000381850058
5006 3X-15X56mm S-1 Ret 30mm     000381850065
5007 4X-20X50mm S-7 Ret 30mm     000381850072
5008 4X-20X50mm S-1 Ret 30mm     000381850089
5009 2X-10X42mm 4A Ret 30mm     000381850096
5010 3X-15X50mm 4A Ret 30mm     000381850102
5011 3X-15X56mm 4A Ret 30mm     000381850119
5012 4X-20X50mm 4A Ret 30mm     000381850126
  HX
Part# Product Description  MSRP   Sale Price  UPC Code
2014 8x42 HX     840229101702
2015 10x42 HX     840229101719
2017 10x56 HX     840229101726
2018 15x56 HX     840229101146
  ShadowQuest
Part# Product Description  MSRP   Sale Price  UPC Code
2039 8x56 ShadowQuest *NEW*     840229103089
2047 10x56 ShadowQuest *NEW*     840229103102
  LRF 1700
Part# Product Description  MSRP   Sale Price  UPC Code
2315 Steiner LRF 1700 8x30 *NEW*     840229102990
  H4Xi Riflescopes
Part# Product Description  MSRP   Sale Price  UPC Code
5250 H4Xi 3-12X-56mm LRS *NEW*     000381852502
5251 H4Xi 4-16x-56mm LRS *NEW*     000381851123
   Military/Marine
Part# Product Description  MSRP   Sale Price  UPC Code
2033 8x30 MM830 (Formally PN: 280)     840229103102
2035 10x50 MM1050 (Formally PN: 210)     840229103119
2036 8x25 Mini Porro *NEW*     840229103126
2037 10x25 Mini Porro *NEW*     840229103133
2038 7x50 MM750 (Replaces PN: 5840)     840229103140
   P-Series Riflescopes
Part# Product Description  MSRP   Sale Price  UPC Code
5201  P4Xi 1x-4x24mm P3TR Reticle     000382152014
5202  P4Xi 1x-4x24mm P3TR Reticle (LE Only)      000381852021
5221  P4Xi 4-16x56 SCR Reticle)
  T Series Tactical
Part# Product Description  MSRP   Sale Price  UPC CODE
2003 8x24 T824 (Formally PN: 6502)     000381865021
2004 10x28 T1028 (Formally PN: 6504)     000381865045
2005 10x42 T1042 (Formally PN: 6506)     000381865069
2006 10x42 T1042r (Formally PN: 6508)     000381865083
  M-Series Military
Part# Product Description  MSRP   Sale Price  UPC Code
2682 10x50 M1050 LRF (Formally PN: 398)   000381803986
2670 15x80 M1580 (Formally PN: 415)     000381804150
2693 15x80 M1580c (Formally PN: 416)     000381804167
2675 20x80 M2080 (Formally PN: 420)     000381804204
2640 8x30 M830r (Formally PN: 481)     000381804815
2663 10x50 M1050r (SUMR) (Formally PN: 536)     000381805362
2650 7x50 M750r  (Formally PN: 538)     000381805386
539 7x50 M750r LPF Gen I  - DISCONTINUED     000381805393
2681 8x30 Military R LRF 1535 (Formally PN: 2626)      840229101597
2627 BT Adapter - M8x30r LRF 1535 *NEW*     840229102839
2690 7x50 M750rc (Formally PN: 5914)     840229102259
2651 7x50 M750r LPF Gen II (Formally PN: 6508/5913)     000381859136
2652 7x50 M750r LPF Gen III (Formally PN: 5914)     000381859143
2664 10x50 M1050r (SUMR) LPF Gen II (Formally PN: 5915)     000381859150
2665 10x50 M1050r (SUMR) LPF Gen III (Formally PN: 5916)     000381859167
2680 8x30 M830r LRF (Formally PN: 5918)     840229102211
  T- Series Riflescopes
Part# Product Description  MSRP   Sale Price  UPC Code
5101 1-5X24mm Rapid Dot 5.56 30mm     000381851017
5102 1-5X24mm Rapid Dot 7.62 30mm     000381851024
5112 3-15X50mm SCR 34mm     000381851123
5114 3-15X50mm SCR-MOA 34mm*NEW*     000381851147
5115 3-15X50mm Horus H59 34mm     000381851150
5122 5-25x56mm SCR 34mm     000381851222
5126 5-25x56mm SCR-MOA 34mm*NEW*     000381851260
  M-Series Riflescopes
Part# Product Description  MSRP   Sale Price  UPC Code
5525 5-25X56mm G2B Mil-Dot Reticle 34mm     000381855251
5550 5-25X56mm MSR Reticle 34mm     000381855503
5570 1-5X24mm Rapid Dot 7.62 Reticle 30mm     000381855701
5571 1-5X24mm Rapid Dot 5.56 Reticle 30mm     000381855718
5572 3-15X50mm G2B Mil-Dot Reticle 34mm     000381855725
5573 3-15X50mm MSR Reticle 34mm     000381855732
8704 5-25X56mm Horus H59 Reticle 34mm     840229101580
8704-T3 5-25x56mm Horus TReMoR3 Reticle 34mm     840229101962
8707-H59 3-15X50mm Horus H59 Reticle 34mm     840229101887
8707-T2 3-15X50mm Horus TReMoR2 Reticle 34mm     840229101894
8707-T3 3-15x50mm Horus TReMoR3 Reticle 34mm     840229101900
8708-556 M6Xi 1-6x24 Rapid Dot 5.56 CCW *NEW*     840229101009
8709 M5Xi 5-25x56 CCW/Horus TReMoR3 Coyote Brown     840229101474
  Battle Sights
Part# Product Description  MSRP   Sale Price  UPC Code
8501 R1X Reflex Sight     000381885012
8502 R1X Reflex Sight w/ QD Mount     000381885029

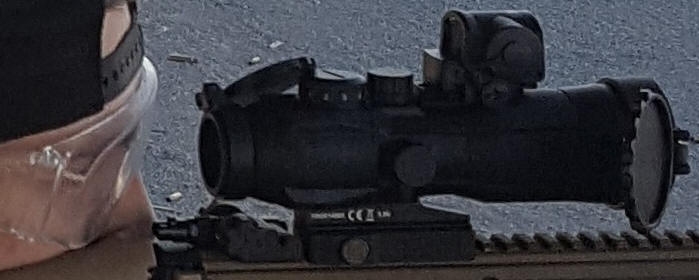

8700 Micro Reflex Sight (MRS)     840229101627
8790 Intelligent Combat Sight (ICS)     840229101474
8786-556 M536 5x36 Prism Sight 5.56 Ret     840229100941
8786-762 M536 5x36 Prism Sight 7.62 Ret     840229100934
8788-556 M332 3x32 Prism Sight 5.56 Ret     840229101832
8788-762 M332 3x32 Prism Sight 7.62 Ret     840229101825
  T-Series Scope Rings
Part# Product Description  MSRP   Sale Price  UPC Code
5960 T-Series Scope Rings 30mm Low     000381859605
5961 T-Series Scope Rings 30mm Medium     000381859616
5962 T-Series Scope Rings 30mm High     000381859627
5963 T-Series Scope Rings 30mm Extra High     000381859638
5964 T-Series Scope Rings 34mm Low     000381859649
5965 T-Series Scope Rings 34mm Medium      000381859650
5966 T-Series Scope Rings 34mm High     000381859662
5967 T-Series Scope Rings 34mm Extra High     000381859679
5970 T-Series Cantilever Mount, 30mm 35mm high *NEW*     000381859709
5971 T-Series Cantilever Mount, 30mm 40mm high *NEW*     000381859716
5972 T-Series Cantilever Mount, 34mm 40mm high *NEW*     000381859723
  Miniscope
Part# Product Description  MSRP   Sale Price  UPC Code
2311 8x22 Miniscope Monocular - DISCONTINUED     840229101641
  Safari Ultrasharp
Part# Product Description  MSRP   Sale Price  UPC Code
4457 8x22 Safari Ultrasharp- DISCONTINUED     000381822109
4477 10x26 Safari Ultrasharp- DISCONTINUED     000381822123
  XC
Part# Product Description  MSRP   Sale Price  UPC Code
2022 8x32 XC- DISCONTINUED     840229101283
2023 8x42 XC- DISCONTINUED     840229101290
2025 10x32 XC- DISCONTINUED     840229101313
2024 10x42 XC- DISCONTINUED     840229101306
  Wildlife XP
Part# Product Description  MSRP   Sale Price  UPC Code
2302 8x44 Wildlife XP- DISCONTINUED     840229101252
2303 10x44 Wildlife XP- DISCONTINUED     840229101269
  Nighthunter Xtreme Riflescopes
Part# Product Description  MSRP   Sale Price  UPC Code
6124 1x-5x24mm 4A-i- DISCONTINUED     000381861245
6142 1.6x-8x42mm 4A-i- DISCONTINUED     000381861429
6250 2x-10x50mm 4A-i- DISCONTINUED     000381862501
6356 3x-15x56mm 4A-i- DISCONTINUED     000381863560
   P Series Police
Part# Product Description  MSRP   Sale Price  UPC Code
2026 10x26 P1026- DISCONTINUED     840229101498
2027 10x42 P1042- DISCONTINUED     840229101504
2028 8x30 P830- DISCONTINUED     840229101511
2029 7x50 P750- DISCONTINUED     840229101528



Home | Contact Us | About KERIF |  Export Regulations | How to Order

KERIF Night Vision
(702) 324-6463  /  (702) 869-8451 FAX

sales@nitevis.com or kerifnightvision@earthlink.net
