Rugged, Weather Resistant Pan/Tilt Housing |
|
Enhanced 24° x 18° FOV, f/1.0 Lens |
|
Provide the powerful advantage of sight in the dark |
|
Easily Roof-Mounted on any vehicle or Marine Craft |
|
Monitor perimeters of restricted facilities, night or day |
|
Identify lost boaters or stray objects on the water |
|
Observe prowlers and criminals without their knowledge |
|

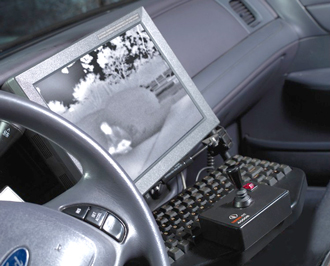

NTSC Video out for remote monitor or recording device |
|
Quickly scan between homes, buildings, alleys or even under vehicles |
***DISCONTINUED***
See NOPTIC
PSV-1000 for Vehicle Mounted Thermal Imagers
P/N: 1000325-0001

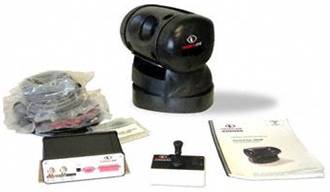

Ships with: 4 Cable Set, Electronic Box, Mounting Ring, Hand Controller, Install Hardware
FUNCTIONAL OVERVIEW

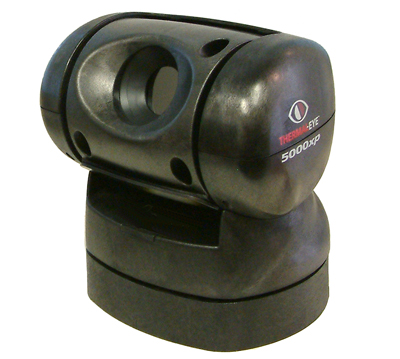

The Thermal-Eye 5000xp is the newest addition to the Thermal-Eye family of infrared thermal imaging systems from L-3 CIP. Similar to the Thermal-Eye 4000M, the 5000xp has additional design accommodations to withstand the harsher environments of marine applications. It is composed of the Pan/Tilt Camera, the Electronics Module, the Handcontroller, and four 25' interconnect cables.
The Pan/Tilt Camera contains the infrared sensor and conversion electronics which sends signal information of the infrared scene to the Electronics Module for further processing. The captured infrared scene, now converted to a real-time black/white video signal, is sent to the Video Monitor or recorder, thru two available output ports on the Electronics Module.
Pan/Tilt command signals are received from the Handcontroller, processed thru the Electronics Module, and sent to control the left/right (pan) or up/down (tilt) positioning of the Pan/Tilt Camera. The Pan/Tilt Camera can be panned continuously a full 360 degrees and tilted down, or up to a full-closed position. HOME and STOW pan positions are built in upon turn-on/turn-off for user convenience and protection of the camera. Current pan position is displayed in the lower left corner of the video in a clock-type format.
DC power is supplied thru the red/black Power Cable to the system at the 2-pin power input on the Electronics Module. The 9-pin Handcontroller Cable, the 25-pin System Cable, and the Video Cables pass signal information between the system components. Fuse protection is also provided.
INFRARED IMAGING AND APPLICATIONS
Visible light, the rainbow of colors that can be sensed by the human eye, is
electromagnetic radiation within a certain frequency band. 'Infra-' means
'below' and 'red' is the lowest frequency in the visible spectrum. Hence,
'infrared' (or 'IR') refers to that range of electromagnetic wavelengths just
below that capable of sight by the human eye. In the IR range, energy from a
scene is not sensed by sight (light) but rather by temperature.
Most objects that you see are not radiating visible light but instead, are reflecting light radiated from another source. Most objects have to be heated to extreme temperatures before they radiate energy in the visible light spectrum. However, energy in the infrared range is being radiated by all objects that are above absolute zero (-459F). Hence, everything has a thermal signature, regardless of light conditions.
The Thermal-Eye 5000xp infrared detecting system distinguishes between very small differences in thermal (infrared) radiation, converts it to electrical signals, amplifies those differences, and reproduces them correspondingly in the visible light (video) range. Powerful advantages are achieved in being able to turn a pitch black night into a black and white TV image of the scene. As your infrared knowledge and experience grows, further applications will develop as you recognize heat clues beyond the naked eye in both day and night conditions.
Some advantages and success stories that can be achieved thru application of your Thermal-Eye 5000xp are:
| See without being seen. Allows stealth surveillance and approach from within safety of vehicle. |
| Element of surprise gives better situational control. Reduces opportunity for suspect flight and high speed chases. |
| Night viewing by sight requires flashlights and searchlights which reveals the pursuer's position, giving advantage to the suspect who wants to stay hidden or surprise attack. Infrared viewing allows safer search capability while the suspect remains 'in the dark'. |
| In search and rescue, seconds count. Missing or injured persons can be located before lengthy search deployments are required. |
| Docks, piers, boats, and other obstacles can all present
dangerous hazards to marine navigation especially at night or in fog. With the Thermal-Eye 5000xp, these objects are clearly visible against the uniform temperature of the surrounding water. |

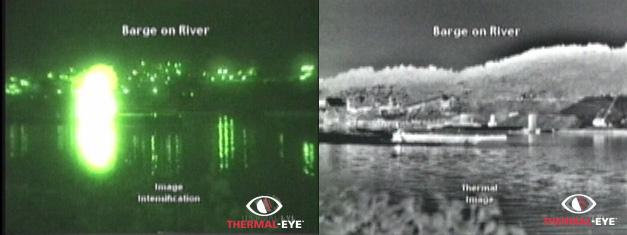

| Infrared won't 'bloom' or become blinded when hit with
bright light such as headlights. |
| Wide areas can be scanned to 'clear an area', establish a perimeter or more quickly locate a missing person or "man-overboard". |
| An area can be brought under control in less time. |
| Manpower and equipment resources are saved by reducing the need for foot patrol, K-9, helicopter, and flashlight expenses. |
| Warmth on a car's engine compartment or tires yields evidence of when it was last driven. |
| A hot car hidden in a cold parking lot stands out. Also, a suspect vehicle that is cold might be considered abandoned, reducing the chance and need to wait for his return. |
| Buoys and markers are easily "seen", even in pitch black or poor weather, allowing for efficient navigation. |
EFFECTIVENESS
| While light reflects off of foliage, infrared from a person behind a bush is radiated through the foliage, allowing better detection in both day and night conditions. |
| Tossed weapons and contraband are thermally evident against cold ground. |
| Accident investigations yield heat clues in latent tire tracks and skid marks, unseen by sight. |
| IR reflects off windows, metal structures, smooth concrete walls, and other opaque surfaces providing a mirroring ability around corners in day or night. |
| Air gaps and surfaces touching each other can give heat clues as to hidden compartments, fluid levels, etc. |
| Infrared is less prone to scattering and absorption by
smoke, dust, and fog. |
| Infrared Focal Plane Array | |
| Type & Material | Uncooled Ferroelectric, Barium Strontium Titanate (BST) |
| Resolution/Pitch | 320 x 240 /48.5μm |
| Spectral Response | 7 - 14μm |
| Window Type | Silicon w/durable hard carbon exterior coating |
| Thermal Imaging Performance | |
| Start-Up Time | ~ 45 seconds*Note 1 |
| Contrast/Brightness | Fully Automatic |
| Detection Range | Man-Sized Target at 1500ft (450m) |
| Input Voltage | 9 to 16 VDC |
| Power Consumption | ≤6W (Nominal) |
| Max Current Req'd. | 3 Amperes |
| Optics | |
| Field of View | 24° x 18° (f/1.0) |
| Min. Focus Distance | ~ 25ft (8m) |
| Focus Method | Fixed, Automatically Compensates for Temperature Variations |
| Aperature | f/1.0 |
| Infrared Video | |
| Output Format | NTSC Compatible |
| IR Polarity | White Hot |
| Pan/Tilt Functions | |
|
Pan Travel Tilt Travel (Horizontal) |
Pan/Joystick Controlled, 360° Continuous Tilt/Joystick Controlled -20° to 180° |
| Pan Rate (Nominal) | 36°/second (Max)/Single Speed Control |
| Tilt Rate (Nominal) | 6° /second |
HOME Position
STOW Position |
Automatic to Forward at Turn On
|
| DIMENSIONS | |
|
Length Width Height Weight Rotational Clearance |
11.1" (282mm) 11" (280mm) 11.4" (290mm) 10lbs (4.7kg) 13.5" (343mm) Diameter |
| Options and Accessories | |
| Vehicle Mount Package | Thermal Camera, Pan/Tilt Housing, Electronics Box, Joystick Controller, Operator Manual, Black |
| Video Monitor | 5.6" LCD Flat Panel Monitor Kit |
| Roof Rack | Mounting Bar (No Holes) and Strap Kit. Vehicle Year, Make, and Model required when ordering |
| ENVIRONMENTAL DATA | |
| Temperature Range | -40ºC to 55ºC (-40ºF to +130ºF) |
| Max Storage Temp. | -80ºC (176ºF) |
| Water Resistance | IEC Level IPX6 (Not Submersible) |
| EMI/EMC | FCC Part 15 Compliant*Note 2 |
| Part Numbers | |
| Roof Bar (White) | 3264568-0001 |
Roof Bar (Black) |
3264568-0002 |
5.6" LCD Flat
Panel Monitor Kit |
3197573-0004 |
| Dual Remote Kit | 1000340-0001 |
|
NOTE 1: Video not present during the first 45 seconds after system turn on. NOTE 2: (FCC Compliance) This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. |
|
Theft and Vandalism Deterrence

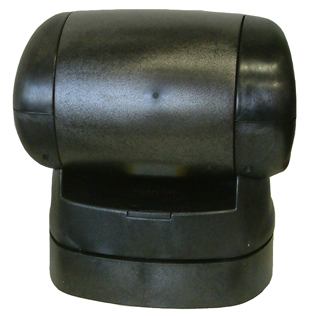

The Thermal-Eye 5000xp method of installation was designed to provide no visible, external mounting hardware. As an additional feature, the camera can be brought to a fully closed, hidden position by commanding the Handcontroller to the full-up position.
Storage
Thermal-Eye 5000xp can be stored at temperatures up to 176°F (80°C).
Shipping
In the event your Thermal-Eye 5000xp must be shipped and the original container is unavailable, assure adequate pack material is present around components to protect against rubbing and impacts. Roll the Pan/Tilt Camera to the full-up and closed tilt position to help protect optics.
Power
Thermal-Eye 5000xp requires a power source between 9 to 16VDC that is capable of delivering at least 3 amps (12VDC is nominal). Thermal-Eye 5000xp is designed for use with a negative ground system. Improper connection could result in equipment damage.
Servicing
Do not attempt to service the Thermal-Eye system as it may void the warranty. The Thermal-Eye 5000xp is not intended or warranted for the following environmental conditions.
RESTRICTIONS OF USE
| Repeated exposure and operation in sand or other abrasive grit. |
| Mounting orientations other than upright for the Pan/Tilt Camera. |
| High vibration or shock beyond that of typical on-road, off-road, or sea-faring vessel conditions. |
| Outdoor exposure to the elements for the Electronics Module. |
| Applications that subject front of Pan/Tilt Camera to oncoming debris capable of breaking the front optics such as rocks and low hanging branches. (See 'Debris Protection' feature in Care and Maintenance section). During such conditions, the unit should be turned "off" at Handcontroller to engage automatic stow-to-rear positioning for protection of camera. |
| Submersion of any part of the Thermal-Eye 5000xp system. |
