ELCAN's ELC145 3.4X Combat Optical Sights
(
Click
to Enlarge Image)
***Available to all Domestic US Customers***
ELCM145C M240/M249 Reticle,
Torque Knob Mount
NSN: 1240-01-411-6350 MSRP: 1,622..00
KERIF Price:$1,372.00
Law
Enforcement/Military *Please
call or
email for discounts*
The M145 is also available in the following configurations

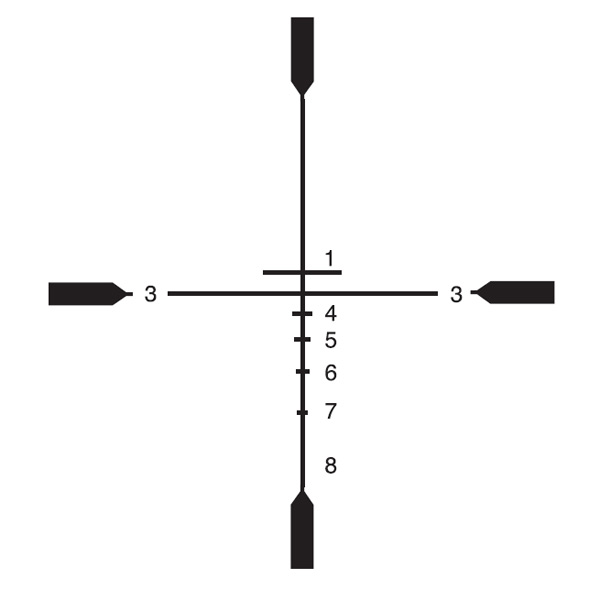

ELCM145M4 M4 Reticle, Torque
Knob Mount
ELCM145M4W M4 Reticle, 5.56 NATO
Wingnut Mount
* Black Finish, Rubber Armored and Rugged
* MIL-SPEC Rated Waterproof to 20 Meters (66 Feet) for 2 Hours
* Retains Zero Time-After-Time for Dependability with your Accuracy
* Torque Knob Mount (Included) fits any MIL-STD-1913 Picatinny Rail
* Rubber Lens Covers and Anti-Reflection Device (ARD) is Included
* Military members may order optional LASER Filters
* LED Illuminated Reticle Center for M240/M249 Machine Guns
* 1 Year Warranty
The
ELCAN M145C 3.4x Combat Optical Sight,
M240/M249 Reticle, Torque Knob Mount (ELCM145C) was developed
specifically for the U.S. Army to be used as the main battle sight for their
M240 and M249 machine guns.
For Military applications the
front objective can be fitted with a LASER Filter and Anti Reflection Device or
ARD. The ARD and Lens covers are standard equipment that is included for all
customers.
The Rotary
Knob on the side has 1 Off position and can be adjusted through 11 Brightness
settings for the illuminated 10 - 1200m Ranging Reticle. Rear and front lens
covers flip down for storage and transportation.
The
Torque Knob models incorporate ballistic compensation in the Reticle only.
This sight can be mounted to any MIL-STD-1913 rail in seconds, and will retain
zero when removed and re-attached to your weapon, time after time. This is the
kind of dependability that you should come to expect from ELCAN. The M145C
is built to stringent specifications and is designed for extreme-duty
applications where only the most rugged equipment will suffice.

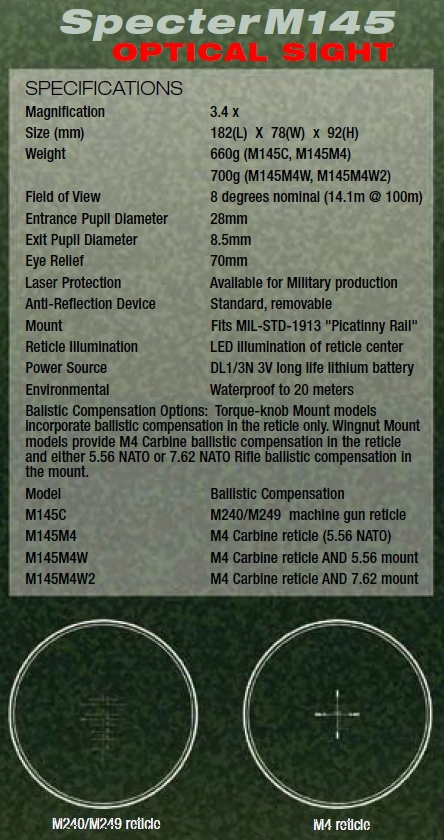

| ELCM145C System Technical Specifications | ||
|
Eye Relief
|
● | 70mm |
|
FOV
Field of View
|
● | 8º nominal 14.1m(146.3')@100yds |
|
Apparent
FOV
|
● | 27.2º |
|
Magnification
|
● | 3.4X |
|
LASER
Protection
|
● | Military Production Only |
| ARD | ● | Standard, Removable |
|
Ballistic Compensation
|
● | Blended 7.62/5.56 NATO M240/M249 Machine Gun Reticle |
|

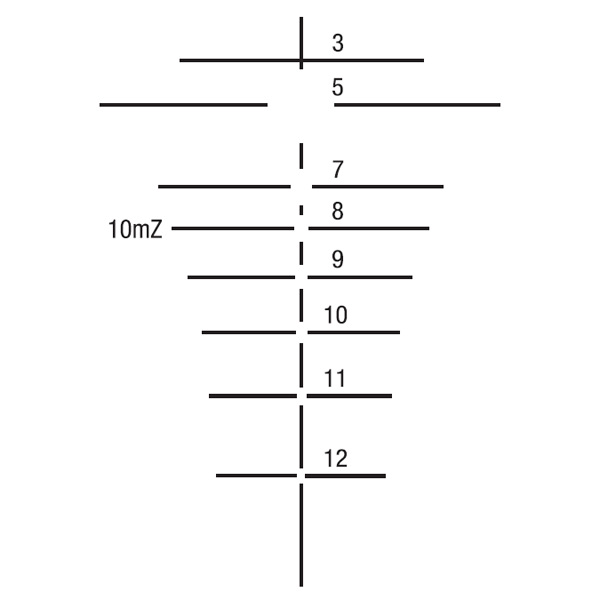

Reticle:
M240/M249
|
● |
Calibrated
Crosshair with Range Estimation US Army Machine Gun Ranging Reticle, Center Illuminated Ballistic Calibration 300 - 1200 m |
|
Reticle
Illumination
|
● | LED illumination of center reticle, 11 Brightness Settings |
|
Mount.
|
● | MIL-STD-1913 Picatinny Rail Base Requirement |
|
Attachment
|
● | US Army Torque Knob |
|
Weight
|
● | 1.455 lbs. (660g), 23.28 oz. |
|
Size in mm
|
● | 182(L) x 78(W) x 92(H) |
|
Size in inches
|
● | 7.165(L) x 3.071(W) x 3.622(H) |
|
Internal Battery
|
● | DL 1/3 N, 3V Lithium (Included) |
|
Entrance Pupil Dia.
|
● | 28mm (1.102") |
|
Exit Pupil Dia.
|
● | 8.5mm (.3346") |
|
Purging
|
● | Dry Nitrogen Purged |
|
Fixed Focus Range
|
● | 20m (21.87 yards) to ∞ (infinity) |
|
Adjustment Range
|
● | 0.25 mil detent zeroing adjustments |
|
Line of
Sight
|
● | Identical to ELCAN Optical Sight ≈ M16/AR15 Iron Sight |
|
Battery Life
|
● | 175 hours typical |
|
Exterior Finish
|
● | Black Anodized w/Chemical Resistant Rubber Armor Casing |
|
Operating Temp
|
● | -50°F to +120°F (-45°C to + 49°C) |
|
Waterproof
|
● | 20 m (66') for 2 hours |
|
Shockproof
|
● | Designed to survive standardized NATO drop test |

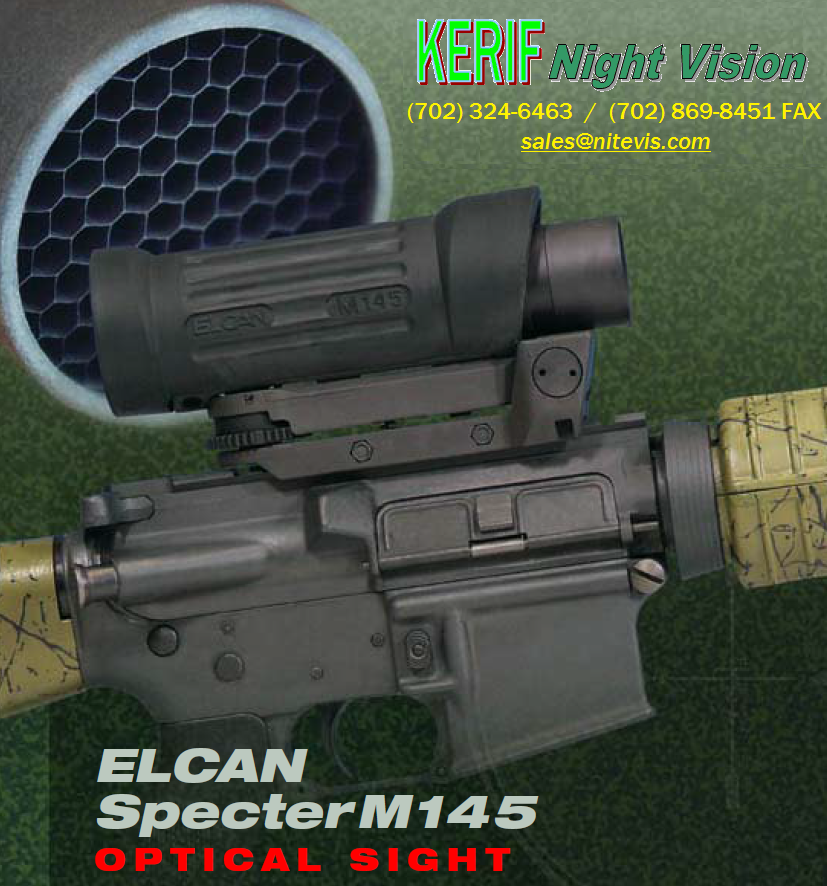

The Elcan
SpecterM145C Optical Sight combines ELCAN's legendary robustness and
optical brilliance with a ballistically calibrated LED-illuminated
ranging reticle. It is designed for application to Machine Guns, M4
Carbines, M16/AR15 and AR10 rifles and has been proven to withstand the
rigors of modern combat.
The
ELCAN M145C has proven its effectiveness on a variety of high-powered
rifles and machine guns, permitting tracer rounds and fall of shot to be
clearly seen at extended ranges.
Other ELCAN sights you may want to look at are listed below.
ELCAN
SpecterDR NSN: 1240-01-533-0939 SOF Overrun 1X-4X
Articulated Telescope SU-230/PVS-C
(5.56)
MSRP:
$2,385.00
Military Discounted Price: $2,146.50 You save 10%
NO COMMERCIAL SALES
U.S. Military Only
PLUS FREE ACCESSORIES: Black Soft Case, Bikini-Style Lens
Cover, Lens Cleaning Kit, 3V Lithium Battery, and OPMAN
*The Ultimate CQB Sight Kit*
SpecterDR Dual Role 1X to 4X Combat Sight
(Click to Enlarge Image)
***Available to all
Domestic US Customers***
DVOV14-C1
5.56 Reticle MSRP:$2,385.00
KERIF Price:$1,973.00
DVOV14-C2
7.62 Reticle MSRP:$2,385.00
KERIF Price:$1,973.00
Law
Enforcement/Military *Please
call or
email for discounts*
Also Available in higher Magnification 1.5X to 6X Models
DVOV156-C1
5.56 MSRP:$3,064.00
KERIF Price:$2,535.00
Law Enforcement/Military *Please
call or
email for discounts*
DVOV156-C2
7.62 MSRP:$3,064.00
KERIF Price:$2,535.00
Law Enforcement/Military *Please
call or
email for discounts*
Now Available in a Less Expensive Single Field of View 4X
SFOV4-A1
5.56 MSRP:$1,447.00
KERIF Price:$1,199.00
Law Enforcement/Military *Please
call or
email for discounts*
SFOV4-C1 5.56 MSRP:$1,447.00
KERIF Price:$1,199.00
Law Enforcement/Military *Please
call or
email for discounts*

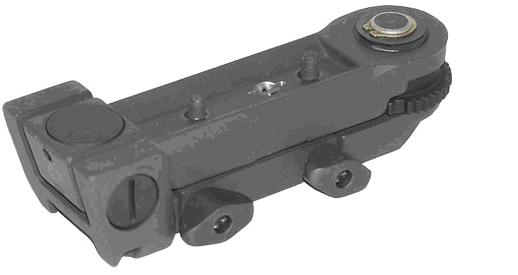

ELC556MT
Elcan Gen-4 SSL Optical Sight Mount (.223)
MSRP: $542.00,
KERIF Price: $463.00
Gov't/Law Enforcement: $Call for Quote
ELC145MT
Elcan Torque Knob Optical Sight Mount
MSRP:
$728.00,
KERIF Price: $612.00
Law Enforcement/Military *Please
call or
email for discounts*
| Specifications | |||
|---|---|---|---|
| Weight: oz,(g): | 11oz., (300 grams) | ||
| Size (mm): | 5.16" x 1.93" x 1.38", (131 x 49 x 35) | ||
| Base Requirement: | MIL-STD-1913 "Picatinny Rail" | ||
| Base Attachment: | clamping foot with metal wing nuts | ||
| Windage and Elevation: | 0.25 mil detent zeroing adjustments | ||
| Elevation Adjustment Range: | 50 mils | ||
| Windage Adjustment Range: | 45 mils | ||
| Surface Finish: | Grey/Black hard anodized | ||
| Instrument Attachment: | 120° V-block with (2) M5x0.8mm pitch hold-down cap screws, 38mm spacing on long-axis centerline | ||
| Durability: | Designed to withstand a drop of 5 feet onto concrete while attached to an 17.6 lb weapon | ||
