Why choose between a Red Dot or Telescopic sight when you can have both in the Blink of an Eye?
The SpecterDR Dual Fields-of-View (DFOV) sight provides both close quarter and precision fire ranged capability in a single package.
Whether utilizing the Red Dot in 1x or 1.5x magnification or the ranging reticle in 4x or 6x mode, the SpecterDR DFOV sight provides ultra-wide viewing angles for optimal situational awareness and unmatched low-light performance. The SpecterDR DFOV sight allows the user to safely and effectively transition in and out of building for close quarter or extended range without changing sights.
The 1x or 1.5x FOV provides a generous viewing angle (24° in the 1-4x and 16° in the 1.5-6x version) and an extremely fast, "both eyes open" target acquisition capability.
The second FOV provides 4x or 6x magnified sight (FOV 6° & 4° respectively), a range compensating reticle, long-range target identification and precision marksmanship capability.
The two unique fields-of-view are easily and quickly interchanged by means of the patent-pending, locking lever mechanism on the side of the optical housing.

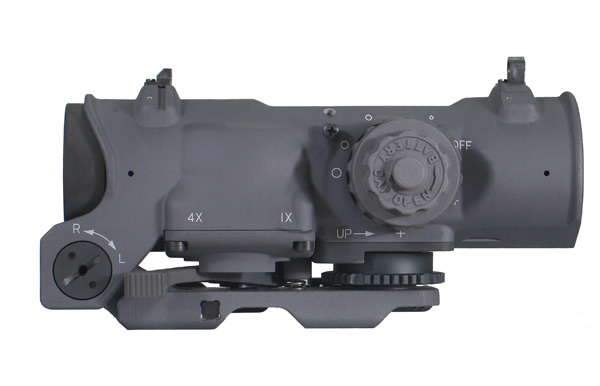

ELCAN Dual Field of View 1X - 4X SpecterDR, Black
(Click to Enlarge Image) ***Available to all Domestic US Customers***
INVERTED CHEVRON*

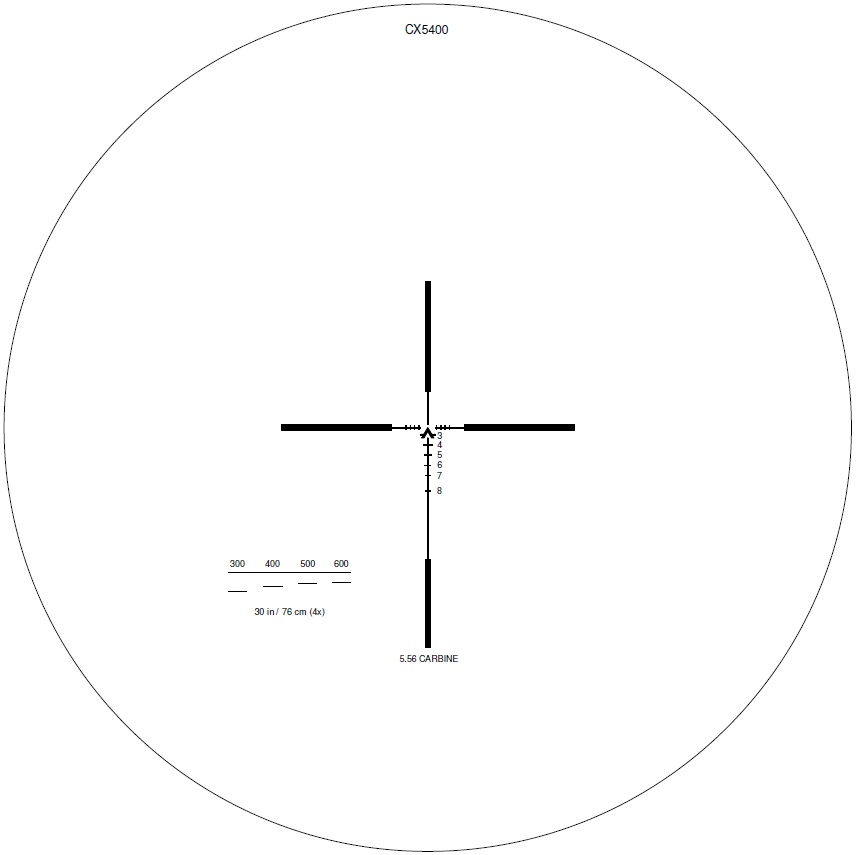

DFOV14-C3A CX5400 (5.56) Ballistic Reticle
SOLD OUT
******
*HUGE DISCOUNTS**SAME DAY FREE SHIPPING*
CAGE: 36BD2 DUNS: 105547512 EIN: 04-3601737
The new Limited Edition ELCAN SpecterDR DFOV14-C3A optical sight is now available. Stock is very limited, so call or email us today and ask us about our discounts. Dealers Welcome. We offer the most competitive prices anywhere and our customer service is untouchable. Call (702) 324-6463 today to get your sight as there is a great demand for them and there is no guarantee that this will be available much longer if (when) they are sold out.
We currently have stock on a special model that was developed with an inverted Chevron and we are now in a position to offer them to our customers. The part number of this model is DFOV14-C3A; the unit is identical to the DFOV14-C1 except for the chevron reticle which you can see below.
(Click to Enlarge)
As this is a "special run", when they are gone they are gone and we will not be offering them again. The product will still carry the same warranty support and are as mentioned identical in function as the standard DFOV14-C1.
ELCAN does not make a scope with a collector in mind. Every single scope that we sell goes through a battery of MIL performance tests and unfortunately sometimes this causes some dings that are touched up as best they can be prior to final acceptance. In addition, the materials that are used are not all uniform as they are selected based on material requirements and then need to be Class III hard anodized which is not the good looking anodize, but the hard surface that is nearly impossible to color match. We can only please those that need superior optical performance that meets MILSPEC environmental requirements."
Features
Switches instantly from close combat (1x) to telescopic (4x)
Integrated back-up iron sights are bore sighted to scope
Eye relief (Cheekweld) and bore sighting remain constant
Large, low light exit pupil remains constant
High efficiency coatings for extended low light performance
Integrated lever-lock mount for optimum weight reduction
Rugged, Reliable Performance
Shock Protected Precision Optics
One Year Warranty
Optional Accessories:
Optional DFOV (Dual Field of View) Accessories:
(MSRP = Mfg Suggested Retail Price /MAP = Minimum Advertised Price)
|
DFOV14 SpecterDR Accessories and Add-Ons |
MSRP |
KERIF $ |
|
ARD-SDR-B |
Anti-Reflection Device SpecterDR 1X-4X, Black |
|
|
|
ARD-SDR-T |
Anti-Reflection Device SpecterDR 1X-4X, Tan |
|
|
|
OSC-SDR-B |
Bikini-Style Lens Cover SpecterDR, 1X-4X, Black |
|
|
|
OSC-SDR-T |
Bikini-Style Lens Cover SpecterDR, 1X-4X, Tan |
|
|
|
MRD-SDR-B |
MRD (Mini Red Dot) Mount Kit, Black |
|
|
|
MRD-SDR-T |
MRD (Mini Red Dot) Mount Kit, Tan (Unavailable) |
N/A |
N/A |
|
PSK-SDR-B |
BUIS (Back-Up Iron Sights) Front & Rear Set, Black |
N/A |
|
|
MRDP-SDR-B |
Auxiliary Picatinny Rail Mount Kit, Black |
|
|
|
SCC-SDR-B |
Soft Carry Case, SpecterDR, Black |
|
|
|
UAC003-FCR |
Objective Flip Cover, SpecterDR 1X - 4X, Black |
|
|
|
UAC013-FCR |
Ocular Flip Cover, SpecterDR 1X - 4X, Black |
|
|
|
SFC-SDR-B |
Flip Cover Kit, Ocular+Obj. SpecterDR 1X - 4X, Black |
|
|
|
|
|
|
|
Doctor Optic Mini Red-Dot Scopes now Available
Call or email for discounted pricing
DRO-MRD-3.5MOA-T, MRD, 3.5 MOA, Bronze
DRO-MRD-7.0MOA-T, MRD, 7 MOA, Bronze
MSRP (Retail Price) = $475.00 (MRD Mount Required)
L-3 Warrior Systems (EOTech) Mini Red-Dot Scopes now Available
2014 MSRP: $489.00 KERIF Price: $459.00 Call or email for discounted pricing
MRD-000-A1 EOTech Mini Red-Dot Sight, 3.5 MOA, Black
MRD-000-A2 EOTech Mini Red-Dot Sight, 3.5 MOA, Tan
(MRD-Mini Red-Dot Mount Required)
2014 MSRP: $629.00 KERIF Price: $599.00 Call or email for discounted pricing
MRD-000-A11 MRD Kit, 3.5 MOA Dot, MIL-STD 1913 Picatinny, Mount/Shroud, Black
MRD-000-A12 MRD Kit, 3.5 MOA Dot, MIL-STD 1913 Picatinny, Mount/Shroud, Tan
(MRD, MRDP Mount or Picatinny Rail Required)
Scopecoat Neoprene Sight Protection now Available
xx = BK-Black / CB-Coyote Brown / DE-Dark Earth / NC-Natural Gear Camo
SC-ELCAN14-xx, Scopecoat, 1X-4X
Longer lengths also available to encompass the ARD
SC-ELCAN14+ARD-xx, Scopecoat, 1X-4X
Longer lengths also available to encompass the ARD and Flip Covers
SC-ELCAN14+ARD+FC-xx, Scopecoat, 1X-4X
We accept Gov't Credit Cards and can submit invoices online
The DFOV14 SpecterDR is a revolutionary optical design that combines the best of close and precision fire ranged combat features into a single, low profile Dual Field-Of-View (DFOV) sight. Unlike typical sights with zoom mechanisms, the SpecterDR offers an optimized optical path and identical eye relief design in both 4X and 1X modes.
SpecterDR with its Dual-Role capability, comes with an integrated LED that illuminates just the center chevron and lets officers move safely through buildings or confined areas, and then switch instantly to (6 MOA) 4X Magnification, illuminating the crosshair for long range, low light use to accurately engage enemies at extended range without changing sights. The reticle itself also has 5 Red LED illumination settings, 2 are NV compatible. When using the 4X Magnification, the ballistic reticle provides aiming marks for various extended ranges. Most ranges are labeled beside the aiming mark. The main horizontal line is intended to provide a reference to the marksman, which coincides with the 100 meter aiming point. This is the range you zero the sight to.
The Vertical Subtention Optical Rangefinder or VSOR allows the marksman to estimate the distance to targets by matching the height of a known object within the Field-Of-View. The vertical distance for range estimation is 76 centimeters or 30 inches. By selecting the set of rangefinder lines that best fit the object, the marksman may read the correct range at the top of the rangefinder. Once the range is known, the marksman may engage targets at the range by aiming from the appropriate ballistic aiming mark in the reticle.
SpecterDR is half the weight and twice the capability of carrying two scopes, without compromise to mission effectiveness or reliability. Attached onto a Mil-Std-1913 Picatinny base with A.R.M.S. throw lever mounts, zeroing is incorporated in the integral mount.
As part of their SOPMOD kit, Naval Surface Warfare Center Crane has purchased ELCAN optical sights under NSN:1240-01-533-0939, designated as the SU-230/PVS-C Articulated Telescope. Situational awareness in both magnifications is improved with Ultra-Wide viewing angles and unmatched viewing in low light conditions.
The SpecterDR sight has two fields of view. The first is a 1X unity powered (reflex type) sight with an extra large 26°FOV (Field-of-View). The sight incorporates an LED illuminated Inverted Chevron reticle. This feature provides the shooter with a "both eyes open", extremely fast target acquisition, close combat sight that is necessary in modern urban warfare. The second is a 4X Magnified sight with a 6.5°FOV (Field-of-View) which provides long-range target identification and precision marksmanship capability out to 600 meters using a bullet drop compensated reticle.
|
DFOV14 SpecterDR System Technical Specifications |
|
Eye Relief
|
● |
70mm |
|
FOV @ 1X
|
● |
26º at 1X, 48.8m (146.3') @ 100yds |
|
FOV @ 4X |
● |
6.5º at 4X, 11.4m (34.2') @ 100yds |
|
Magnification
|
● |
Unity 1X or Telescopic 4X |
|
5.56
|
● |
M4, M16, MK46, M249 |
|
7.62 |
● |
M240, MK43 MK48, M60E4 |
|
Ballistic Correction
|
● |
100 to 600m for 5.56 Carbine |
|
Ballistic Correction
|
● |
up to 1000m for 5.56 LMG |
|
Reticle
|
● |
Dual-Thickness range finding crosshair w/Inverted Chevron |
|
Reticle
|
● |
C3A = 5.56 (CX5400) Ballistic Reticle |
|
Reticle Adj.
|
● |
5 Chevron Brightness Settings Night Vision Compatible |
|
Reticle Adj.
|
● |
5 Crosshair illumination settings Night Vision Compatible |
|
Combat Modes
|
● |
CQB |
|
|
● |
Long Range |
|
|
● |
Machine Gun |
|
|
● |
Iron Sight |
|
Weight
|
● |
1.3 lbs. (580g), 21 oz. |
|
Size in mm
|
● |
153 x 74 x 78 |
|
Size in inches
|
● |
6" x 2.8" x 2.8" |
|
Internal Battery
|
● |
DL 1/3 N, 3V Lithium |
|
Entrance Pupil Dia.
|
● |
28mm |
|
Exit Pupil Dia.
|
● |
8mm |
|
Coaxial Alignment
|
● |
<1.5 MOA between fields |
|
Fixed Focus Range
|
● |
20m to infinity |
|
Adjustment Range
|
● |
120 Minutes of Angle |
|
Adj. Resolution
|
● |
0.5 MOA (Minute of Angle) |
|
Battery Life
|
● |
300 min. to 2000 hours typical |
|
Exterior Finish
|
● |
Anodized Aluminum, Black or Flat Dark Earth |
|
Operating Temp
|
● |
-50°F to +120°F |
|
Waterproof
|
● |
66' for 2 hours |
|
Shockproof
|
● |
450 g's |
The sight can quickly be re-configured to a 4x magnification telescopic scope by moving a lever on the side of the sight. This 4x configuration provides the shooter with long-range target identification, surveillance and with a precision marksmanship capability out to and beyond 600 meters range.
(Click Image to Enlarge)
Combat Modes:
CQB - 1X with Inverted Chevron, Both Eyes Open
Long Range - 4X with Ballistic Drop Reticle
Machine Gun - 4X with Inverted Chevron and Ranging Mount
Iron Sight - Emergency Defense and Heavy Rain
An affordable Weapon Sight designed specifically for Military, Homeland Security, Police and Security Professionals. The uses a bright Red Inverted Chevron for fast Close-Quarters aiming, plus a ranged NSN Reticle for accurate engagement to 600 meters. Built to the same legendary rugged standards as other ELCAN® weapon sighting systems, the DFOV14-C3A is shock and water-resistant and will withstand the forces generated by repeated recoil.
Once sighted-in to a particular weapon, the sight may be interchanged with other ELCAN® optical and electro-optical sights zeroed for the same weapon in a matter of seconds and without noticeable change in point of impact.
Available in Higher Magnification 1.5X to 6X Models
|
ELCAN Dual Field of View 1.5X - 6X SpecterDR, Black
DFOV156-C1 5.56 Reticle (CX5395 Ballistic Reticle)
DFOV156-C2 7.62 Reticle (CX5396 Ballistic Reticle)
INCLUDES ARD (KILLFLASH) & FLIP-COVER SET + New CR2032 Battery Housing
To Order, please call (702) 324-6463 or email
**
ADDITIONAL INCENTIVES AVAILABLE FOR MILITARY/LE & FIRST RESPONDERS
ELCAN Dual Field of View 1.5X - 6X SpecterDR, FDE
DFOV156-T1 5.56 Reticle (CX5395 Ballistic Reticle)
DFOV156-T2 7.62 Reticle (CX5396 Ballistic Reticle)
INCLUDES ARD (KILLFLASH) & FLIP-COVER SET + New CR2032 Battery Housing
To Order, please call (702) 324-6463 or email
*Just announced at 2017 SHOT Show*
**
ADDITIONAL INCENTIVES AVAILABLE FOR MILITARY/LE & FIRST RESPONDERS
|
Also Available in a Less Expensive Single Field of View 4X
|
ELCAN SpecterOS4 Combat Optical Sight, 4X, Black IN STOCK
SFOV4-A1 5.56 (CX5755 Dual Illuminated Ballistic Chevron)
SFOV4-C1 5.56 (CX5855 Dual Illuminated Ballistic Crosshair)
MSRP: $1,465.00 ON SALE: $999.00
INCLUDES ARD (KILLFLASH) & Scopecoat
To Order call (702) 324-6463 or email
**
DISCOUNTS AVAILABLE FOR MILITARY/LE
|
ELCAN Dual Field of View 1X - 4X SpecterDR, Black
Articulated Telescope SU-230/PVS-C (5.56) *Sold Out, Sorry*
NO COMMERCIAL SALES U.S. Military Only
ACCESSORIES: Black Soft Case, Bikini-Style Lens Cover, Lens Cleaning Kit, 3V Lithium Battery, and OPMAN
*The Ultimate CQB Sight Kit*
NSN: 1240-01-533-0939 SOF Overrun
FDE Sights now available in 1X - 4X Configuration
|
ELCAN SpecterDR deployed to US Special Operations and Navy Seals
Development of the SpecterDR 1-4x:
In 2003 the US SOCOM started to upgrade its fire control accessories for the M4 Carbine. The key technological objective for the day optic was to provide not only a long-range deliberate aiming capability, but also a short range, positive, rapid aiming capability for Close Quarters Battle
in a single sight a critical issue in urban combat.
Raytheon ELCAN Optical Technologies met this need by proposing and demonstrating the SpecterDR dual role rifle sight, a high performance switch-able 1x- 4x dual-field-of-view (DFOV) combat optic. Its potential established, Raytheon ELCAN incorporated user feedback driven spiral improvements that resulted in a series of design features that made the SpecterDR dual role combat sight match the operational needs of soldiers better than any competitive offering. Clever design and rigorous testing further optimized how the sight performed as a subsystem of the weapon.
In full and open competition with 5 Operational Trials against alternative sighting solutions, the SpecterDR dual role weapon sight was awarded 100% of the SOPMOD production requirements. Users favored the SpecterDR dual role 9-to-1 over any competitive offerings while test data showed that it outperformed legacy solutions. By achieving the SOCOM objective, the SpecterDR dual role weapon sight has eliminated the need to switch between sights in-combat by combining for the war fighter a true unity (1.0X) power for both eyes open close combat, and 4X magnification for precision aiming combat in a single light weight package.
In addition to the day operation benefits, the SpecterDR dual role combat sight has also allowed SOCOM to achieve the full benefits of its Clip-On Night Vision Device (CNVD) strategy. Operators are vulnerable when they are switching between optics and the act of switching also always carries the risk of impairing bore sight accuracy. Using a CNVD eliminates the need to switch between a day optic and a night vision sight since the CNVD simply clips-on in front of the day optic. With the SpecterDR dual role weapon sight, operators now never need to switch between optics and they never have to second guess about their weapon system accuracy. SpecterDR is given the designation SU-230/PVS in the SOPMOD Block 2 kit.
As an integrated component of the next generation of advanced observation and civil defense requirements, the SU-230/PVS-C exemplifies the commitment to ongoing product development and optical excellence at ELCAN Optical Technologies. ELCAN is part of the Raytheon Commercial Electronics group of companies.
In "High-Risk" security applications (Nuclear Plants, Oil Refineries and Pipelines, Water Treatment Plants, Port Authorities, Penitentiary Facilities), government law enforcement agencies can more effectively locate, identify and neutralize hostile threats with reduced risk.
