KNV-SFK-14 (AN/PVS-14) Night Vision Monocular Kit
Call (702) 324-6463 for Gov't
Discounted Pricing
MILSPEC Kits Include:
Head Mount
Assembly w/Brow Pads, J-Bar (Swing Arm Assembly), MILSPEC 27mm Objective Lens, Rubber Eyecup,
2 AA Batteries,
Operators Manual, Soft Case w/Carrying Strap, Daylight Lens Cover,
Integrated IR LED, Foam Padded Hard Shipping/Storage Case,
Slip-On Magnetic Compass, Lens Cleaning Tissue,
IR Beacon, Demist Shield, Sacrificial
Filter, Fixed Height Weapon Mount, Shuttered Rubber Eyeguard, Flip-up
Helmet Mount (MICH or PASGT)
Federal Government Orders add IFF-980S & Light
Interference Filter (LIF)
Private labeling options available for large quantity orders
We
accept all forms of Gov't payment, including WAWF, CAGE:
36BD2, Dealers Welcome
Full MILSPEC KNV-SFK14-P+ Kit Shown Below
The
AN/PVS-14
uses only the highest quality
L-3 "Auto-Gated" or ITT "Pinnacle" Image Tubes, specifically rated
to meet the OMNI specs
demanded by our Military and Law Enforcement
Professionals. Full catalog Spec OMNI-V, OMNI-VI, OMNI-VII, and even
proprietary Unfilmed Gen 4 Systems from L-3 are available,
and we include Factory Data Sheets at no extra charge.
The
AN/PVS-14
is a hand-held pocket scope
that can also be head-mounted using either left or right eye.
With everything a soldier needs in one cohesive kit.
This
Full MILSPEC
AN/PVS-14
Monocular Kit from KERIF Night Vision uses only the highest quality
Optical Lenses, Electronics, and Housing Components
on the
market today. Electro-Optical tools designed specifically to meet the
diverse demands of our rugged Military and Law Enforcement
Professionals. Like buying a car, you have many features
like engine, transmission, and suspension
that can make it a stock model or a high performance
machine. With little differences on the outside to discern
between the good, bad & the ugly, you have to read &
understand the build sheet or take the salesman's word for
it. We give you the Factory Data Sheet and in some
instances, let you take a test drive.
Differences like the clarity of the optical lenses
versus just glass; whether the components used in the power supply &
electronics package are made in the U.S. or overseas or if
they are new or used; whether you want the housing made in
the USA that meets MILSPEC
standards with rubber seals that allows submersion without worry, or something made in China that you
can't splash with water; you want to be sure that when using your Helmet Mount,
the housing has brass screws (not plastic or other cheap
metal) to
automatically turn the unit On/Off, saving your batteries
and reducing the step of turning it back on in an
emergency.
Larger differences like the tubes (engines) can be
selected to meet your needs, and with our access to
virtually every system available, we will do our best to
meet or exceed your expectations, without breaking your
budget. Just like a car, even if you have a big block with
ungodly horsepower, you still have to have other
components designed to match its performance potential.
You wouldn't put an Indy Car Race Engine in a Smart Car, yet
some manufacturers do just that to gain the competitive
pricing edge and you are the one stuck wondering why you
didn't call us.
Let's talk about some of the uses of the
AN/PVS-14 Monocular.
The most common use is as a hand-held pocket scope
that easily fits inside a BDU (Battle Dress Uniform)
Pocket, or jacket pocket and is used for walking around &
area surveillance.
TIP: By maintaining one eye to the darkness, while using
the monocular exclusively with other, will help prevent
"Night Blindness" caused by molecules called
"Rhodopsin". The Rod of your eye undergoes a change in shape as
it absorbs light. Rhodopsin is the chemical that allows natural
Night-Vision, and is extremely sensitive. When exposed to a
spectrum of light, the pigment immediately bleaches and takes
about 30 minutes to regenerate fully, although most of the
adaptation occurs within the first five or ten minutes in the
dark. Rhodopsin in the human rods is less sensitive to the
longer red wavelengths of light, so many people use red light to
help preserve night vision as it only slowly depletes the eye's
Rhodopsin stores in the rods and instead is viewed by the cones. One of the best features of the PVS-14 style
Monocular is the Variable Gain Control Knob that
works in conjunction with the Automatic Brightness
Control to adjust the image
for you to see it properly, without blasting
your pupil into submission.
These are a few of the main drawbacks of the PVS-7 Type Goggles, because both eyes are stimulated with a bright green image that can't be adjusted beyond what the Automatic Brightness Control offers, and when the goggles are removed, you may have difficulty seeing anything for several minutes. That could prove fatal if driving, flying, or engaged in CQB operations.
For
prolonged use, a Headmount can be priceless. By
using the chin straps and head straps, each unit allows for vertical
& fore-and-aft adjustments for either left or right eye. For clear images, the objective lens and eyepiece
(Diopter) focus for various levels of vision enhancement.
Automatic Brightness Control and Bright
Source Protection are standard.
The PVS-14 is also equipped with a built-in infrared
light-emitting source and the variable gain control allows the user
to increase or decrease image brightness for best possible contrast.
Don't overlook the importance of having additional
Infrared Lights to enhance the visibility of longer ranged
targets, covertly light up dark overhangs and blind
corners, and even mark positions, vehicles, personnel and
other points of interest by using field programmable
beacons.
Lights that are weapons Mountable, like the Surefire
Vampire and others can be outfitted with IR Filters and
pressure switches.
|
|
hand held |
head mount |
camera mount |
1 eye |
2 eyes |
weapon mount |
short range |
medium range |
long range |
|
ENVIS |
X |
|
X |
X |
|
|
X |
|
|
|
X |
X |
|
|
X |
|
X |
|
|
|
|
AN/PVS-5 |
|
X |
|
|
X |
|
X |
|
|
|
|
|
|
X |
|
X |
|
X |
|
|
|
|
|
|
X |
|
X |
|
|
X |
|
|
AN/PVS-14 |
X |
X |
X |
X |
|
X |
X |
|
|
|
X |
|
|
|
X |
|
|
|
X |
|
|
PVS-7 w/ 3X |
X |
X |
|
|
X |
|
|
X |
|
|
PVS-7 w/ 5X |
X |
|
|
|
X |
|
|
|
X |
Range
Tests showed significant clarity and sturdiness when mounted on
Military 5.56 Rifles. This versatile Night Vision System
enables walking, driving, weapon firing, short-range surveillance
and map reading in both moonlight or starlight conditions. When used
as a Night Vision Weaponsight, you can use the standard Fixed Height
Mount and the front iron sight to aim, but to increase accuracy and
combat effectiveness, you'll still need something else to help you aim.
The
easiest, but typically the most expensive way is to use
LASER's mounted to the top or
side of your weapon and sighted in. KERIF Night Vision is proud to
offer several variations of LASER Aiming Systems that are guaranteed
to work for your setup. Please call for more details on what Laser
systems may be available to you since some are Restricted to Federal
Agencies only and require End User Agreements.
If you need to increase your range capabilities periodically, and
still want that CQB set-up for close range situations, the SpecterDR
(Dual-Role) Optical Sights from ELCAN
are designed to work with Night Vision and offers you the option of
either 1X to 4X Magnification or 1.5 to 6X, in addition to a Red Dot
Center Point, and Ballistic Ranged Reticle (in either 5.56 or 7.62*
weapon types).
*Some Pinnacle or Thin Filmed PVS-14's aren't
recommended to use above 5.56 caliber weapon types unless you have a
"Weapons Grade Tube" installed. Recoil of high caliber weapon sometimes create a
"Blooming Effect" or Spots to appear, and may eventually render the
tube inoperable, and void your warranty.
Another method that can pinpoint a target, using 1X (no
magnification) is to combine the PVS-14 Night Vision Monocular with
an Aimpoint Red Dot Sight or an
EOTech
Holographic Sight, either mounted directly behind the Sight or Head-Mounted for
continual visual enhancement and approach the sight as necessary.

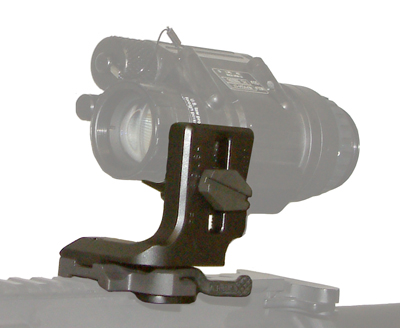

The
PVS-14 may need an Adjustable Height mount, like
the M69 to properly align the optical centers to maximize the Field
of View or you could use one of the newer DLOC-P14 Weapons Mount
that allows you to keep the Swing Arm Assembly attached, thereby
reducing the time required to change mounts.
Aimpoint and EOTech both offer additional magnifier
options. This SFK-14 Kit includes a Fixed-Height Weapons Mount and a
Shuttered Eyeguard for use as a standard Weaponsight. If you
anticipate using an Aimpoint, EOTech or other sight that may
need some alignment adjustments, please ask about the DLOC-P14, M69 or
other Mounts that are available when ordering.
For
Hand-Held use, you can attach a 3X Afocal Magnifier to increase
your recognition and detection ranges. When you increase the
magnification, you reduce the available 40˚FOV (Field-of-View)
down to a 13˚FOV, which understandably equates to 1/3 of the
PVS-14's capabilities. The 5X Afocal Magnifier reduces the FOV to
7.7˚(1/5 of the image), so you have to have a steady hand, a resting
spot or a Tripod to fix on an object.
TIP: They
are NOT recommended for use with Head/Helmet Mount applications
because of the weight.
Magnifiers usually
include a Slip-On Adapter that
allows you to quickly install them on the objective end and remove
it instantly when necessary.
TIP: If you aren't going to be standing
still or making moderate movements, we recommend you thread the
magnifier into the objective to prevent it from accidentally falling
off and breaking.
Both magnifiers are interchangeable with PVS-7 Goggles and similar
NVD's with 27mm Objective Lenses.
You can trust KERIF Night Vision to give you the most for your money and to be there for you should something go wrong. We don't just sell you a product, then wish you well; we take the time to talk with you personally on the phone, before, during, and after the sale to make sure you are 100% satisfied, not 99.99%! Yes, we answer our phones and respond to emails almost immediately. Don't hesitate to draw on our real world Military, Federal SWAT, and Law Enforcement experience, coupled with Technical Engineering, Infrared Lighting and Night Vision backgrounds to figure out the best solution to your problem. If we don't have what you need, we will do our best to find you a company that does.
| System Technical Specifications | ||
|
Tube Type
|
● | MX-11769, 18mm F9815, Gen 3 |
|
Eye Relief
|
● | 25mm |
|
FOV @ 1X
|
● | 40º (13° w/optional 3X Magnifier) (7.7° w/optional 5X Magnifier) |
|
Magnification
|
● | 1X (Optional 3X and 5X Magnifiers) |
|
Fixed Focus Range
|
● | 25cm to ∞ (infinity) |
|
Weight
|
● | 14 oz. |
|
Size in inches
|
● | 2.25" x 2.5" x 5" |
|
Diopter Focus
|
● | +2 to -6 Diopter's |
|
Battery Source
|
● | (1) AA |
|
Battery Life
|
● | 40-50 hours typical |
|
Integrated IR LED
|
● | Yes |
|
Auto Bright Control
|
● | Yes |
|
High Light Cutoff
|
● | Yes |
|
Low Battery Indicator
|
● | Yes |
|
Variable Gain
|
● | Yes |
|
Headmount Assembly
|
● | Yes |
|
Soft Case
|
● | Yes |
|
Operating Temp
|
● | -51°C to +49°C |
|
Storage Temp
|
● | -51°C to +85°C |
|
Illumination Required
|
● | Overcast starlight to moonlight |
MILITARY USES:
The AN/PVS-14 is
utilized by ground troops for situational awareness, detection of threats
and targets. Also used in combination with 3X or 5X Magnifiers for short,
medium, or long range surveillance at night. Users can operate covertly
under the cover of darkness.
Law Enforcement Uses:
The
AN/PVS-14 is utilized by officers or agents for situational awareness,
detection of threats and targets or long range surveillance in ground and
tactical operations.
Security Uses:
Security
personnel use the AN/PVS-14 for general situational awareness, detection of
approaching threats and targets.
Also used in combination with 3X or 5X
Magnifiers for short, medium, or long range surveillance at night.
| ITT Systems | ITT Night Enforcer PVS-14, 64-72 lp/mm, Variable Gain |
| 207117-1 | F6015C/F9815C - AN/PVS-14, OMNI-3 |
| 207117-2 | F6015J/F9815J - AN/PVS-14, FOM1250 |
| A3256337 | F6015K/F9815K - AN/PVS-14, OMNI-4 MILSPEC (Includes Helmet Mount-A3256368) |
| A3256337-5 | F6015L/F9815L - AN/PVS-14, OMNI-5 MILSPEC |
| 270609 | F6015P/F9815P - AN/PVS-14, FOM1600 (NATO countries only on Export) |
| A3256337-8 | F6015UG/F9815UG - AN/PVS-14, Pinnacle, Thin-filmed, Auto-Gated Power Supply |
| A3256337-9 | F6015VG/F9815VG - AN/PVS-14, Pinnacle, Thin-filmed, Auto-Gated Power Supply |
| 274769-1 | F6015JA/F9815P - AN/PVS-14, FOM1250 Single Battery - Exportable to NON-NATO Countries |
| 274769-2 | F6015PA/F9815P - AN/PVS-14, FOM1600 Single Battery (NATO countries only on Export) |
| Gen 3 FOM (Figure of Merit) PVS-14/6015 Monocular's | |
| FOM Kit Includes: | Headmount Assembly w/Brow Pads, Swing Arm, Sacrificial Filter, Demist Shield, Soft Case, Daylight Lens Cap, Shoulder Strap, Rubber Eyecup, IR LED, (2) AA Batteries, and Lens Cleaning Tissue |
| KNV-PVS14-1250 | ITT Exportable PVS-14 Monocular, FOM1250, Tube/System Data Sheet, FOM Kit |
| KNV-PVS14-1400 | ITT Exportable PVS-14 Monocular, FOM1400, Tube/System Data Sheet, FOM Kit |
| KNV-PVS14-1600 | ITT Exportable PVS-14 Monocular, FOM1600, Tube/System Data Sheet, FOM Kit |
| KNV-PVS14-CFA | L-3 Exportable PVS-14 Monocular FOM1600, No Data Sheet, FOM Kit |
| KNV-PVS14-CFB | L-3 Exportable PVS-14 Monocular FOM1400, No Data Sheet, FOM Kit |
| KNV-PVS14-MFA |
L-3
Exportable M814-CS1600,
FOM1600 PVS-14 Monocular, 64 lp/mm, Variable Gain,
"A" Grade, 21:1 SNR, 1500 Photocathode, 5.0 EBI Max, Data Sheet, FOM Kit |
| KNV-PVS14-MFB |
L-3
Exportable M814-CS1400, FOM1400 PVS-14 Monocular 57 - 64 lp/mm, Variable Gain,
"B" Grade 18:1 SNR, 1350 Photocathode, 5.0 EBI Max, Data Sheet, FOM Kit |
| Gen 3 MIL-SPEC Auto-Gated or "Pinnacle" PVS-14 Monocular's | |
| PVS14-Kit-M1 Includes: | A3144268 Headmount Assembly w/(S, M, L) Brow Pads, A3256347 Swing Arm, A3144264 Sacrificial Filter, A3256353 Demist Shield, A3187392 Soft Case, A3144318 Lens Cap, A3144267 Shoulder Strap, A3144422 Rubber Eyecup, A3256345 Shuttered Eyeguard, A3256348 Weapons Mount, (2) AA Batteries, Operator Manual & Lens Cleaning Tissue |
| SFK14-Kit-M1 ADDS: | Hard Case, Magnetic Compass, MICH Helmet Mount, Glow Tape, IR Beacon |
| F6015YGA | OMNI-VII MIL-SPEC |
| A3256337-20 | ITT MIL-SPEC AN/PVS-14 Monocular, Tube/System Data Sheets, PVS14-Kit-M1 |
| YG MIL-SPEC | PR = 1800 MIN, EBI = 2.5 MAX, SNR = 25.0:1, RES = 64 lp/mm MIN |
| KNV-SFK14-YG | ITT MIL-SPEC AN/PVS-14 Monocular, Tube/System Data Sheets, PVS14-Kit-M1, SFK14-Kit-M1 |
| KNV-PVS14-YG | ITT MIL-SPEC AN/PVS-14 Monocular, Tube/System Data Sheets, PVS14-Kit-M1 |
| VG MIL-SPEC | PR = 2000 MIN, EBI = 2.5 MAX, SNR = 25.0:1, RES = 64 lp/mm MIN |
| KNV-SFK14-VG | ITT MIL-SPEC AN/PVS-14 Monocular, Tube/System Data Sheets, PVS14-Kit-M1, SFK14-Kit-M1 |
| KNV-PVS14-VG | ITT MIL-SPEC AN/PVS-14 Monocular, Tube/System Data Sheets, PVS14-Kit-M1 |
| ULTRA MIL-SPEC | PR = 2400 MIN, EBI = 1.0 MAX, SNR = 28.0:1, RES = 64 lp/mm MIN |
| KNV-SFK14-ULT | ITT MIL-SPEC AN/PVS-14 Monocular, Tube/System Data Sheets, PVS14-Kit-M1, SFK14-Kit-M1 |
| KNV-PVS14-ULT | ITT MIL-SPEC AN/PVS-14 Monocular, Tube/System Data Sheets, PVS14-Kit-M1 |
| Gen 3 Auto-Gated or "Pinnacle" PVS-14 Monocular's | |
| Standard Kit Includes: | A3144268 Headmount Assembly w/(S, M, L) Brow Pads, A3256347 Swing Arm, A3144264 Sacrificial Filter, A3256353 Demist Shield, A3187392 Soft Case, A3144318 Lens Cap, A3144267 Shoulder Strap, A3144422 Rubber Eyecup, (2) AA Batteries, Operator Manual & Lens Cleaning Tissue |
| KNV-PVS14-CAG | L-3 Thin-Filmed Auto-Gated PVS-14 Monocular, STD Kit |
| KNV-PVS14-MAG |
L-3 M814-CS001 MILSPEC Thin-Filmed Auto-Gated PVS-14 Monocular 64 lp/mm,
STD Kit 21:1 SNR (Min), 1800 Photocathode (Min), 2.5 EBI (Max) |
| KNV-PVS6015-MAG | L-3 Gen 4 MILSPEC UNFILMED Auto-Gated PVS-6015 Monocular 64-72 lp/mm, NO Variable Gain |
| KNV-PVS14-P- |
ITT PVS-14
Monocular, Thin-Filmed Auto-Gated
"Pinnacle" STD Kit + Weapon Mount &
Shuttered Eyeguard Photoresponse = 1350 MIN, EBI = 2.5 MAX, Signal-to-Noise = 16.2:1, Resolution = 57 lp/mm MIN |
| KNV-PVS14-PM- |
ITT PVS-14
Monocular, Thin-Filmed Auto-Gated
"Pinnacle" STD Kit Photoresponse = 1350 MIN, EBI = 2.5 MAX, Signal-to-Noise = 16.2:1, Resolution = 57 lp/mm MIN |
| KNV-PVS14-P |
ITT PVS-14
Monocular, Thin-Filmed Auto-Gated
"Pinnacle" STD Kit + Weapon Mount &
Shuttered Eyeguard Photoresponse = 1500 MIN, EBI = 2.5 MAX, Signal-to-Noise = 18.0:1, Resolution = 57 lp/mm MIN |
| KNV-PVS14-PM |
ITT PVS-14
Monocular, Thin-Filmed Auto-Gated
"Pinnacle" STD Kit Photoresponse = 1500 MIN, EBI = 2.5 MAX, Signal-to-Noise = 18.0:1, Resolution = 57 lp/mm MIN |
| KNV-PVS14-P+ |
ITT PVS-14
Monocular, Thin-Filmed Auto-Gated
"Pinnacle" STD Kit + Weapon Mount &
Shuttered Eyeguard Photoresponse = 1750 MIN, EBI = 2.5 MAX, Signal-to-Noise = 20.0:1, Resolution = 64 lp/mm MIN |
| KNV-PVS14-PM+ |
ITT PVS-14
Monocular, Thin-Filmed Auto-Gated
"Pinnacle" STD Kit Photoresponse = 1750 MIN, EBI = 2.5 MAX, Signal-to-Noise = 20.0:1, Resolution = 64 lp/mm MIN |
| SFK-14 (Soldiers Field or Special Forces Kit) Monocular Upgrade Kit | |
| Standard Kit Includes: | A3144268 Headmount Assembly w/(S,M,L) Brow Pads, A3256347 Swing Arm, A3144264 Sacrificial Filter, A3256353 Demist Shield, A3187392 Soft Case, A3144318 Lens Cap, A3144267 Shoulder Strap, A3144422 Rubber Eyecup, (2) AA Batteries, Operator Manual & Lens Cleaning Tissue |
| SFK Kit Includes: | Adds A3264350 Padded Hard Shipping Case, A3256348 Fixed Height Weapon Mount, A3187430 Magnetic Compass, A3256345 Shuttered Eyeguard, A3256368 (PASGT or MICH) Helmet Mount w/Chin Strap, IR US GloTape Flag, and "Phoenix-Jr" IR Beacon (5009737 LIF added for DOD orders ONLY) |
|
KNV-SFK14 MILSPEC AN/PVS-14 |
L-3 M814-CS001 MILSPEC Thin-Filmed Auto-Gated PVS-14 Monocular 64 lp/mm,
STD Kit + SFK Kit Photoresponse = 1800 MIN, EBI = 2.5 MAX, Signal-to-Noise = 21:1, Resolution = 64 lp/mm MIN |
|
KNV-SFK14-P+ MILSPEC AN/PVS-14 |
ITT PVS-14
Monocular, Thin-Filmed Auto-Gated
"Pinnacle" STD Kit + SFK Kit Photoresponse = 1750 MIN, EBI = 2.5 MAX, Signal-to-Noise = 20.0:1, Resolution = 64 lp/mm MIN |
| KNV-SFK14-CUSTOM |
 Mix
and Match a custom kit to fit your needs. You tells us what you
want and we'll create the kit.Aimpoint Red Dot Sights Clip-On Night Vision Devices EOTech Holographic Sights ELCAN Optical Sights Infrared Beacons, Flashlights and Spotlights Laser Aiming Systems |
|
PSK-14 (Photography
& Surveillance Kit) Monocular Upgrade Kit Choose a PVS-14 Model then choose from one of the kits below |
|
| PSK-3 | Adds 3X Afocal Magnifier A3256391, Camera Adapter Assembly 274049-1, Padded Hard Case A3264350, 52101 Guardian Infrared Beacon, and Infrared Illuminator |
| PSK-3T | Adds Adjustable Tripod, 3X Afocal Magnifier A356391, Camera Adapter Assembly 274049-1, Padded Hard Case A3264350, 52101 Guardian Infrared Beacon, and Infrared Illuminator |
| PSK-5 | Adds 5X Afocal Magnifier 275095, Camera Adapter Assembly 274049-1, Padded Hard Case A3264350, 52101 Guardian Infrared Beacon, and Infrared Illuminator |
| PSK-5T | Adds Adjustable Tripod, 5X Afocal Magnifier 275095, Camera Adapter Assembly 274049-1, Padded Hard Case A3264350, 52101 Guardian Infrared Beacon, and Infrared Illuminator |
| PSK-35 | Adds 3X Afocal Magnifier A3256391, 5X Afocal Magnifier 275095, Camera Adapter Assembly 274049-1, Padded Hard Case A3264350, 52101 Guardian Infrared Beacon, and Infrared Illuminator |
| PSK-35T |
Adds
Adjustable Tripod,
3X Afocal Magnifier A3256391,
5X Afocal Magnifier 275095. Camera Adapter Assembly 274049-1, Padded Hard Case A3264350, 52101 Guardian Infrared Beacon, and Infrared Illuminator |
| PSK-CUSTOM | Mix and Match a custom kit to fit your needs. You tells us what you want and we'll create the kit. |
|
HFK-14 (Hunters
Field Kit) Monocular Upgrade Kit Choose a PVS-14 Model then choose from one of the kits below |
|
| Standard Kit Includes: | A3144268 Headmount Assembly w/(S,M,L) Brow Pads, A3256347 Swing Arm, A3144264 Sacrificial Filter, A3256353 Demist Shield, A3187392 Soft Case, A3144318 Lens Cap, A3144267 Shoulder Strap, A3144422 Rubber Eyecup, (2) AA Batteries, Operator Manual & Lens Cleaning Tissue |
| HFK-1 | Adds A3264350 Padded Hard Shipping Case, A3256348 Fixed Height Weapon Mount, A3256345 Shuttered Eyeguard, and 52101 Guardian IR Beacon |
| HFK-2 | Adds A3264350 Padded Hard Shipping Case, M69 Adjustable Height Weapon Mount, A3256345 Shuttered Eyeguard, and 52101 Guardian IR Beacon |
| HFK-3 | Adds A3264350 Padded Hard Shipping Case, DLOC-P14 Weapon Mount, A3256345 Shuttered Eyeguard, and 52101 Guardian IR Beacon |
| HFK-CUSTOM |
Mix
and Match a custom kit to fit your needs. You tells us what you
want and we'll create the kit. Aimpoint Red Dot Sights Clip-On Night Vision Devices EOTech Holographic Sights ELCAN Optical Sights Infrared Beacons, Flashlights and Spotlights Laser Aiming Systems |
| HFK-x-AIM-M2 | Choice of HFK-1, HFK-2 or HFK-3 Kits above PLUS Aimpoint CompM2 Red Dot Sight |
| HFK-x-AIM-M3 | Choice of HFK-1, HFK-2 or HFK-3 Kits above PLUS Aimpoint CompM3 Red Dot Sight |
| HFK-x-AIM-M4 | Choice of HFK-1, HFK-2 or HFK-3 Kits above PLUS Aimpoint CompM4 Red Dot Sight |
| HFK-x-AIM-T1 | Choice of HFK-1, HFK-2 or HFK-3 Kits above PLUS Aimpoint Micro T1 Red Dot Sight |
| HFK-x-ELC4-A1 | Choice of HFK-1, HFK-2 or HFK-3 Kits above PLUS ELCAN SFOV4-A1 Optical Sight 5.56 Chevron Reticle |
| HFK-x-ELC4-C1 | Choice of HFK-1, HFK-2 or HFK-3 Kits above PLUS ELCAN SFOV4-C1 Optical Sight 5.56 Crosshair Reticle |
| HFK-x-ELC14-C1 | Choice of HFK-1, HFK-2 or HFK-3 Kits above PLUS ELCAN DFOV14-C1 Optical Sight 5.56 Reticle, Black |
| HFK-x-ELC14-T1 | Choice of HFK-1, HFK-2 or HFK-3 Kits above PLUS ELCAN DFOV14-T1 Optical Sight 5.56 Reticle, FDE |
| HFK-x-ELC156-C1 | Choice of HFK-1, HFK-2 or HFK-3 Kits above PLUS ELCAN DFOV156-C1 Optical Sight 5.56 Reticle, Black |
| HFK-x-EOT-557 | Choice of HFK-1, HFK-2 or HFK-3 Kits above PLUS EOTech 557 Holographic Sight |
| HFK-x-EOT-556 | Choice of HFK-1, HFK-2 or HFK-3 Kits above PLUS EOTech 556 Holographic Sight |
| HFK-x-EOT-555 | Choice of HFK-1, HFK-2 or HFK-3 Kits above PLUS EOTech 555 Holographic Sight |
| HFK-x-EOT-553 | Choice of HFK-1, HFK-2 or HFK-3 Kits above PLUS EOTech 553 Holographic Sight |
| HFK-x-EOT-552 | Choice of HFK-1, HFK-2 or HFK-3 Kits above PLUS EOTech 552 Holographic Sight |
| HFK-x-EOT-551 | Choice of HFK-1, HFK-2 or HFK-3 Kits above PLUS EOTech 551 Holographic Sight |
 KNV-NVAC-126
Dual Mount Adapter, PVS-14, Dovetail
$358.80 / Gov't: $351.33 KNV-NVAC-126 Dual Mount Adapter, PVS-14, Wilcox Interface $456.00 / Gov't: $446.50 Combines 2 PVS-14 Monoculars together to create a Binocular. |
 A3256345
Shuttered
Rubber Eyeguard
(Compress w/Star Opening)
$39.00 / Gov't: $37.50 NSN: 6650-01-444-1229 Prevents "Green Glow" from illuminating the shooters face for covert operations. |
 A3144422
Rubber Eyecup
$12.75
/ Gov't: $11.99NSN: 5855-01-246-8273 Provides a comfortable platform for your eye. Flexible rubber |
 A3144318
Daylight Lens Cover
(Objective Cover)
$15.99
/ Gov't: $14.99NSN: 5340-01-397-6608 Prevents objective lens from getting damaged and a small pinhole in the center allows you to check the system during daylight conditions |
 A3256353
Demist Shield (Eye
piece)
$17.50
/ Gov't: $16.50NSN: 5340-01-293-8675 Prevents eyepiece from fogging up |
|
|
  A3144264
Sacrificial Filter
$32.00
/ Gov't: $29.00NSN: 5855-01-240-8271 Slip-On cover protects the Objective Lens from dirt and debris |
  A3187430
Magnetic Compass
$104.00
/ Gov't: $99.00NSN: 5855-01-381-6052 Gives a directional display superimposed within the Night Vision Image |
  274049-1 Camera Adapter Assembly
46mm to PVS14 Eyepiece $42.00 / Gov't: $41.00 NSN: 4310-01-096-1353 |
  KNV-PVS14-HDMT-Kit
Headmount + PVS-14 Swing Arm
Interface
$159.00
/ Gov't: $149.00Headmount plus Headmount Adapter. Attaches to the NVG and interfaces w/the Head Mount. |
 A3256347
Swing Arm or "J-Bar"
$81.00
/ Gov't: $77.00
NSN: 5965-01-444-1216Head Mount & Helmet Mount Adapter. Attaches to the NVG and interfaces w/the Head Mount/Helmet Mount. |
|
|
 A3256368-1
PASGT Flip-up Helmet Mount
$215.00
/ Gov't: $207.50NSN: 5855-01-457-2953 |
 A3256368-2
MICH Flip-up Helmet Mount
$215.00
/ Gov't: $207.50NSN: 5855-01-551-4525 |
 275121-2
Facemask Assembly
$822.25
/ Gov't: $804.38NSN: 5855-01-515-2102
1728010-2
Facemask Assembly
$395.53
/ Gov't: $395.53 |
  A3264350
Padded Hard Case, OD Green
$88.40
/ Gov't: $85.00 |
 A3144257
Padded Hard Case, Military, OD
Green
$109.00NSN: 5855-01-246-6805 |
 A3187392
Soft Carry/Storage Case, Military, OD Green
$29.95
/ Gov't: $21.95NSN: 5855-01-246-8269 or 5855-01-398-4284 |
|
A3256391
MILSPEC 3X
Magnifier f/1.5, FOV:13º
$420.00
/ Gov't:
$411.25 NSN: 5855-01-461-2741 or 5855-01-423-0817
KNV-3X-Lens
Commercial 3X
Lens f/1.5, FOV:13º
$228.00
/ Gov't: $223.25 |
 275095
MILSPEC 5X
Magnifier f/2.4, FOV:7.7º
$1,188.00
/ Gov't: $1,163.25NSN: 5855-01-391-7026 or 5855-01-511-8594
KNV-5X-Lens
Commercial 5X
Lens f/2.4, FOV:7.7º
$455.00
/ Gov't: $437.50 |
  DLOC-P14
Quick-Disconnect Weapons Mount
$173.00 / Gov't: $167.00 Allows the Swing Arm Assembly and the DLOC-P14 to remain attached without wasting time switching them. Left or Right Hand Operation can be achieved simply by turning the locking ring 180°on the base. Aligns perfectly with the Aimpoint (ARMS#22 w/Spacer) or EOTech Holographic Sights. |
|
|
|
(Click images to enlarge)
|
|
|
  A3256348
Fixed Height
Weapons Mount
$92.00 / Gov't: $89.00 NSN: 5340-01-446-8588 |
 PVS-14-Kit-1:
PVS-14 Body (NO TUBE),
Lens Cap, Neck
Cord, Rubber Eyecup
$690.00PVS-14-Kit-2: PVS-14 Body (NO TUBE), Lens Cap, Neck Cord, Rubber Eyecup, Soft Case, Headmount Kit, Batteries, OPMAN, Sac. Window, Demist Shield, $810.00 PVS-14-Kit-3: PVS-14 Body (NO TUBE), Lens Cap, Neck Cord, Rubber Eyecup, Soft Case, Headmount Kit, Batteries, OPMAN, Sac. Window, Demist Shield, Shuttered Eyeguard, A3256348 Weapon Mount, Lens Paper, $870.00 PVS-14-Kit-4: PVS-14 Body (NO TUBE), Lens Cap, Neck Cord, Rubber Eyecup, Soft Case, Batteries, OPMAN, Sac. Window, Demist Shield, Lens Paper, Shoulder Strap, $801.00
HFK-14-Kit-1
(Hunter's Field Kit):
Padded Hard Case,
Shuttered Eyeguard,
Fixed Height Weapon Mount,
Guardian IR Beacon
$181.35
Substitute A3256368 Mount for DLOC-P14 Mount
ADD $81.00 |
Home | Contact Us | About KERIF | Export Regulations | How to Order
(702) 324-6463 / (702)
869-8451 FAX
sales@nitevis.com or kerifnightvision@earthlink.net
